ECTS #2
- Disconnect the battery negative (-) terminal.
- Drain the engine coolant.
(Refer to Engine Mechanical System - "COOLANT ")
- Remove the intake manifold.
(Refer to Engine Mechanical System - "INTAKE MANIFOLD ")

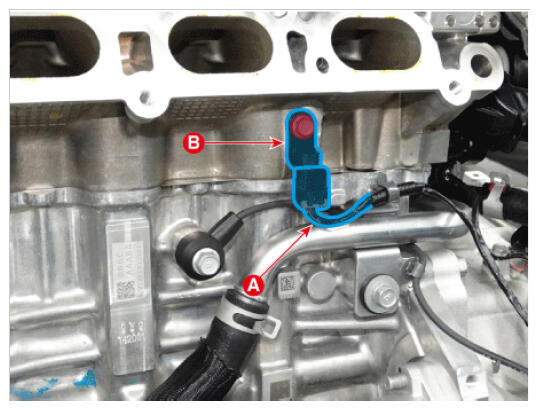

- Disconnect the Engine Coolant Temperature Sensor (ECTS) connector (A).
- Remove the Engine Coolant Temperature Sensor (ECTS) (B) after removing the bolt.
Tightening torque :
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
