Engine Control System - 2.0
>>
Variable Force Solenoid (VFS)
>>
Components And Components Location
>>
Components Location
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Components Location

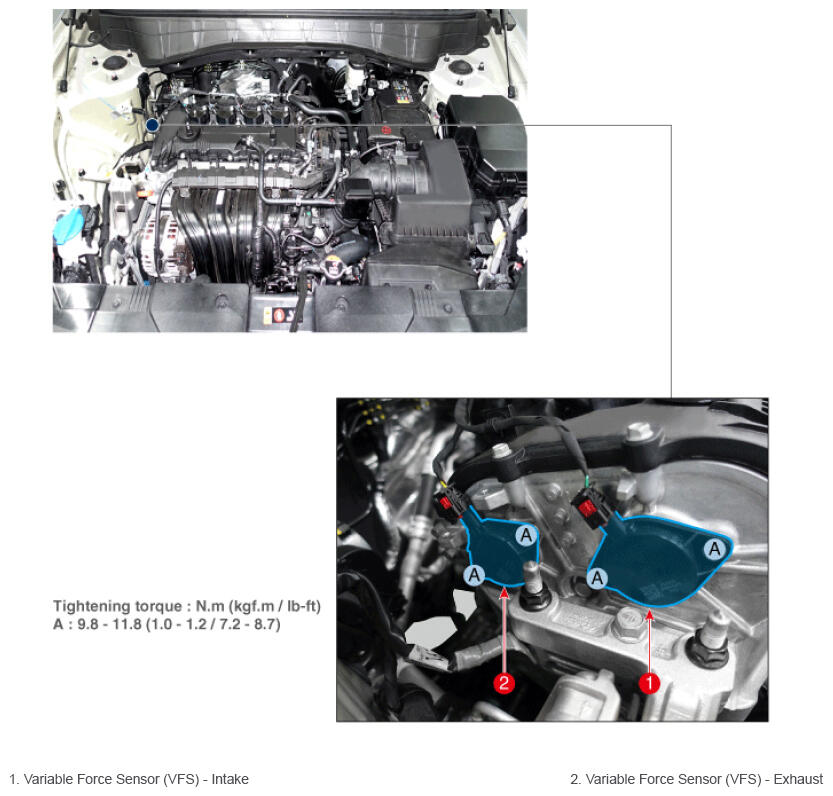

Fig 1: Variable Force Solenoid Components Location With Torque Specification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
