Variable Force Solenoid (VFS): Installation

Install in the reverse order of removal.

NOTE:

If the Variable Force Solenoid Valve (VFS) is dropped, do not reuse it.
When installing the Variable Force Solenoid Valve (VFS), pay attention to the below instructions.

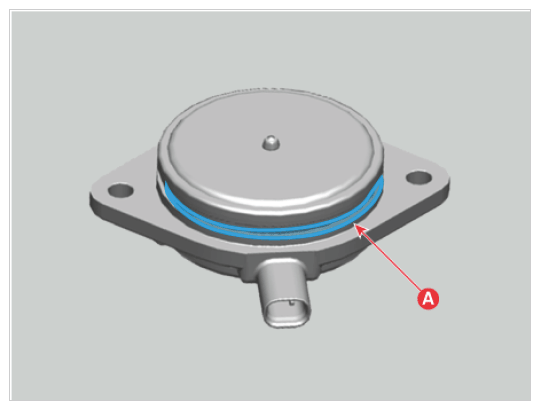

Replace the Variable Force Solenoid Valve (VFS) O-ring (A) with a new one and then apply engine oil to the new O-ring (A).

Courtesy of HYUNDAI MOTOR AMERICA

Push the Variable Force Solenoid Valve (VFS) until it reaches the end of the timing chain cover mounting face and then provisionally tighten the bolts.
Tighten the Variable Force Solenoid Valve (VFS) to the specified torque.
