Removal And Installation

Disconnect the battery negative (-) terminal.

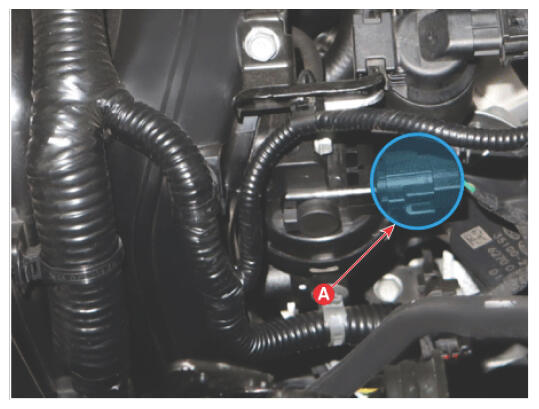

Disconnect the Variable Intake Solenoid (VIS) valve connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

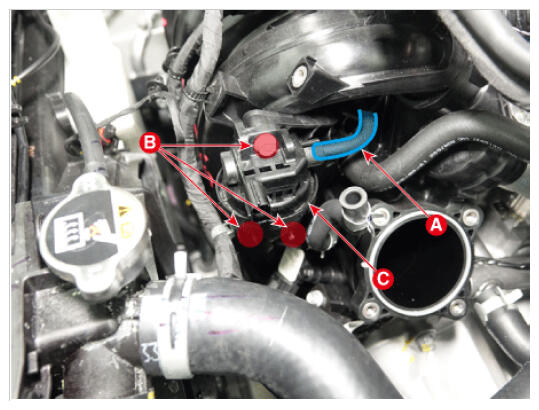

Disconnect the vacuum hose (A).
Remove the Variable Intake Solenoid (VIS) valve (C) after removing the bolts (B).
Tightening Torque :

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
