Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| A/C Fuses (2) | In fuse/relay block, on left rear of engine compartment. |
| Circuit Breaker | Behind left kick panel. See Figure . |
| Fuel Pump Fuse | In fuse block, under left side of dash. |
| Fuse Block | Under left side of dash. |

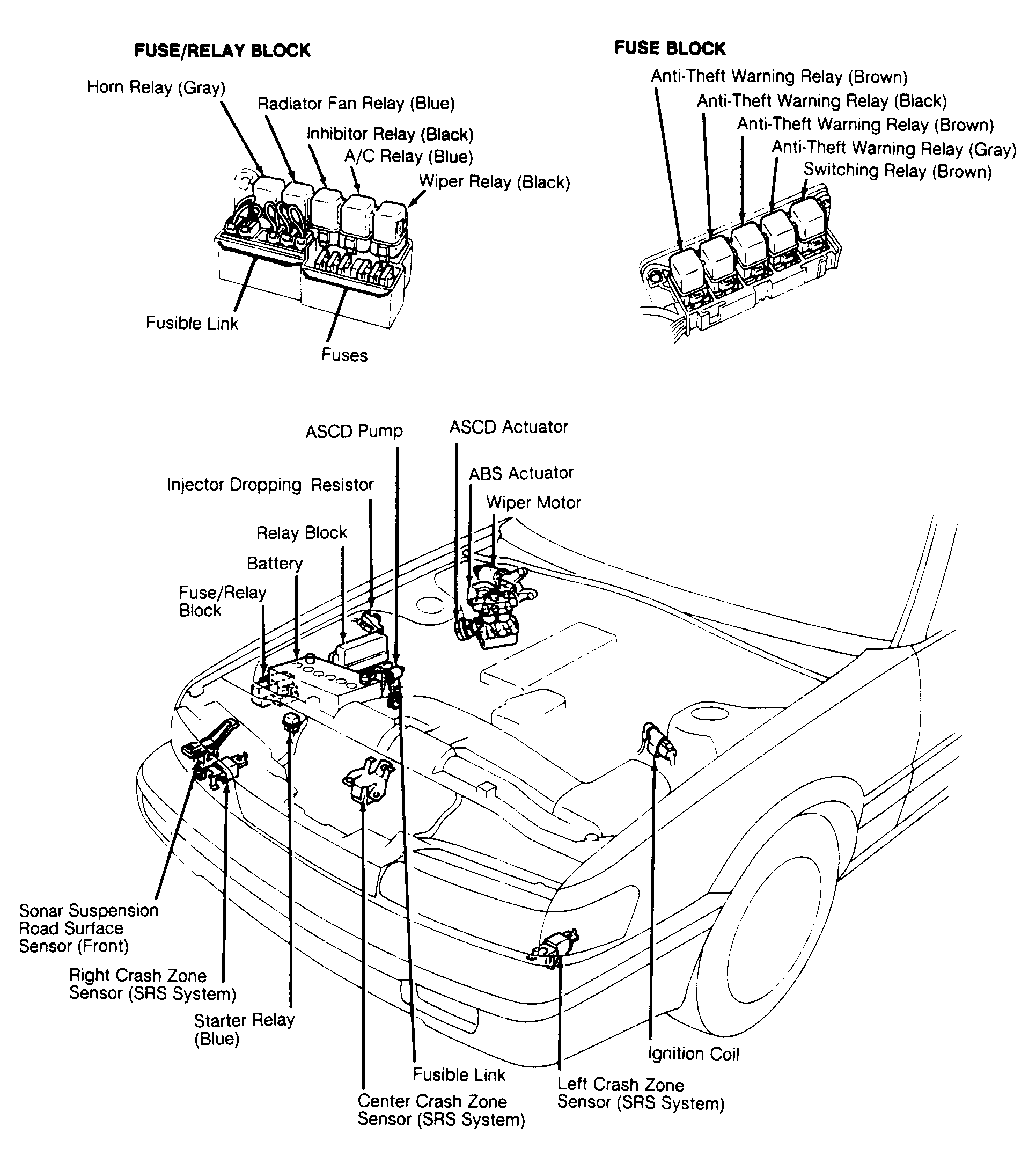

| Fuse/Relay Block | In right front of engine compartment, near battery. See Figure . |
| Fusible Links | In fuse/relay block, near battery. |
| Relay Block | In right front of engine compartment, near battery. See Figure . |
