Code 13: Engine (Coolant) Temperature Sensor

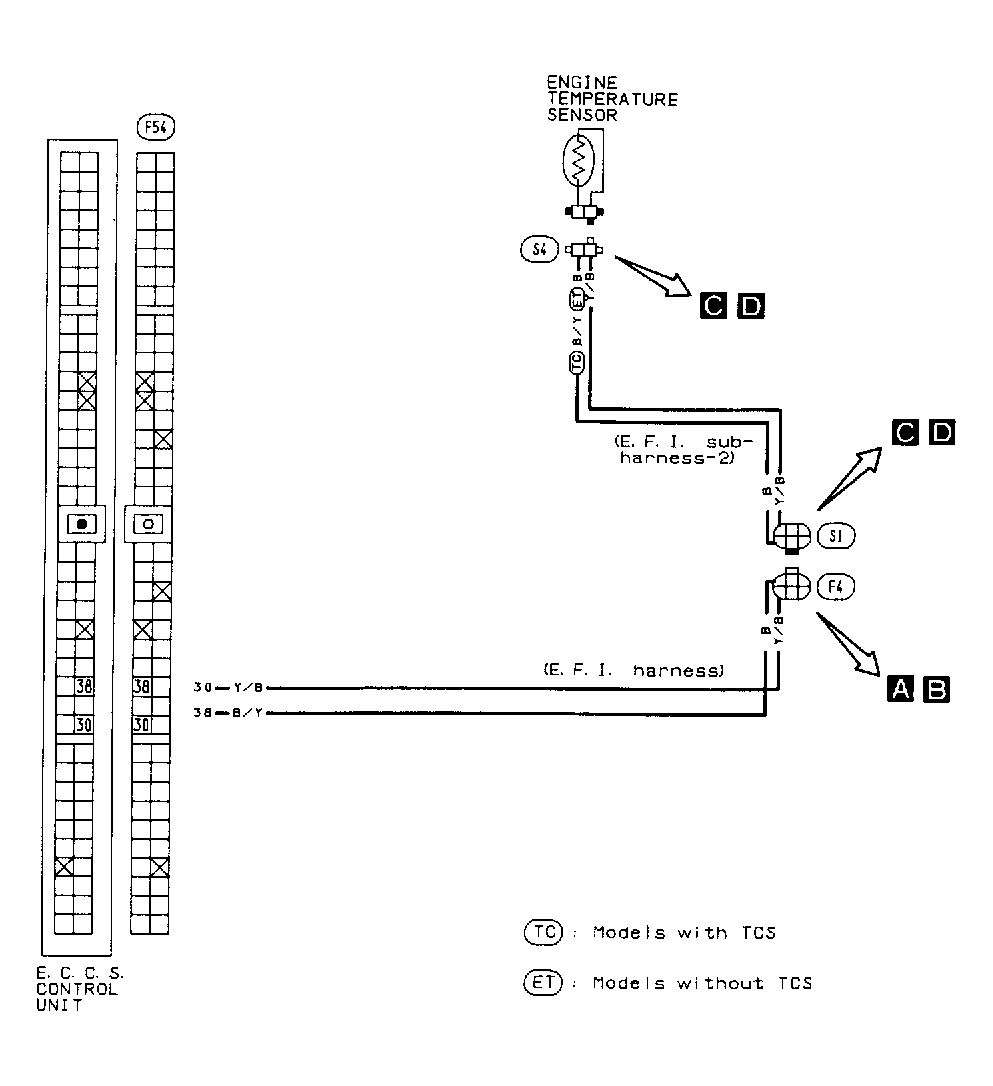

Fig 1: Code 13: Engine Temp. Sensor Circuit Diagram
G91F17371Courtesy of NISSAN MOTOR CO., U.S.A.

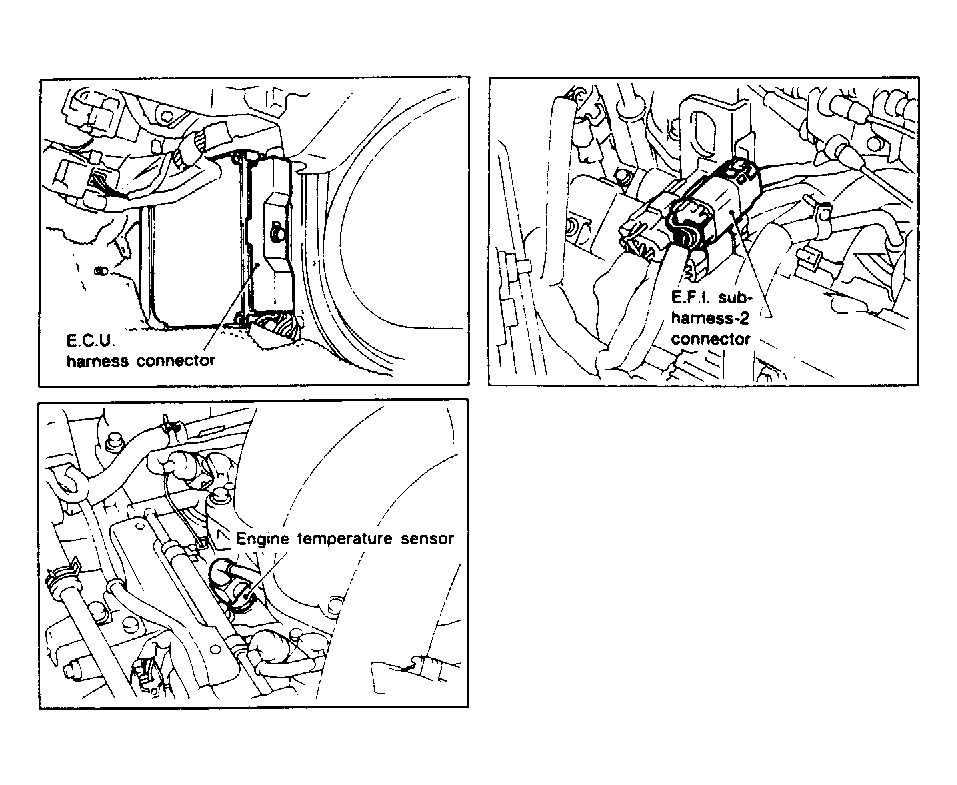

Fig 2: Code 13: Engine Temp. Sensor & ECU Harness Location
G91G17372Courtesy of NISSAN MOTOR CO., U.S.A.

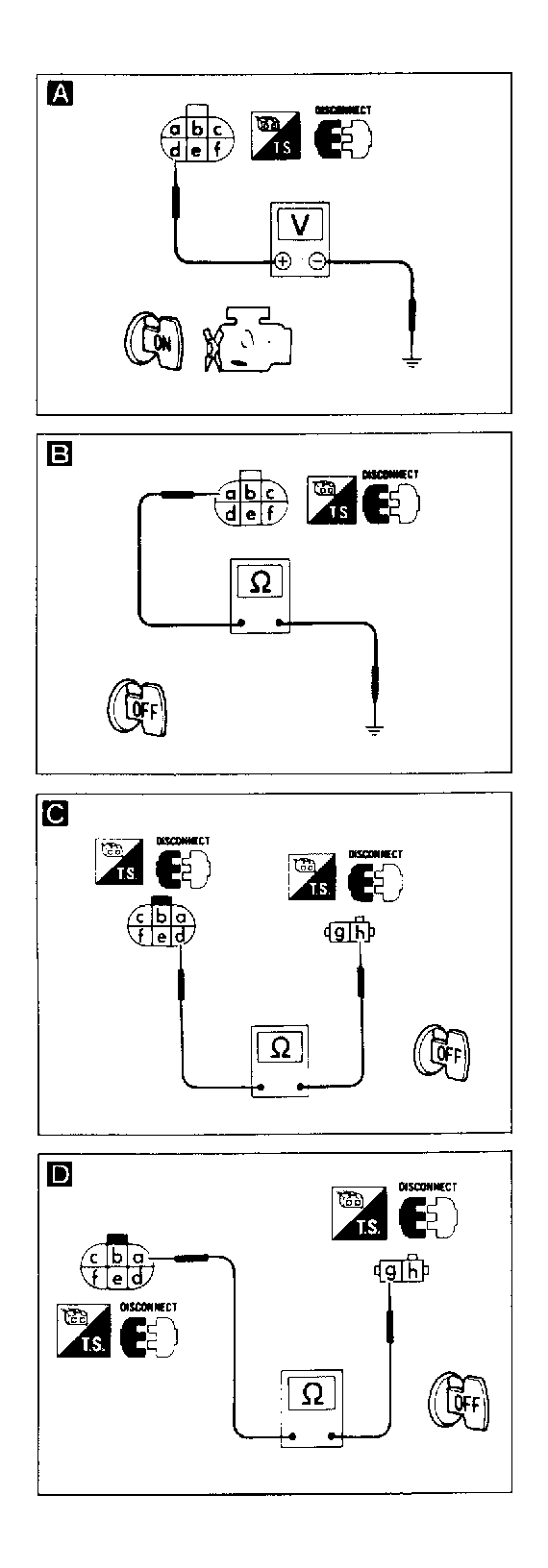

Fig 3: Code 13: Engine Temp. Sensor Flow Chart (1 of 2)
G91H17373Courtesy of NISSAN MOTOR CO., U.S.A.

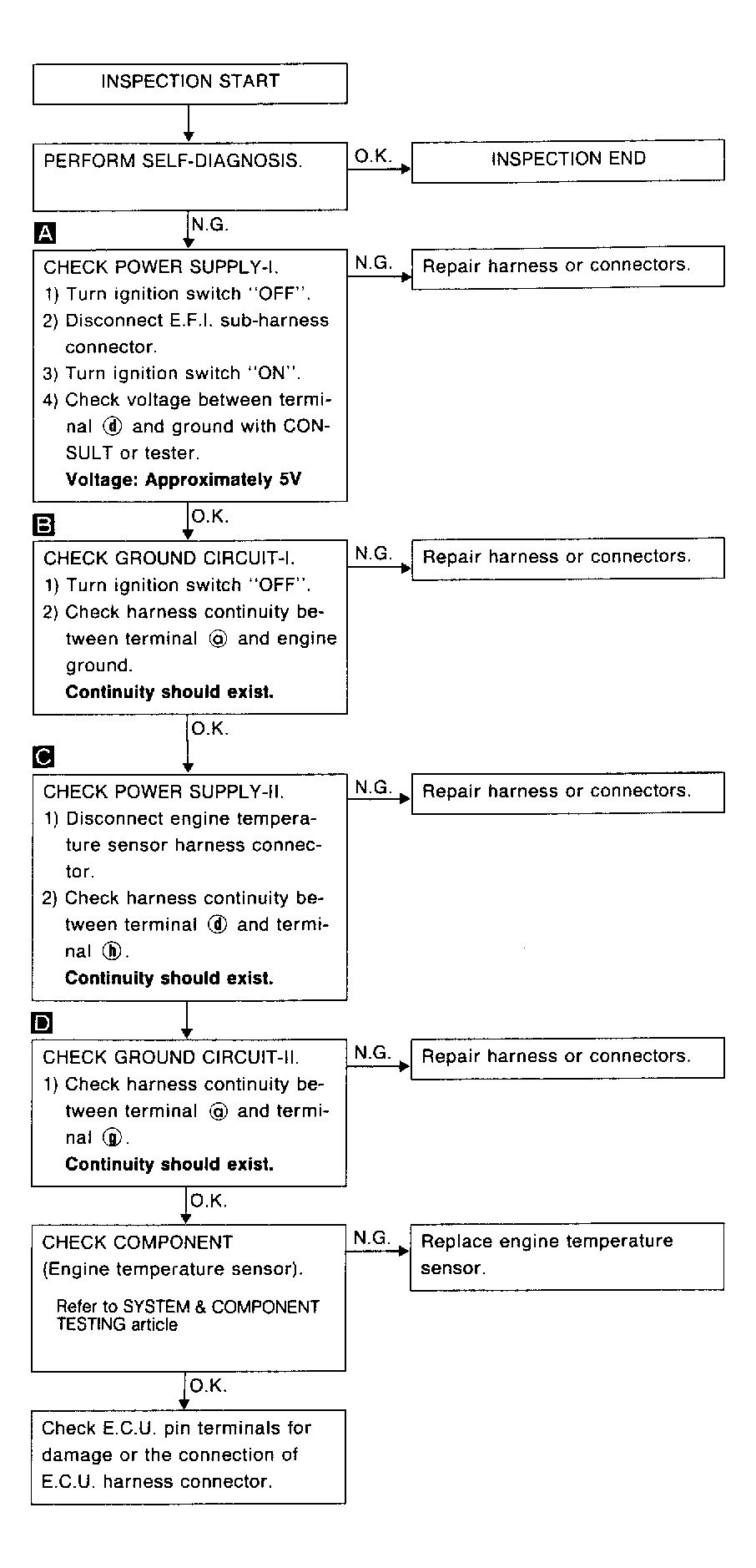

Fig 4: Code 13: Engine Temp. Sensor Flow Chart (2 of 2)
G91I17374Courtesy of NISSAN MOTOR CO., U.S.A.
