Essential Tool Release (ITB95-009)
Publication date: 1995-02-22Reference number: ITB95-009
ESSENTIAL TOOL RELEASE
TECHNICAL SERVICE BULLETIN
Reference Number(s): ITB95-009, Date of Issue:
February 22, 1995
ESSENTIAL TOOL RELEASE
Model(s): Infiniti models
Classification: T & E95-003
Section: Tool & Equipment
Bulletin No.: ITB95-009
Date: February 22, 1995
SERVICE INFORMATION
During the week of February 6, 1995, all Infiniti dealers were sent the following special tools as part of the Essential Service Tool Program.
SERVICE PROCEDURE
- J36741-A, Oxygen Sensor Socket. This socket accommodates the new, longer Bosch type 22 mm front 02 sensor used on the 1996 I30. See Fig 1 .

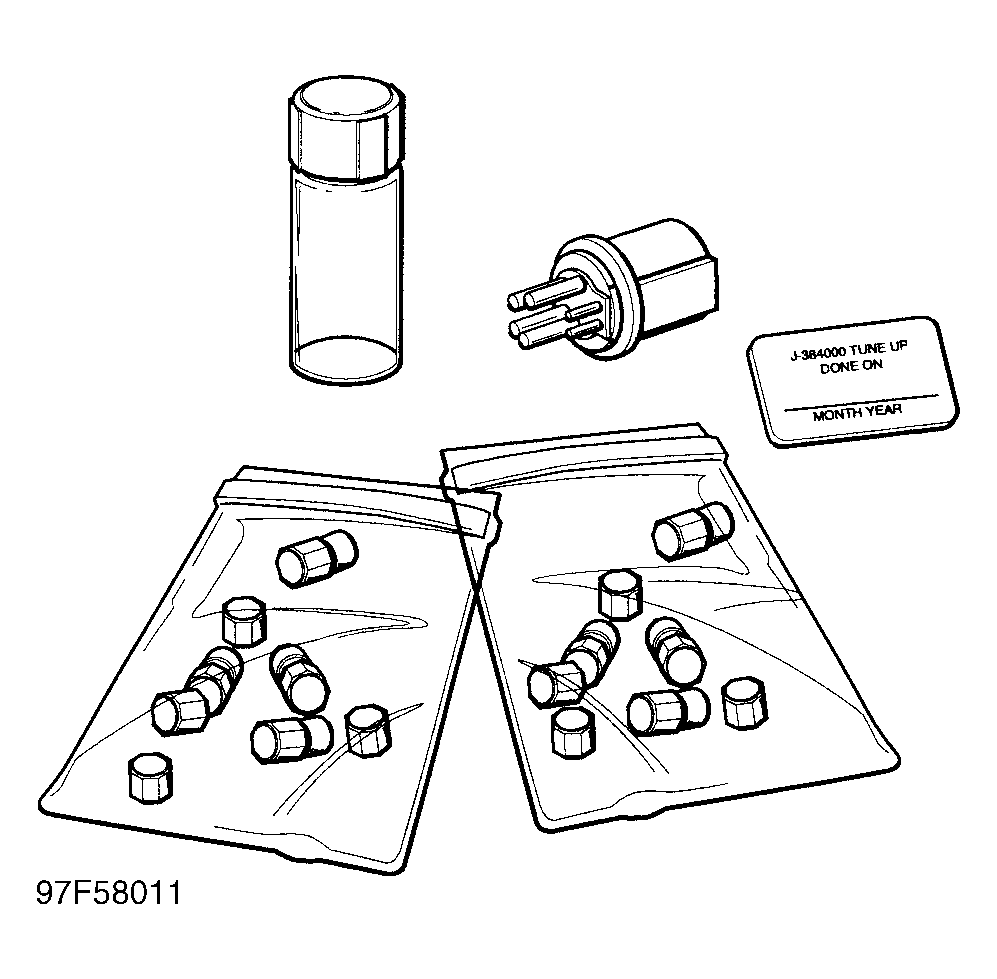

- J39400-A/C Leak Detector Tune-up Kit. This kit provides all the items necessary to perform preventive maintenance on the J39400 A/C Leak Detector. See Fig 2
. Included in the kit are:A/C LEAK DETECTOR TUNE-UP KIT

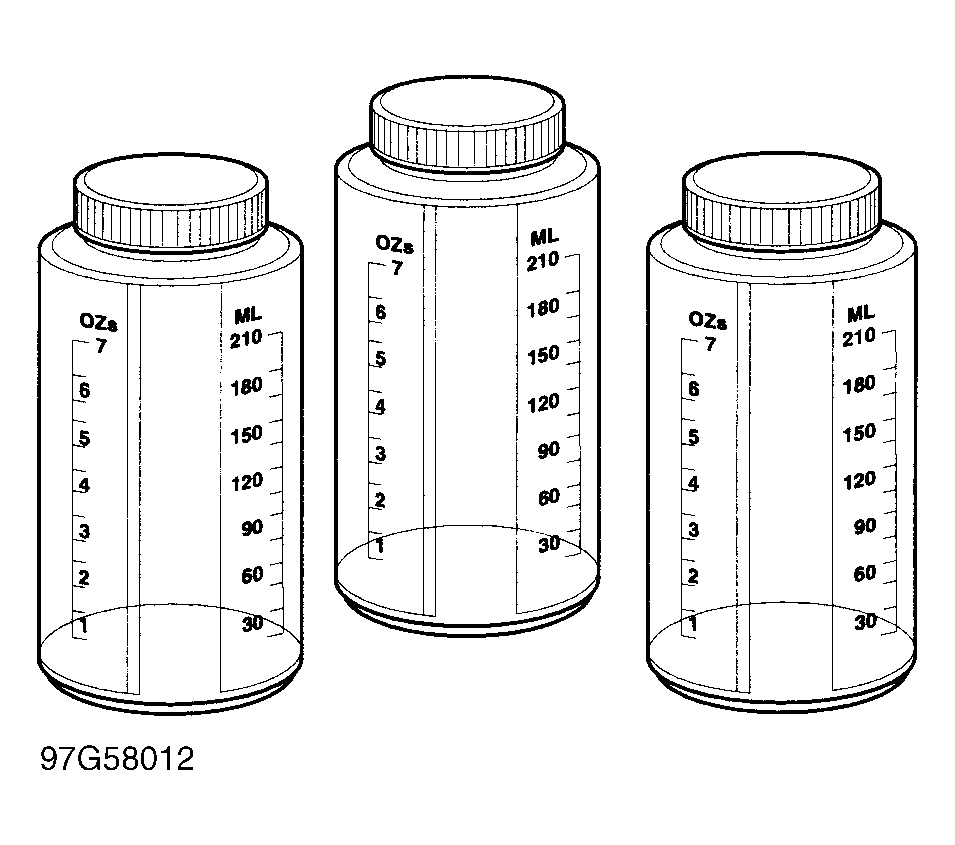

Description Quantity New heated diode sensor 1 Calibration bottle 1 Filters 12 Cotton swab cleaning sticks 10 Air flow balls 4 Safety pin 1 Tune up date label 1 Tune up kit instruction sheet 1 - J39500-71N. ACR4 Lubricant Injection Bottle Conversion Kit. See Fig 3 .
This kit provides three, 12 ounce plastic bottles and related fittings to replace the existing 7 ounce bottles. These bottles will accommodate the proper oil charge when retrofitting from R-12 to R-134a refrigerant systems.
PARTS INFORMATION
PARTS INFORMATION
| Description | KENT-MOORE P/N |
|---|---|
| Oxygen Sensor Socket | J36741-A |
| A/C Leak Detector Tune-up Kit | 39400-Tune up |
| ACR4 Lubricant Injection Bottle Conversion Kit | J39500-71N |
