Fail Safe/Backup System

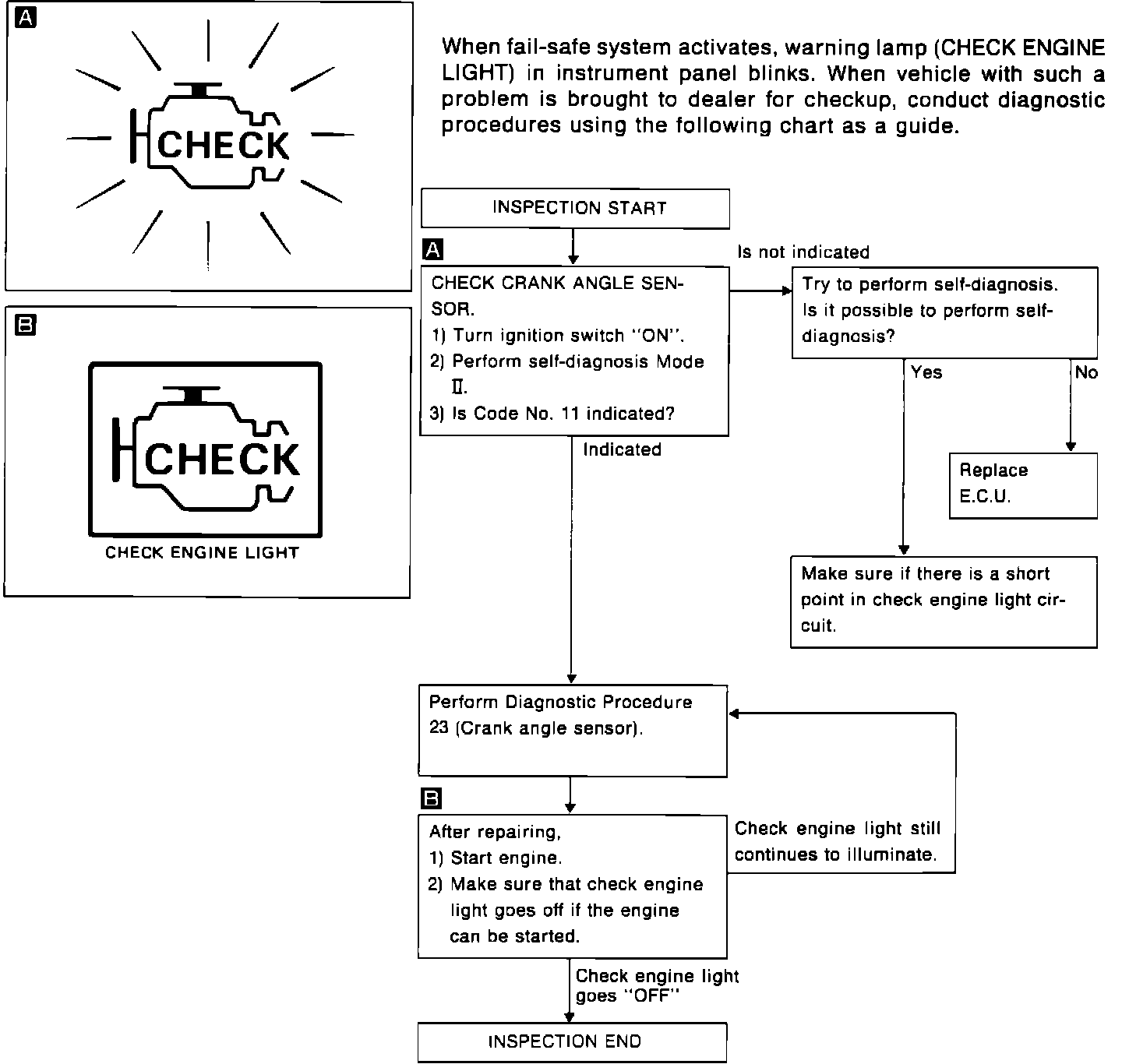

Fig. 141 Component Circuit Diagnosis, Fail Safe System (Part 1 Of 2):



Fig. 141 Component Circuit Diagnosis, Fail Safe System (Part 2 Of 2):
