System Specifications

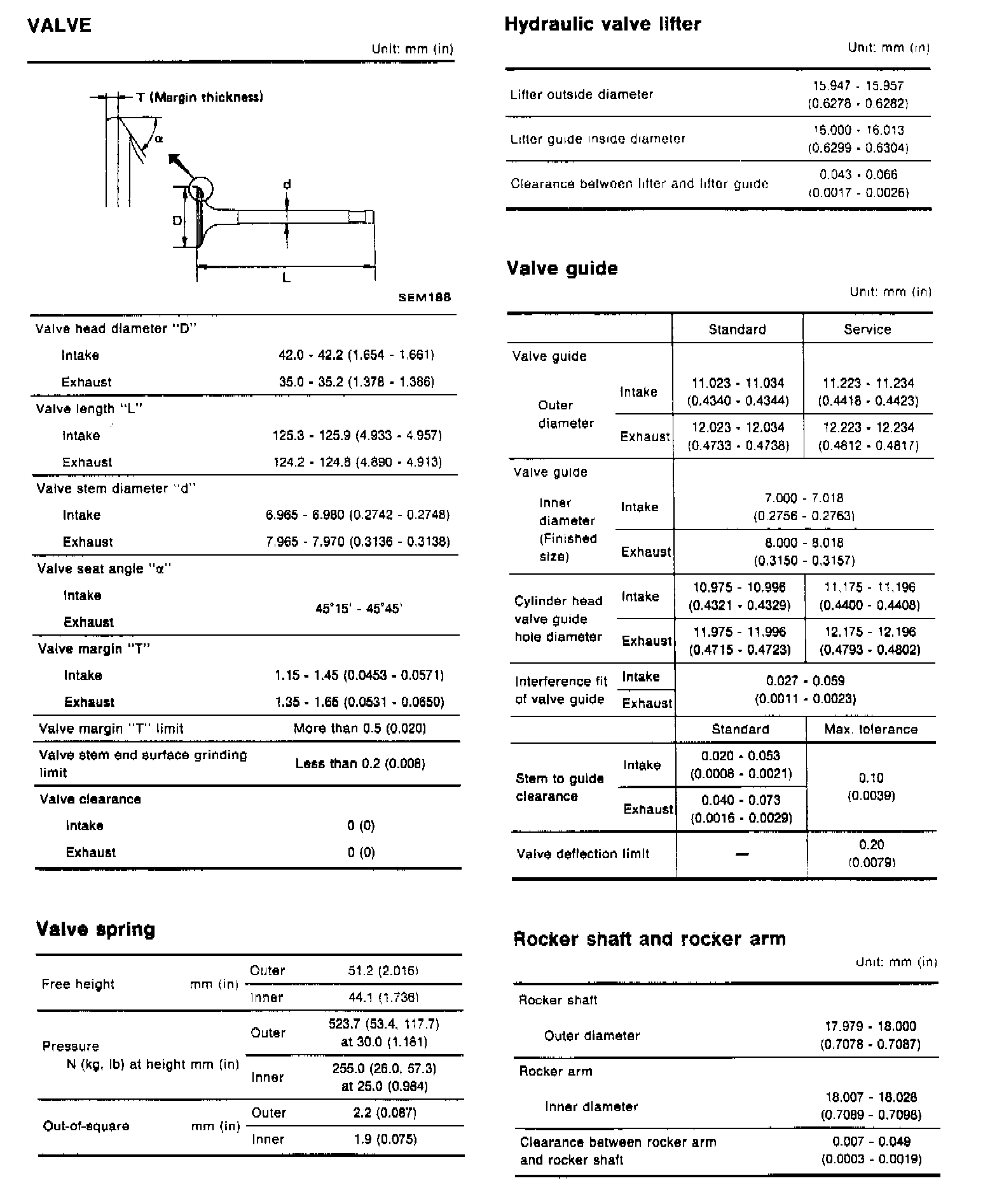

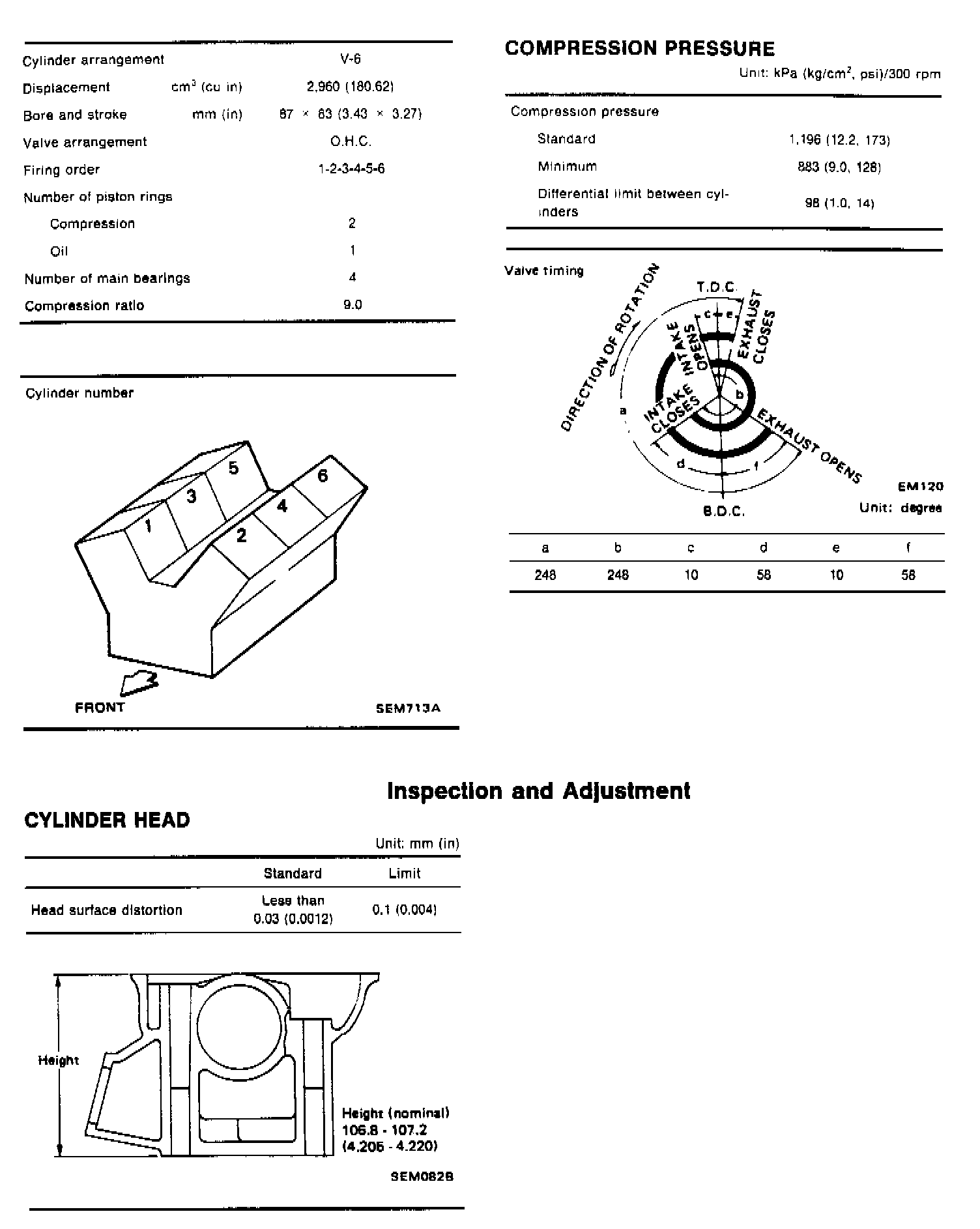

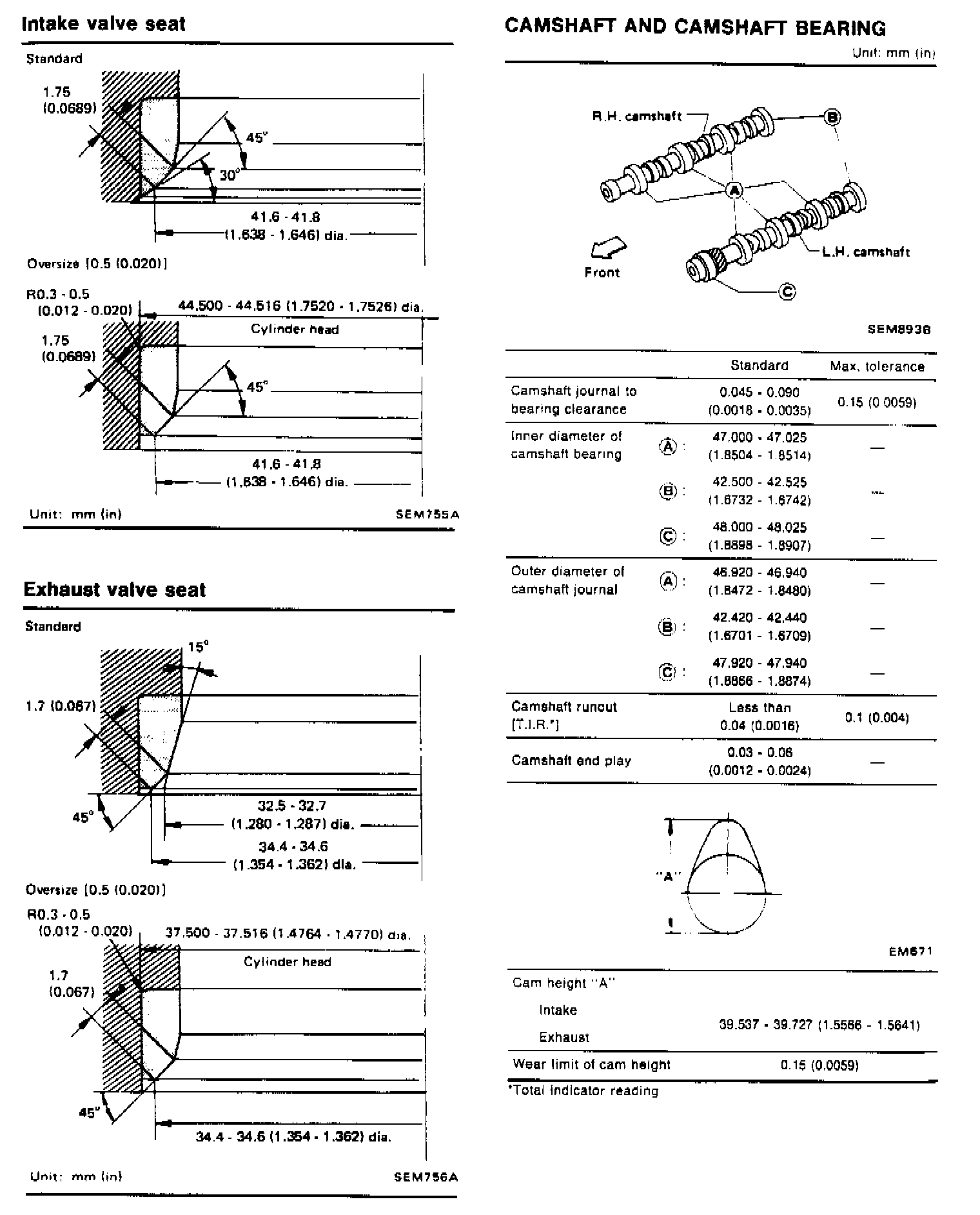

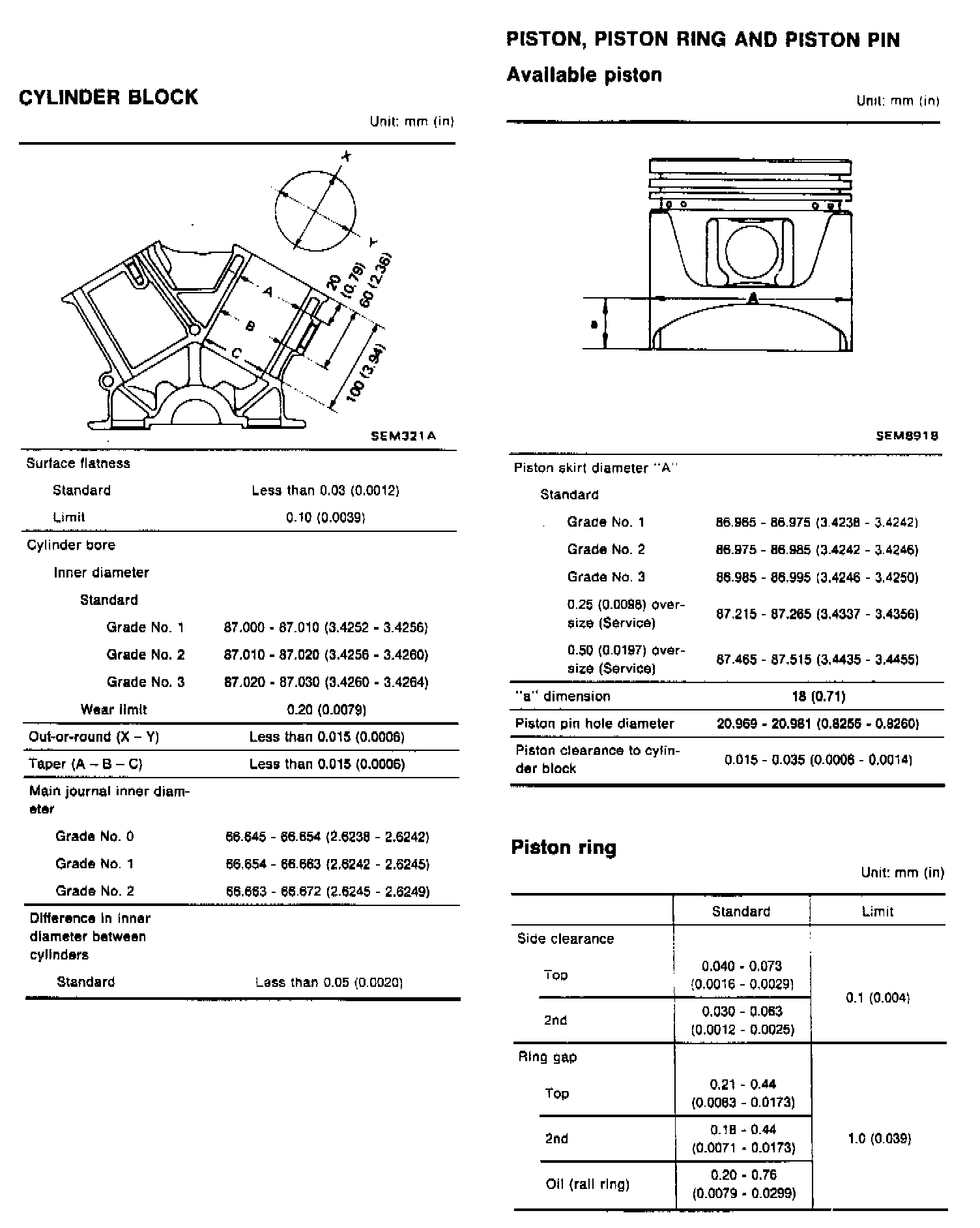

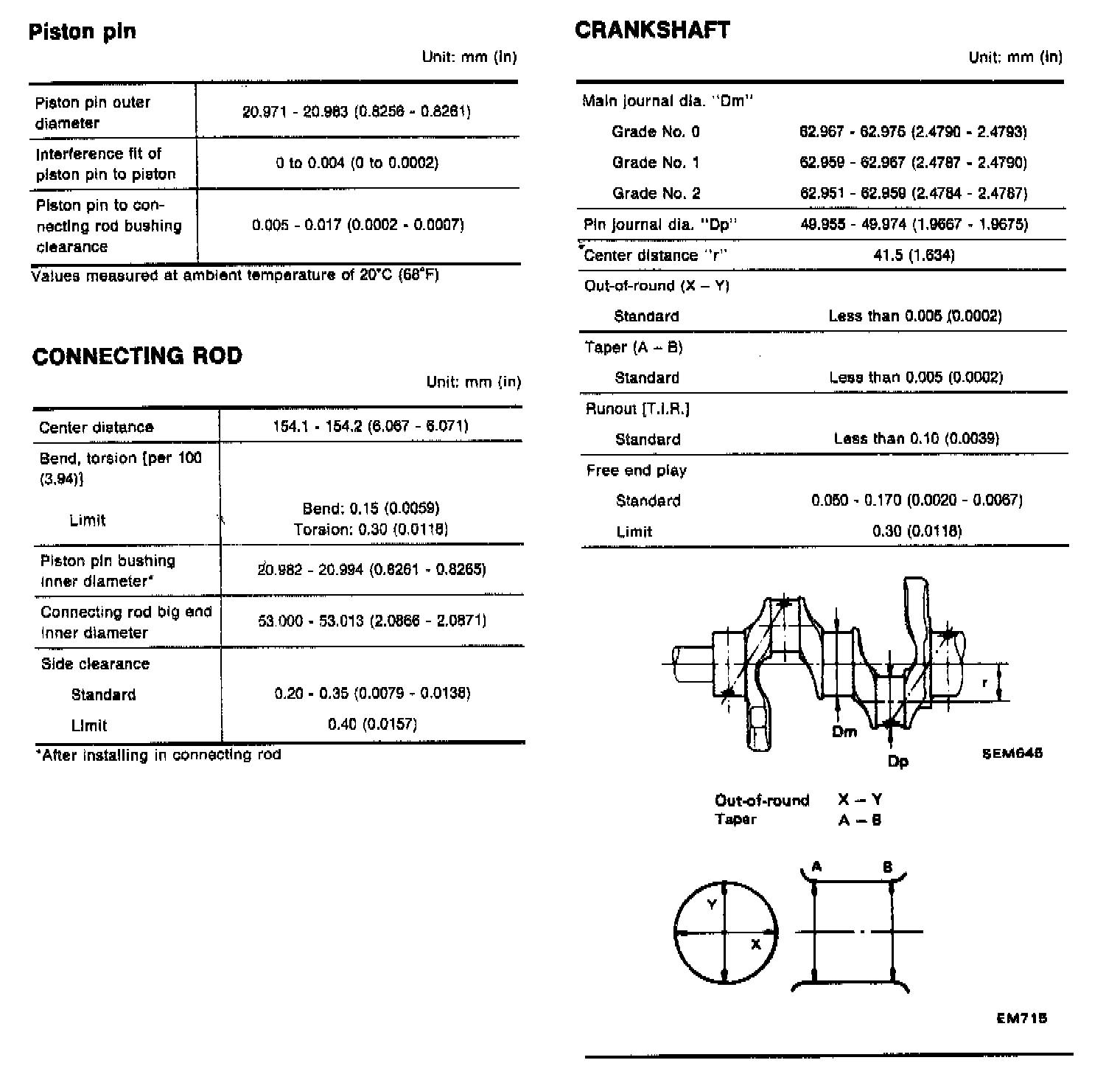

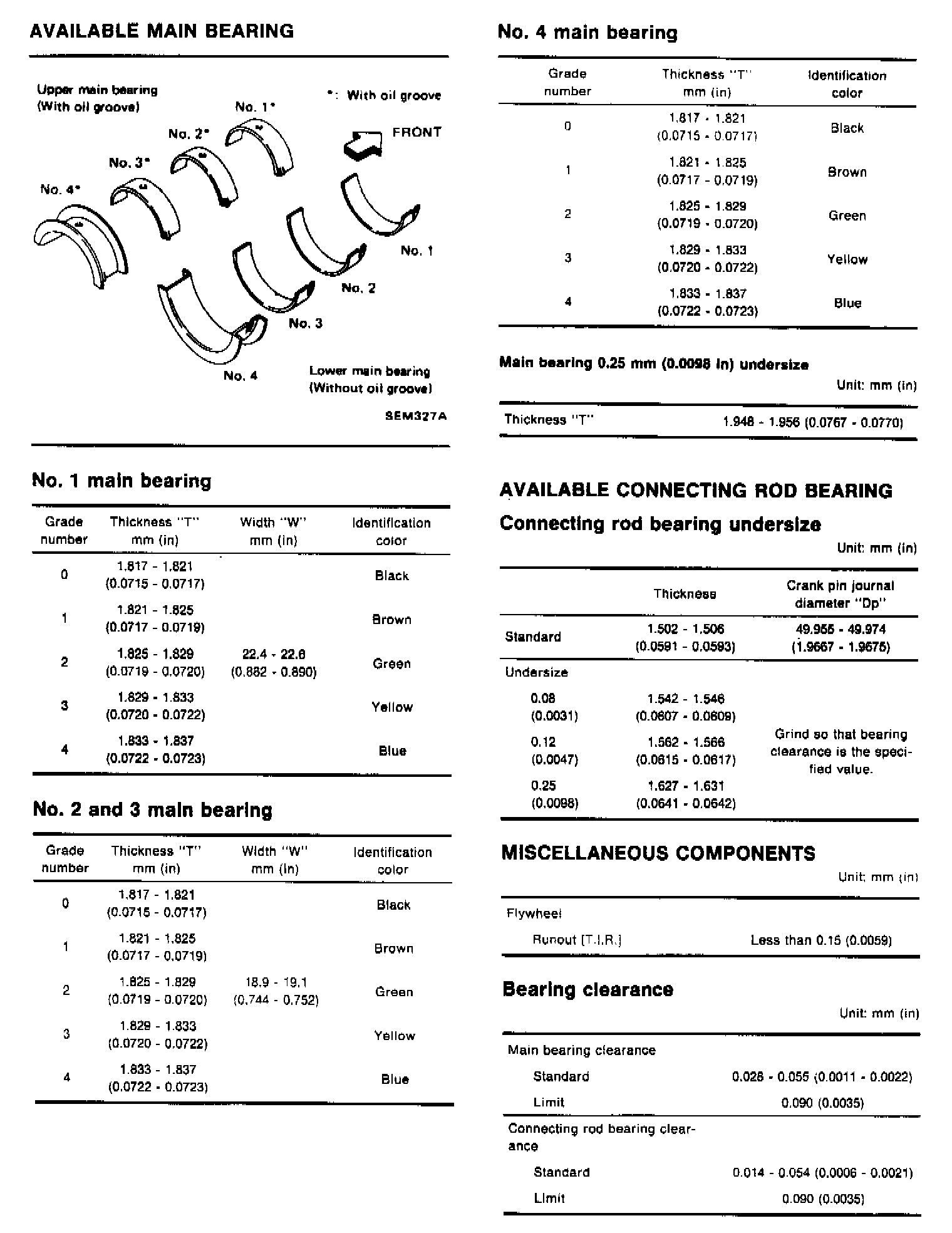

ENGINE SPECIFICATIONS

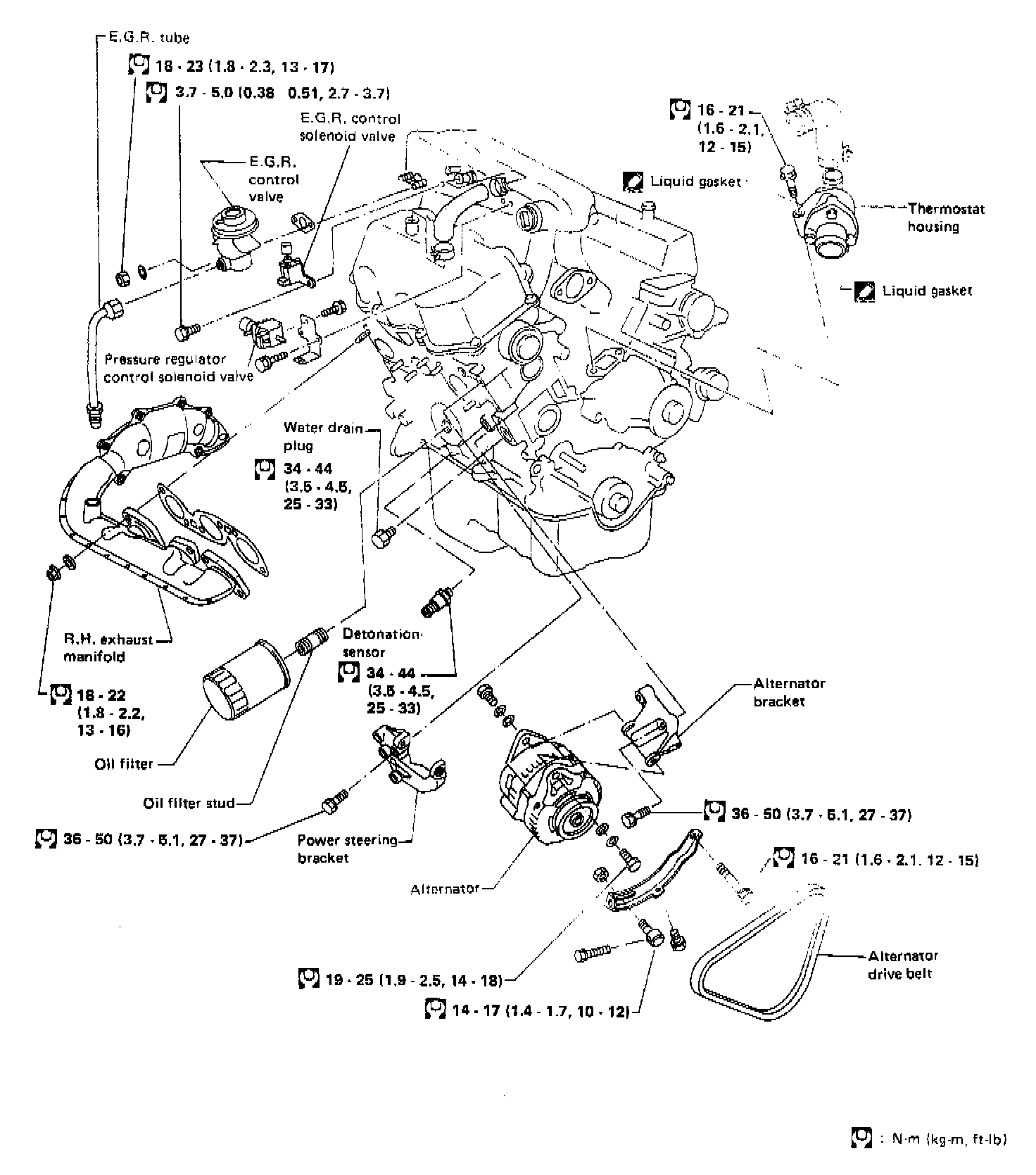

TIGHTENING SPECIFICATIONS

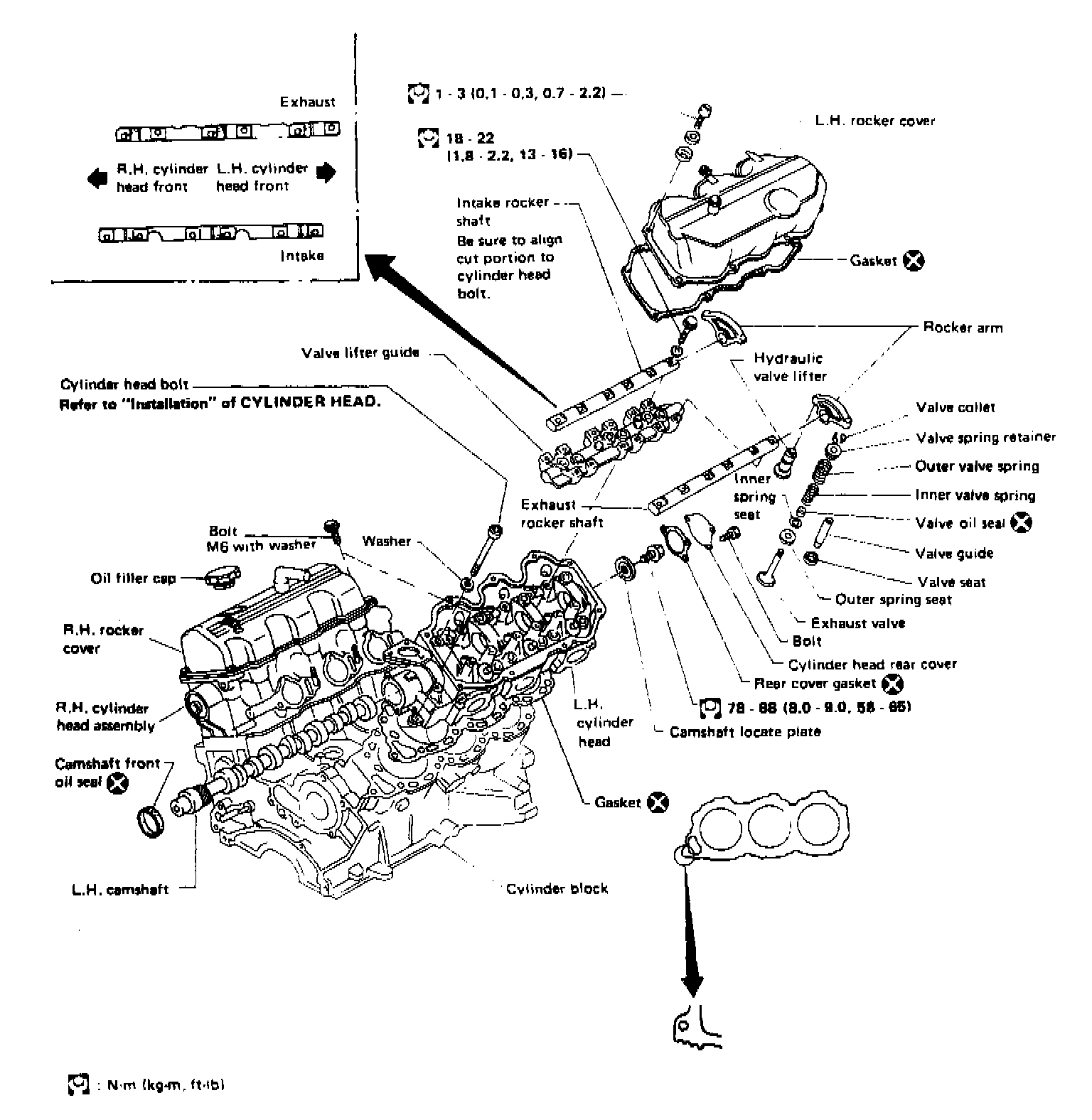

CYLINDER HEAD TIGHTENING SEQUENCE

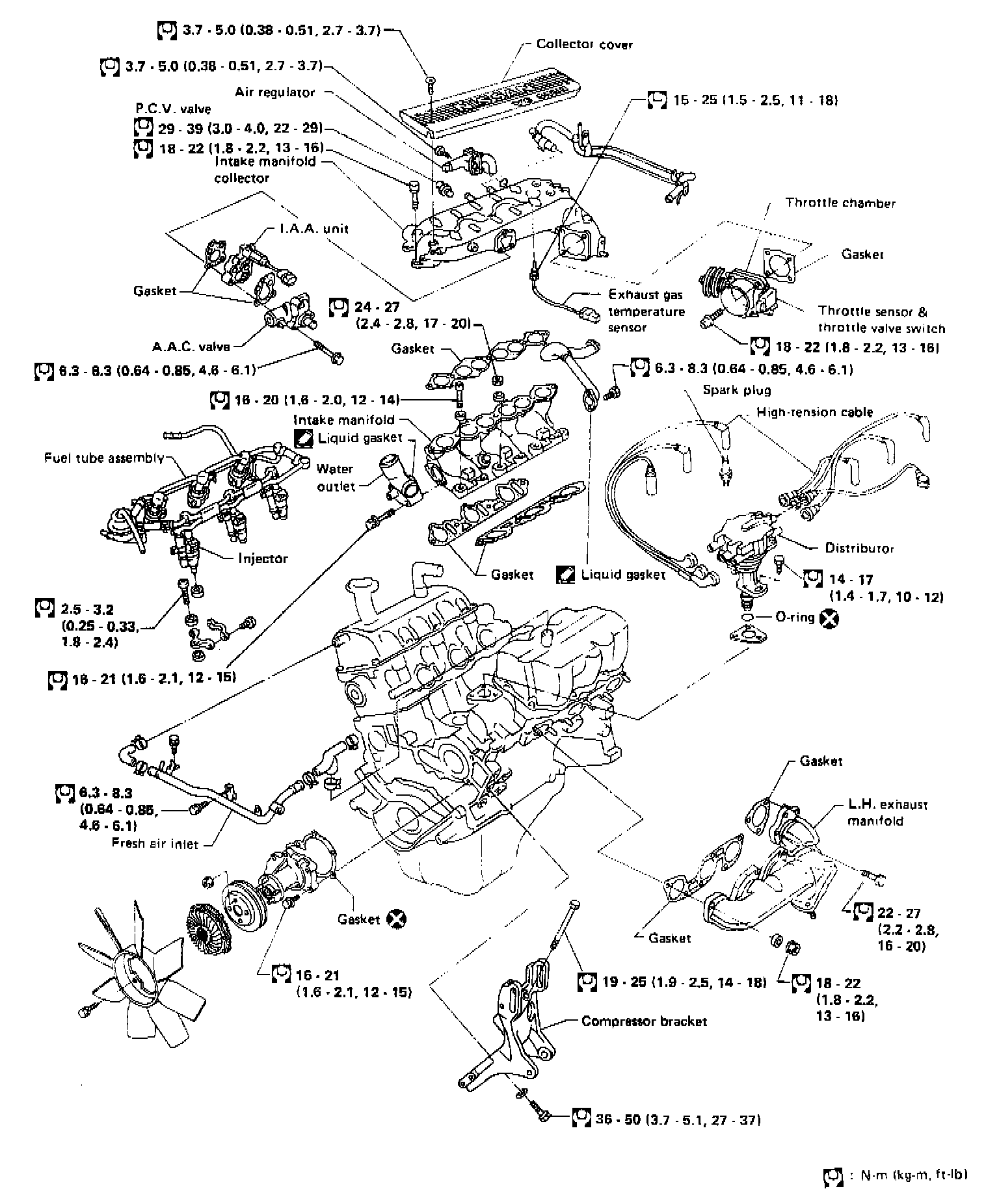

INTAKE TIGHTENING SEQUENCE

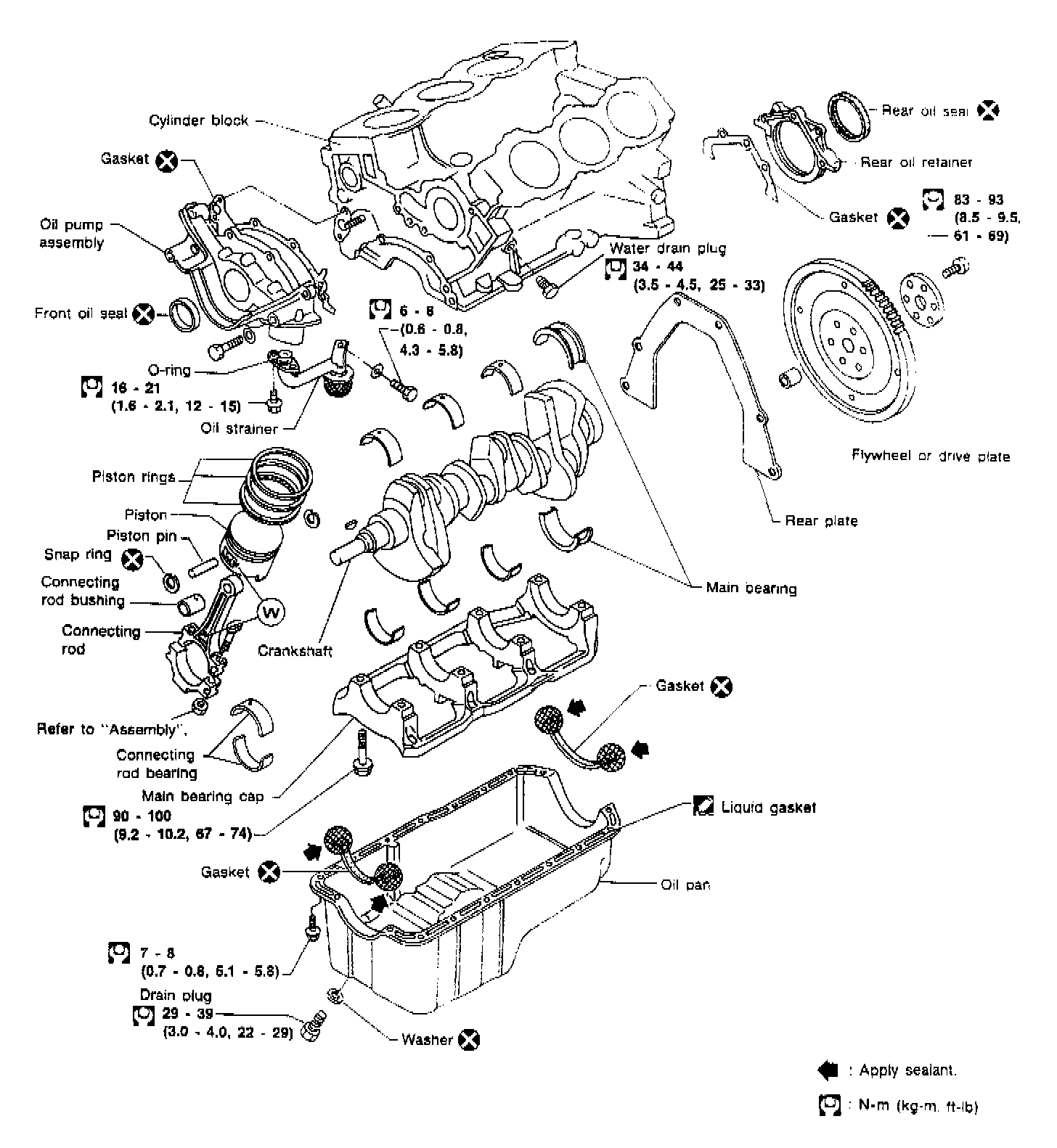

MAIN BEARING TIGHTENING SEQUENCE
