Diagnostic Procedure
Mass Air Flow Sensor (Not Self-Diagnostic Item):

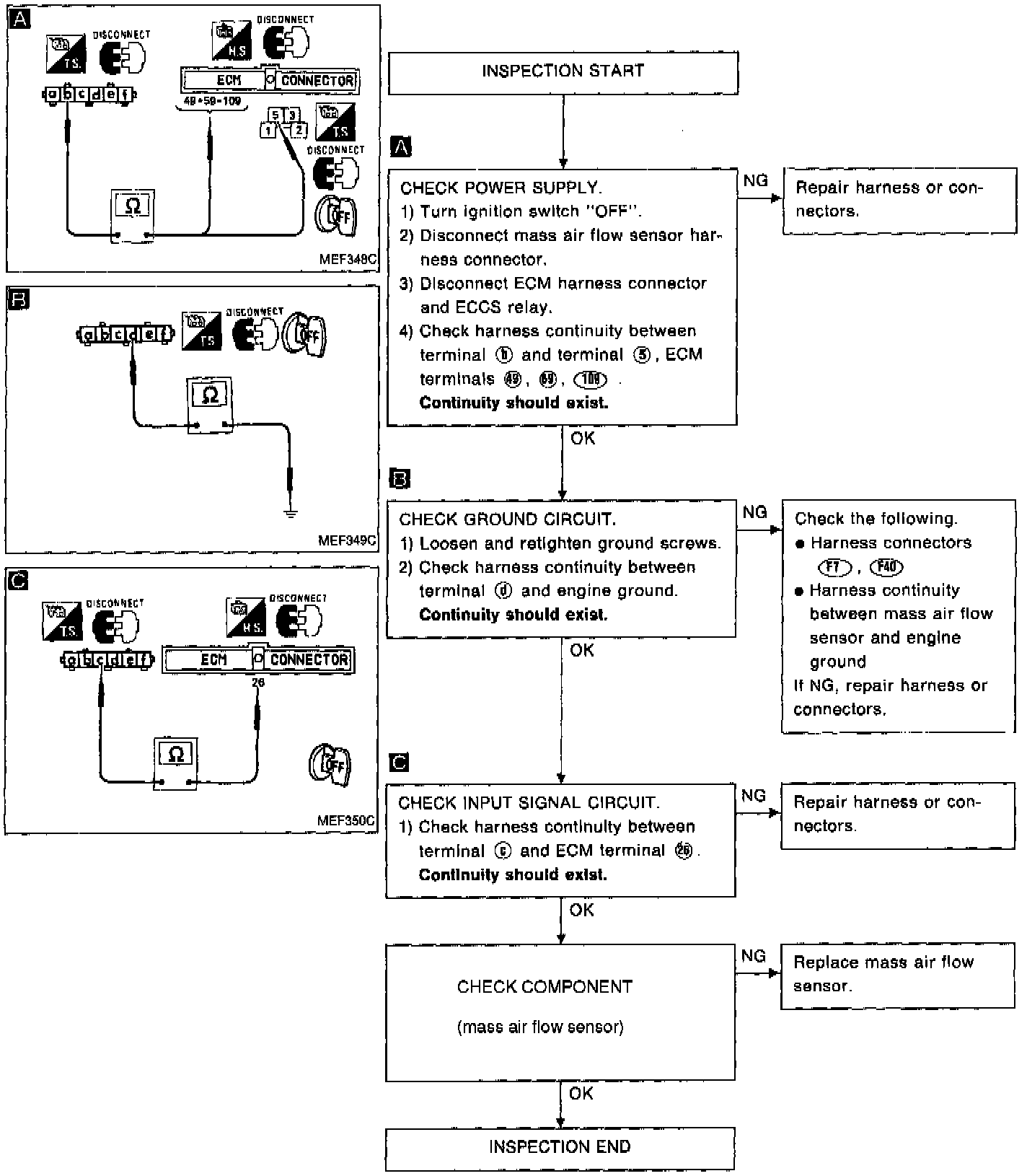

DIAGNOSTIC CHART

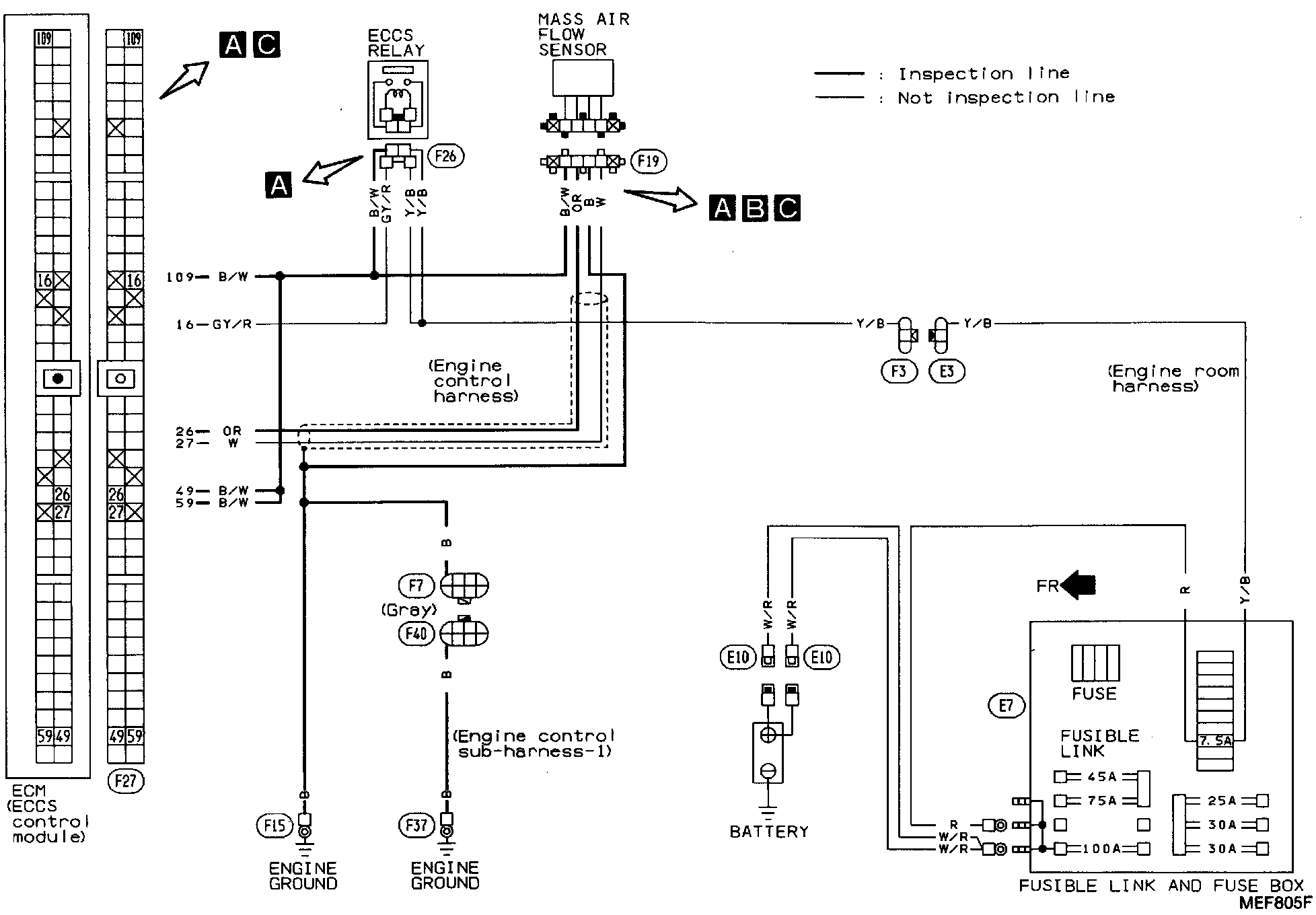

Circuit Diagram:
CIRCUIT DIAGRAM
Harness Layout:
HARNESS LAYOUT
