Valve Timing Control System

PURPOSE
The valve timing control system is used to improve engine performance by dynamically changing intake cam timing.

Valve Timing Control Solenoid Valve Operation:

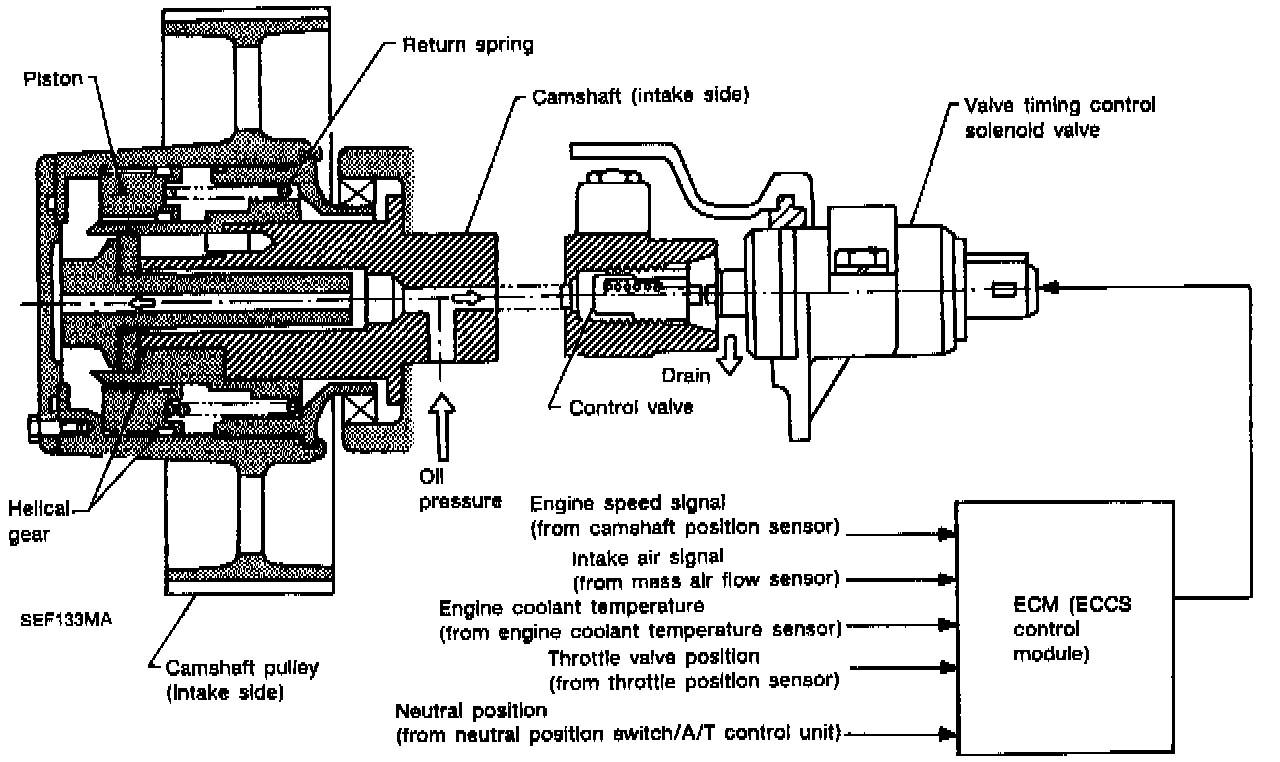

ACTUATOR OPERATION
The position (amount of advancement) of the intake cams are changed by internal oil pressure acting upon a piston/servo in the timing belt pulley.

Valve Timing Control:

SYSTEM OPERATION
