A/T Control Unit




INSPECTION OF A/T CONTROL UNIT
- Measure voltage between each terminal and terminal (15) or (48) by following "A/T CONTROL UNIT INSPECTION TABLE".




- Pin connector terminal layout.

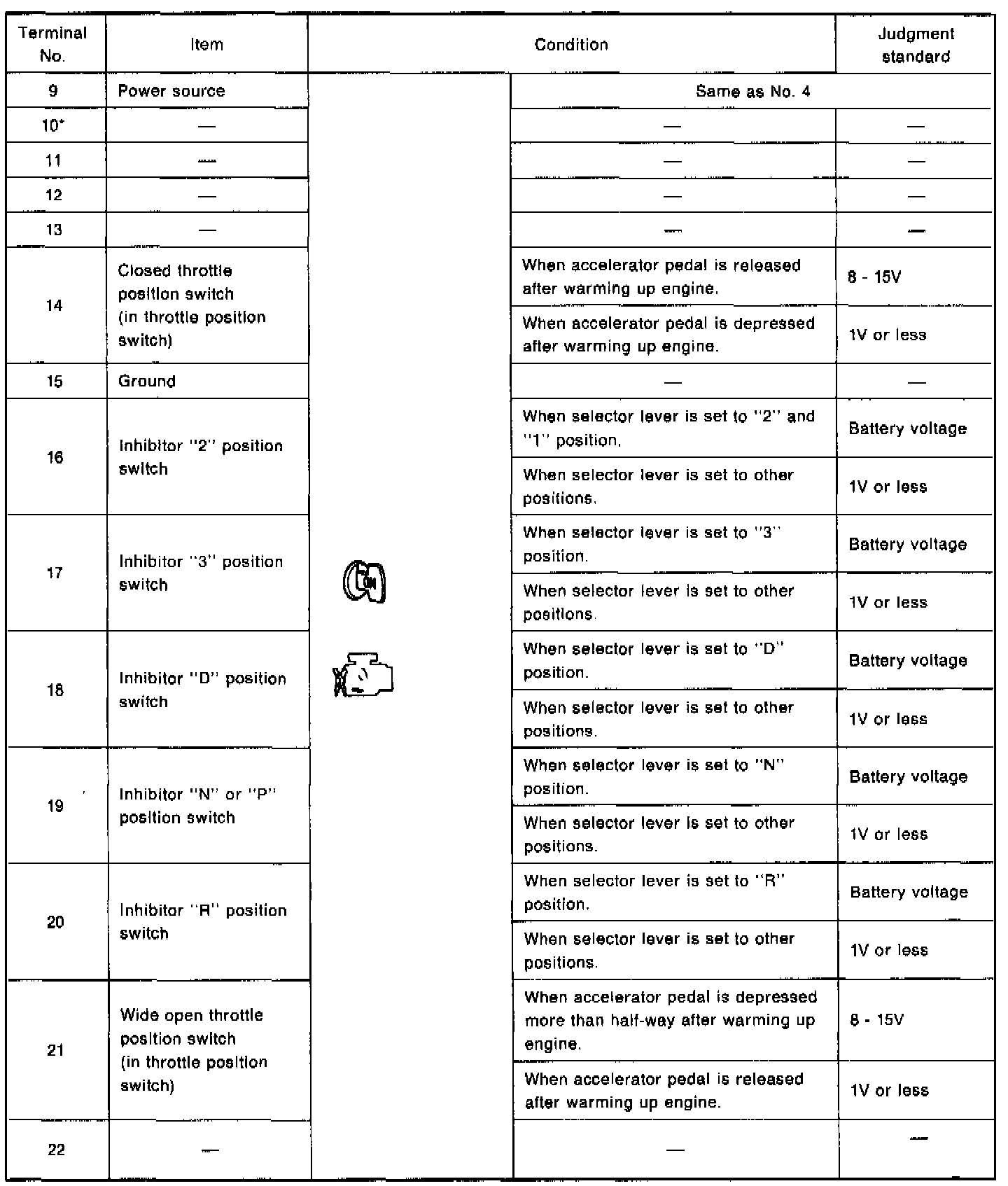

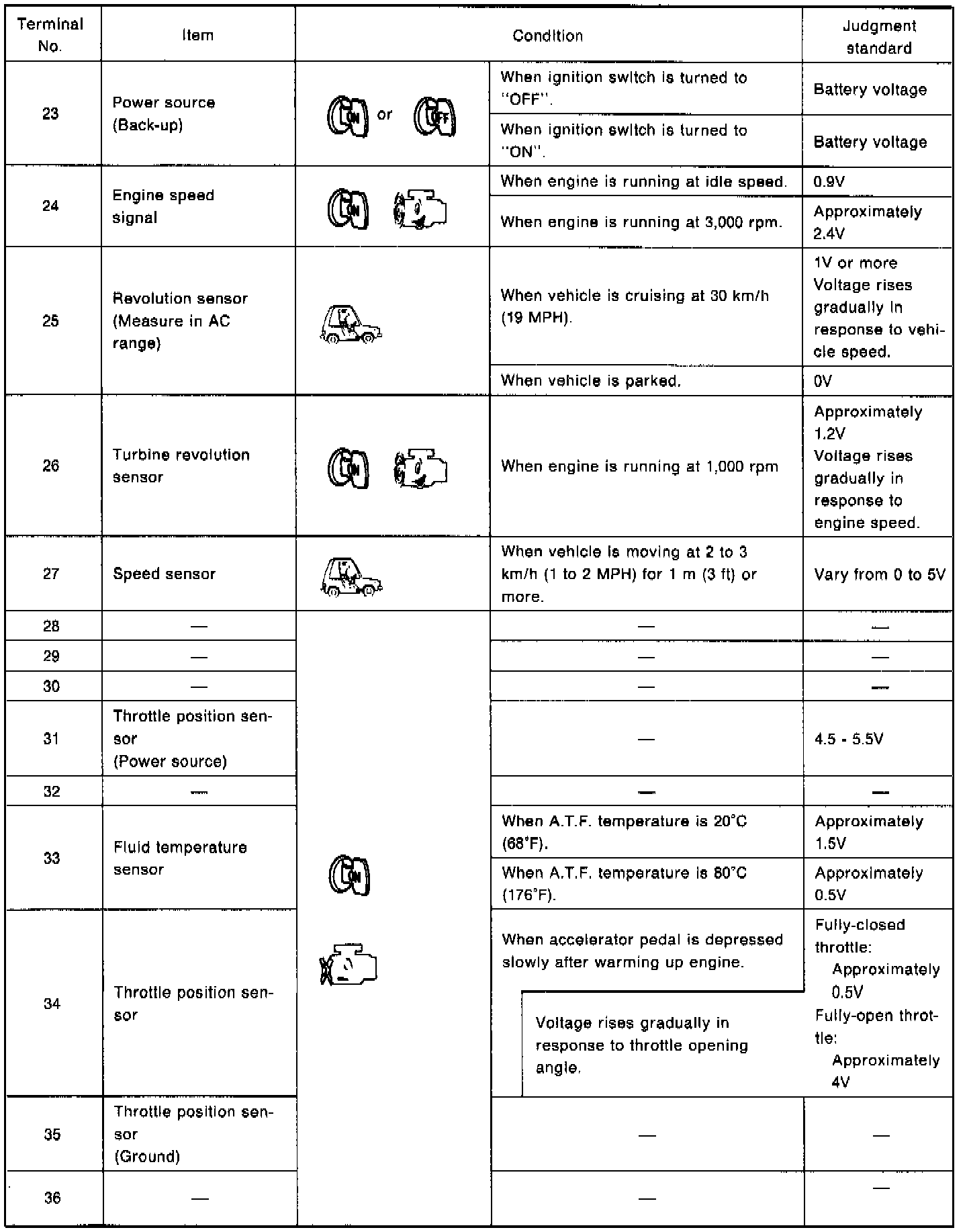

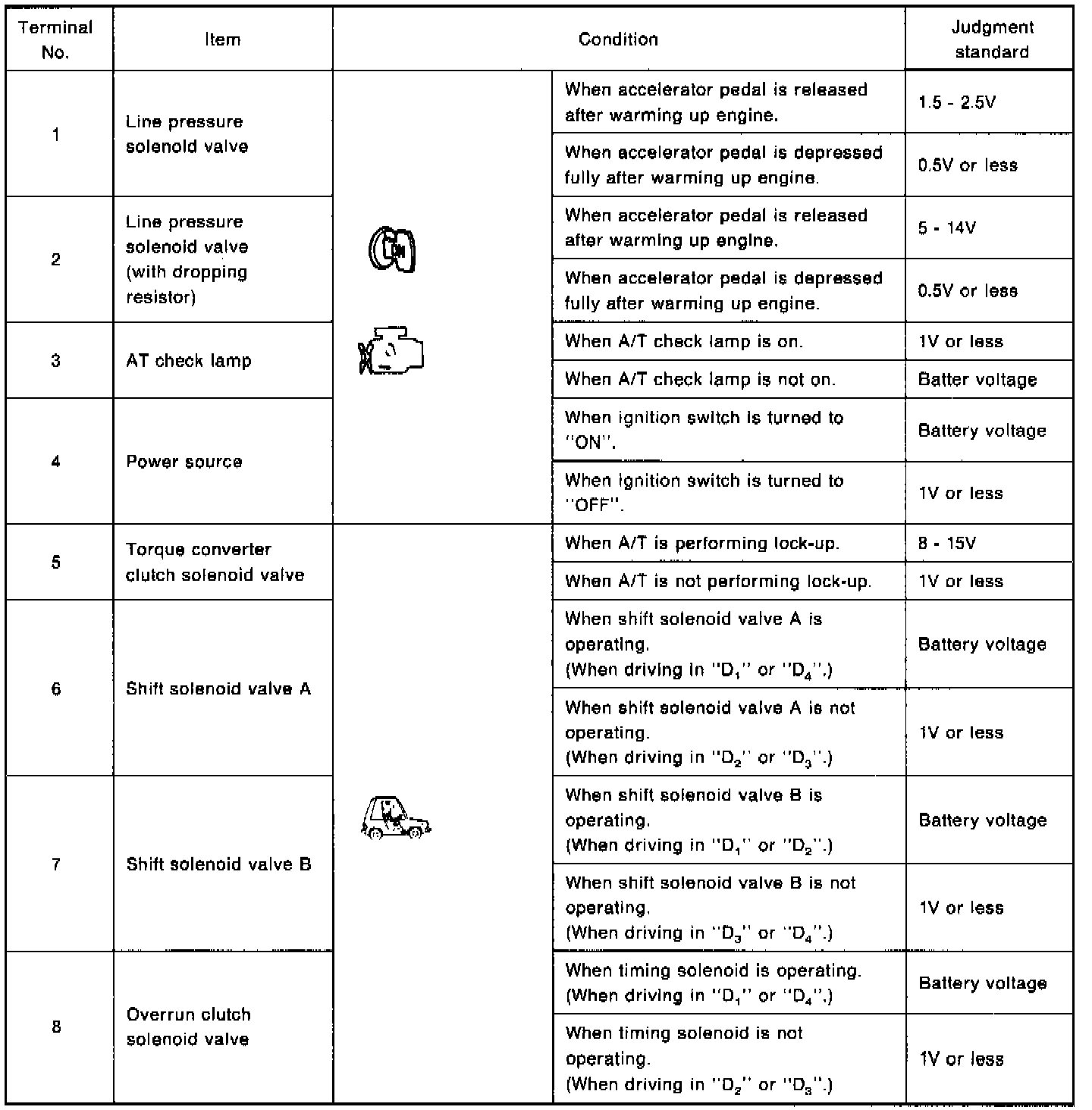

A/T CONTROL UNIT INSPECTION TABLE
NOTE: Data are reference values
