2) Check Input Signal Circuit II

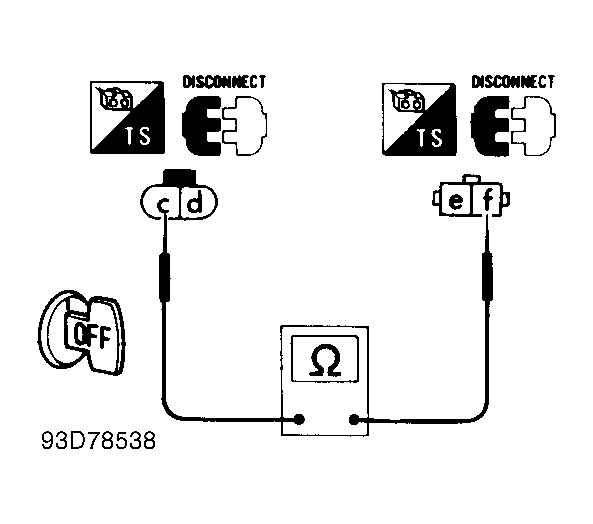

Disconnect knock sensor harness connector from sub-harness. Verify harness continuity between sub-harness terminal "c" and knock sensor harness connector terminal "f" (White wire). See Figure . If continuity is present, go to next step. If continuity is not present, repair harness or connectors as necessary.
