3) Check Input Signal Circuit

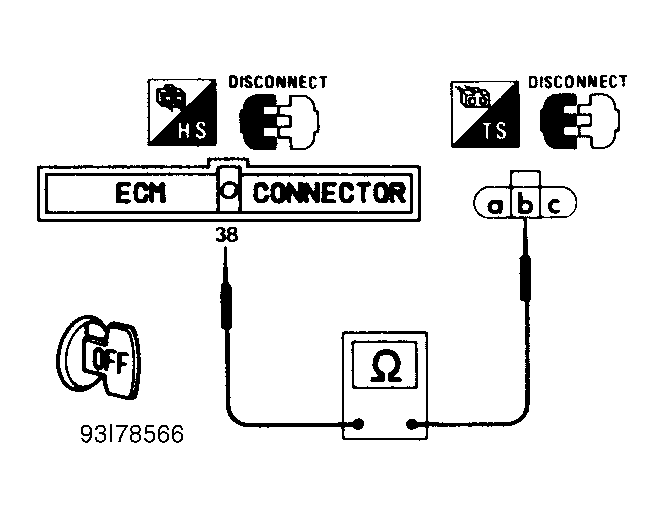

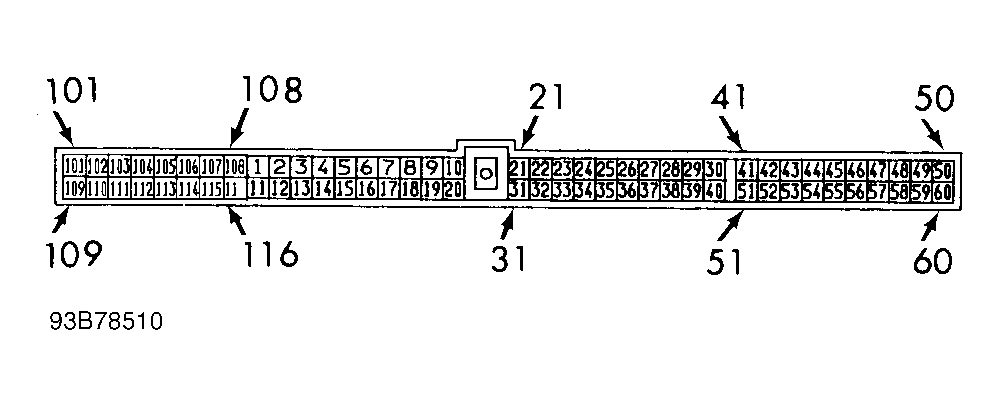

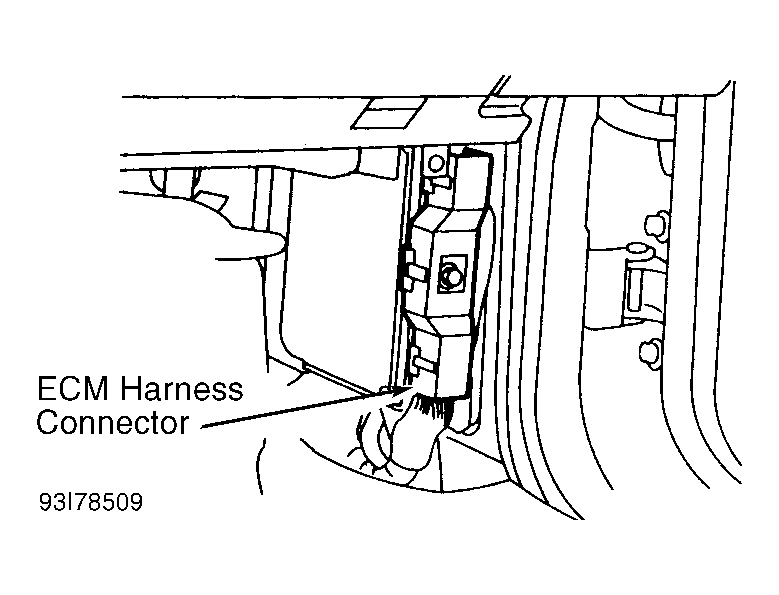

Disconnect ECM harness connector. See Figure . Verify harness continuity between ECM connector terminal No. 38 and TPS connector terminal "b" (Black wire). See Figure and Figure . If continuity is present, go to next step. If continuity is not present, repair harness or connectors as necessary.
