Diagnostic Procedure 2 - No Remote Control Functions

WARNING: This page is about a different car, the 1996 Infiniti G20. However, it is still accessible from the selected car via links, so may be relevant.

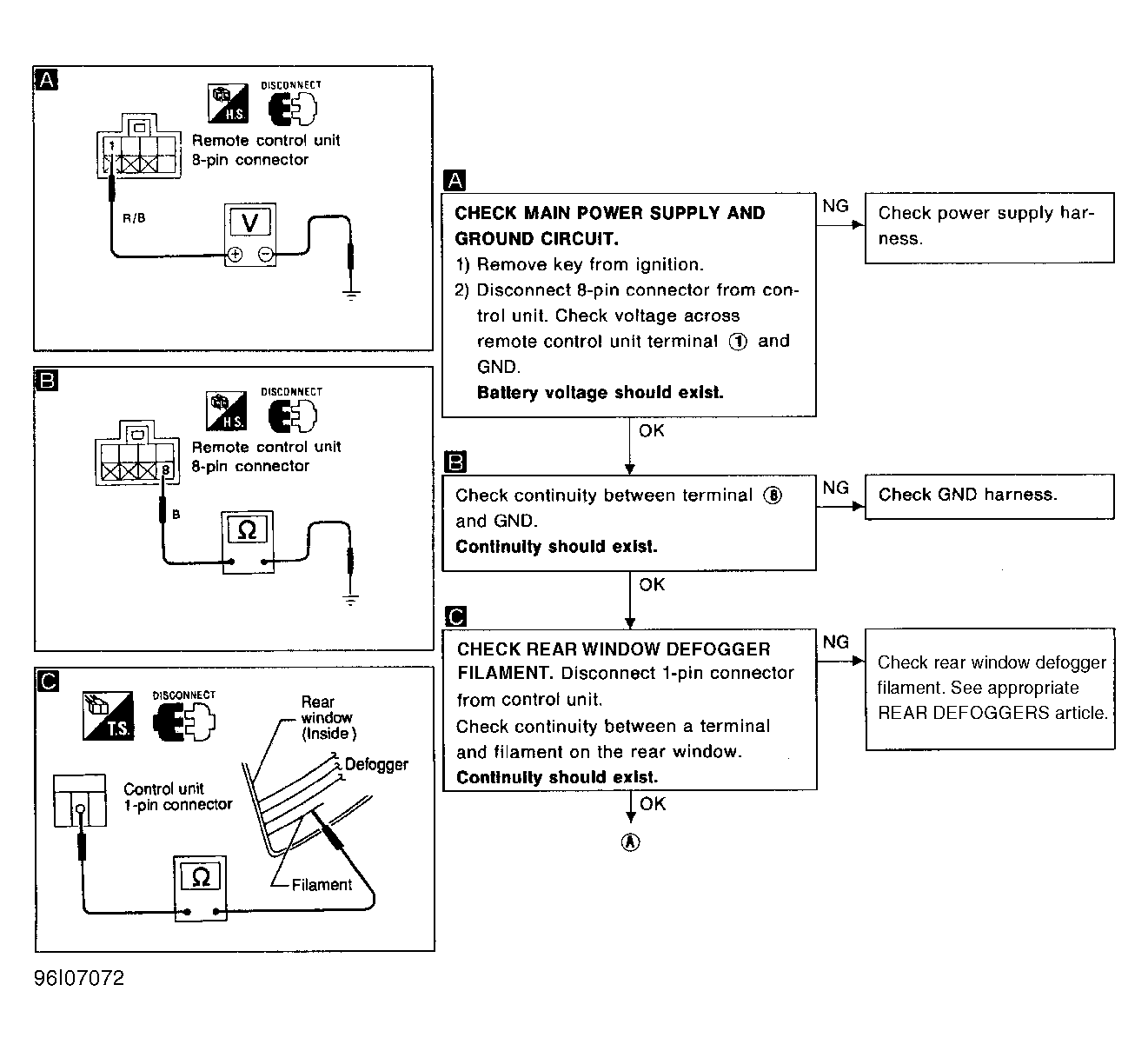

Fig 1: Diagnostic Procedure 2 (1 Of 2)
G96I07072Courtesy of NISSAN MOTOR CO., U.S.A.

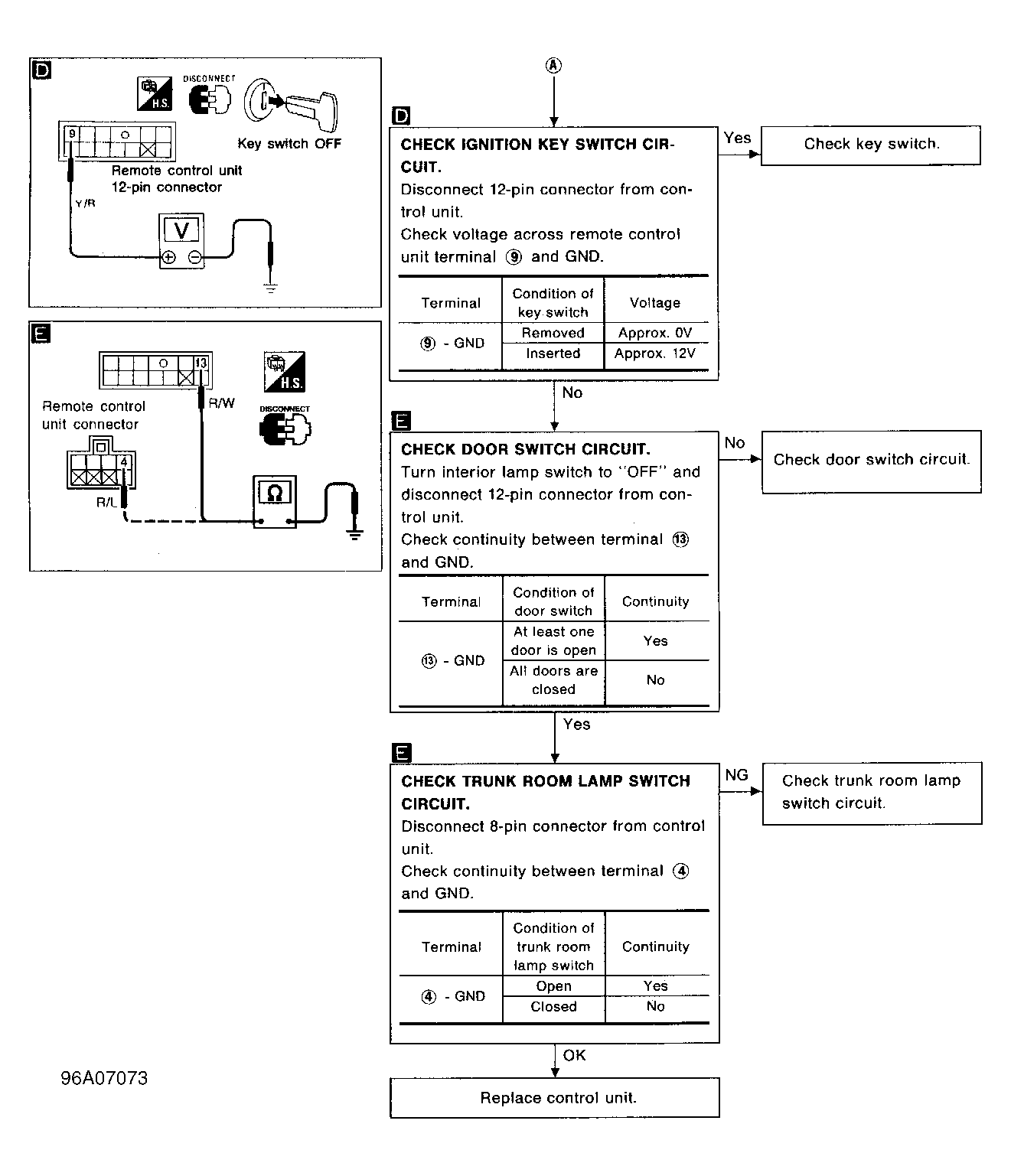

Fig 2: Diagnostic Procedure 2 (2 Of 2)
G96A07073Courtesy of NISSAN MOTOR CO., U.S.A.
