Component Locations

When locating components, refer to the following diagrams. See Fig 1 .

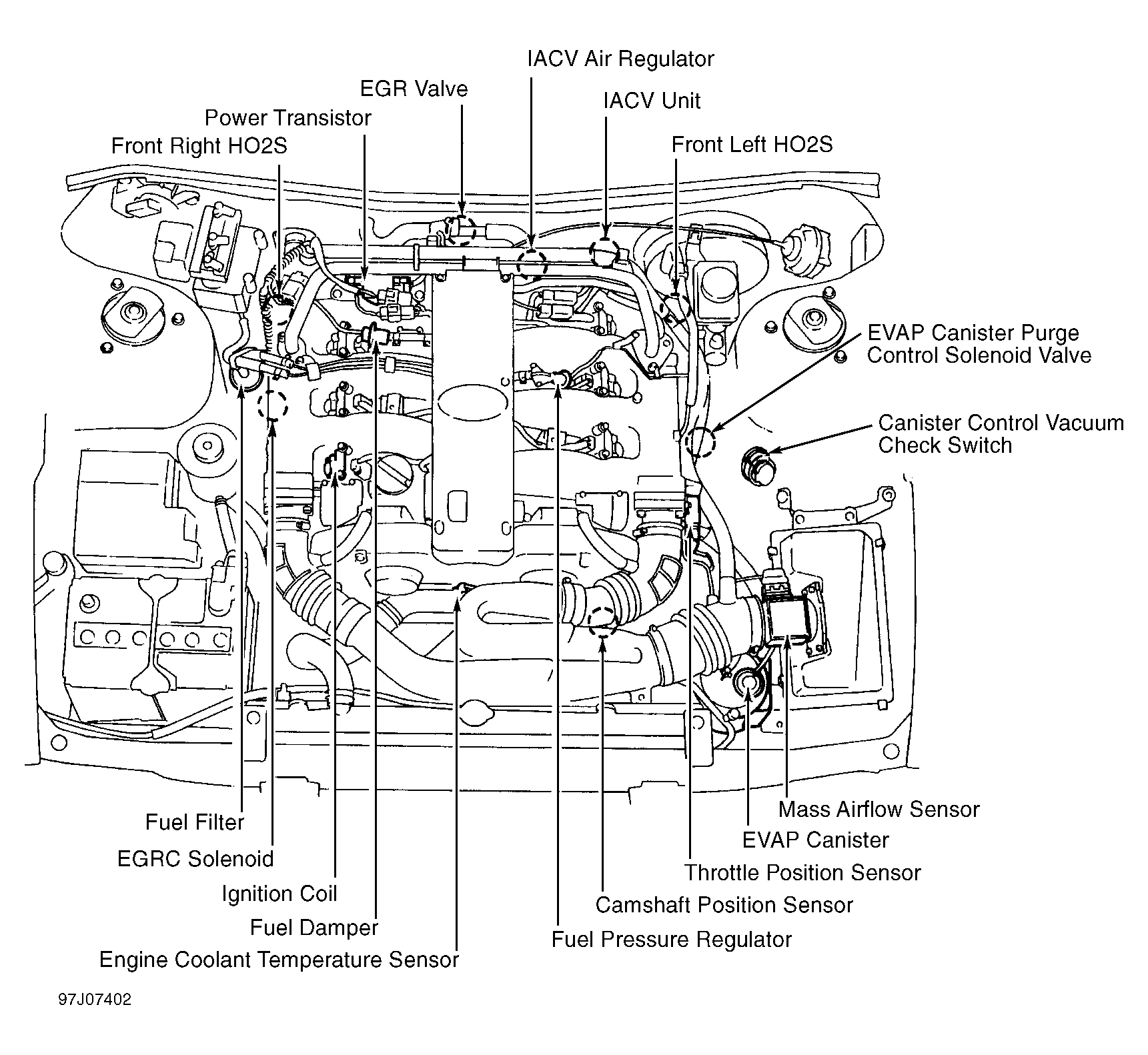

Fig 1: Identifying Underhood Engine Performance Component Locations
G97J07402Courtesy of NISSAN MOTOR CO., U.S.A.
