Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Control Unit | Under center of rear package tray. |

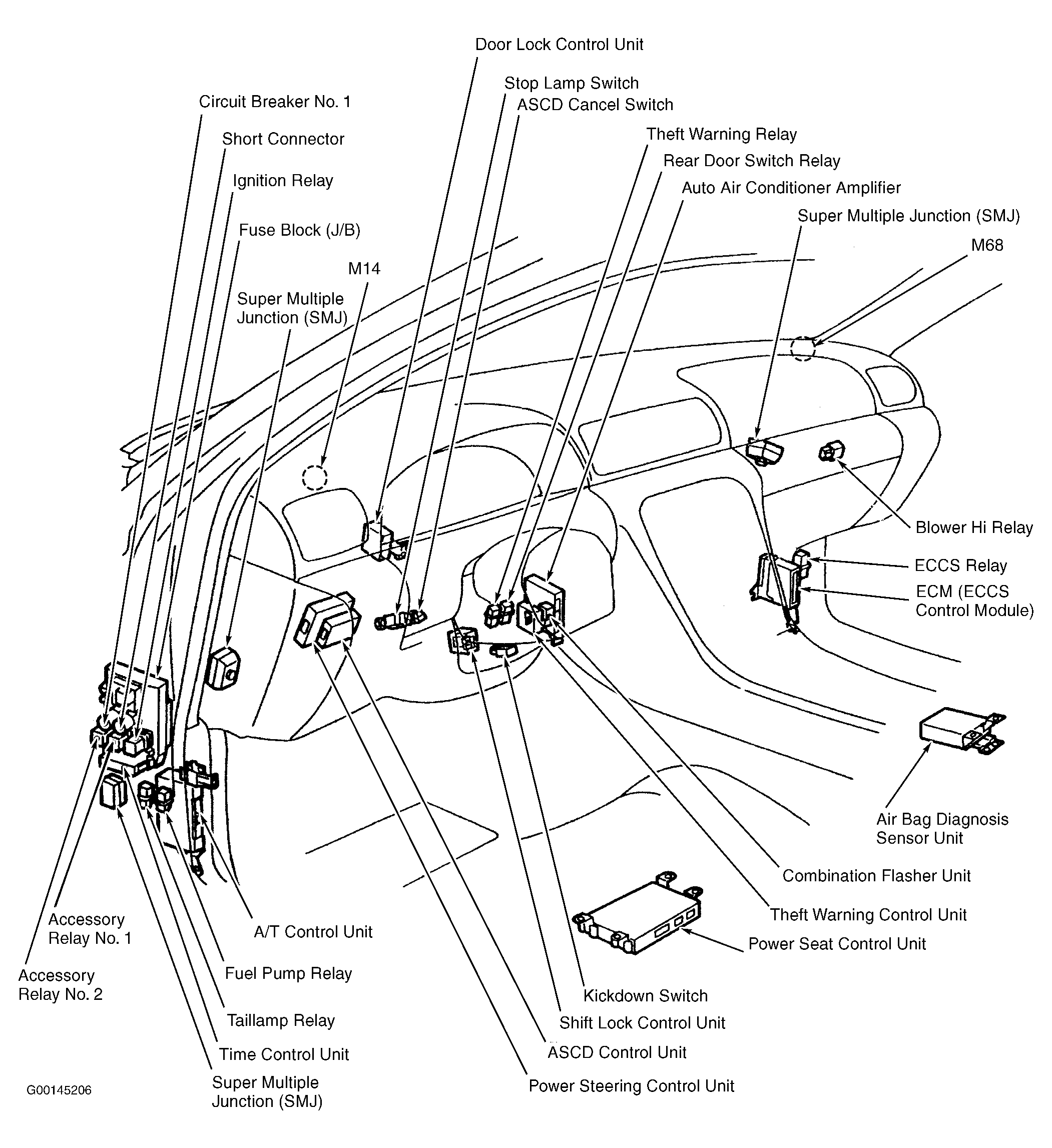

| Air Bag Diagnosis Sensor Unit | Under console, behind parking brake lever. See Figure . |
| ASCD Control Unit | Behind left side of dash, near steering column. See Figure . |
| A/T Control Unit | Behind left kick panel. See Figure . |
| Auto Air Conditioner Amplifier | Behind center of dash. See Figure . |

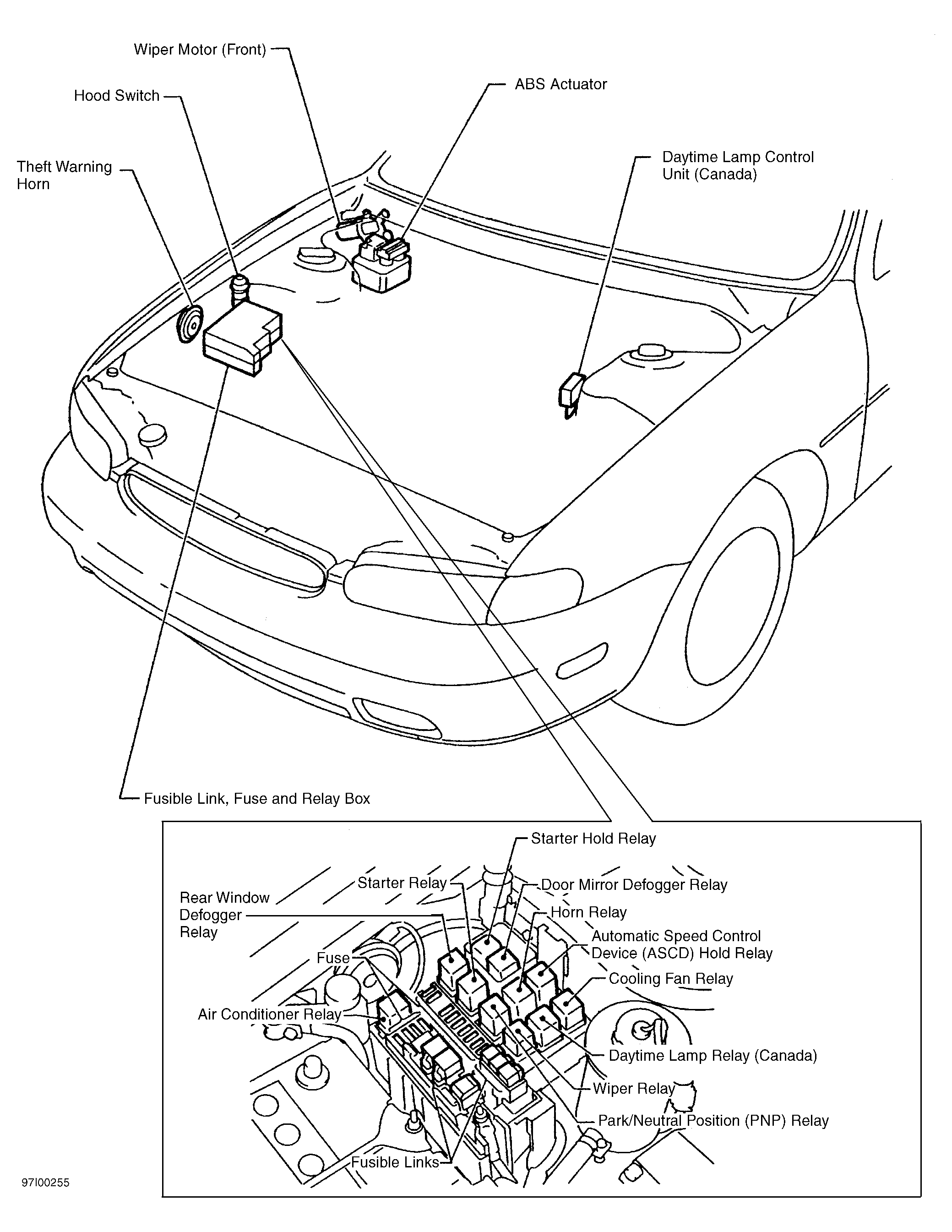

| Daytime Lamp Control Unit (Canada) | Mounted on left front shock tower. See Figure . |
| Door Lock Control Unit | Behind left side of dash. See Figure . |
| ECM (ECCS Control Module) | Behind right kick panel. See Figure . |
| Fan Control Amplifier | Behind right side of dash. |
| Fuel Pump Control Module | On right side of luggage compartment. |
| Headlamp Control Relay Unit | Left rear corner of engine compartment. |
| Multi-Remote Control Unit | On left side of luggage compartment. |
| Power Seat Control Unit | Under driver's seat. See Figure . |
| Power Steering Control Unit | Behind left side of dash. See Figure . |
| Push Control Unit | Behind center of dash. |
| Receiver Control Unit | Behind right center of dash. |
| Shift Lock Control Unit | Behind left side of dash, right of steering column. See Figure . |
| Theft Warning Control Unit | Behind center of dash. See Figure . |
| Time Control Unit | Behind left kick panel. See Figure . |
