Consult UE950 Program Card Procedure Changes (ITB96-021)

CONSULT UE950 PROGRAM CARD PROCEDURE CHANGES

TECHNICAL SERVICE BULLETIN

CONSULT UE950 PROGRAM CARD PROCEDURE CHANGES

Model(s): All Infiniti models

Classification: T & E96-002

Section: Tool & Equipment

Bulletin No.: ITB96-021

Date: May 8, 1996

SERVICE INFORMATION

It is necessary to perform two procedure changes when using the UE950 Program Card. The first is a change in the Freeze Frame data screen when performing emissions diagnosis. The second change is necessary when erasing a system to enable loading of a different system into CONSULT memory. Both procedural changes are described below.

SERVICE PROCEDURE

1. Freeze Frame Data Change When Performing Emissions Diagnosis
   1. During emission system diagnosis using CONSULT and the UE950 Program Card, "Freeze Frame" information for "PURG CONT/V & S/V" is incorrectly labeled when displayed and/or printed. The following table provides the corrected information.
      FREEZE FRAME DATA INFORMATION



      Applied Vehicles	Malfunction Item	Self Diagnosis Results ScreenLabel/Printout	IncorrectFreeze Data Screen Label/ Printout	Correct Freeze Data Screen Label/ Printout
      1996 - all models	PURG CONTN & SV	PURG CONTN & (P0443)	PURG VOLUME CONTV/V (P0443)	PURG CONT/V & SV (P0443)

2. Erasing One System and Loading a Different System Into CONSULT Memory
   1. When using CONSULT with the UE950 Program Card and there is a need to erase a system to make more memory space available to load a new system, selecting "ENGINE" to erase will cause a error message to appear. The unit will ask to install a UE941S Program Card that does not exist. To avoid this error message from occurring, do not select "ENGINE" as the system to erase.

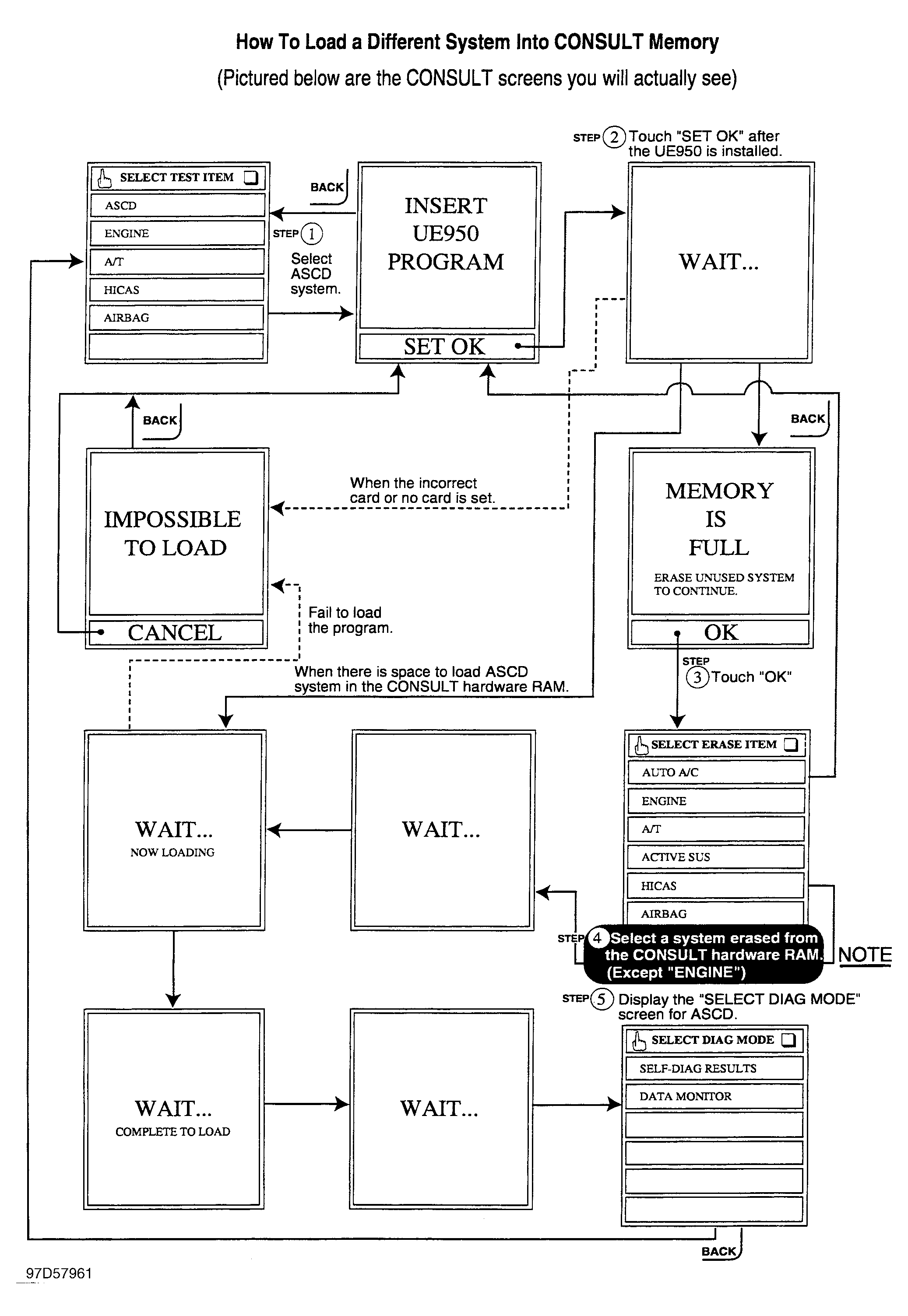

   2. To make memory space available, select any of the other systems displayed. Refer to the CONSULT system instruction change in Fig. Fig 1 . Please pay special attention to Step 4.
