Consult UE951 Program Card Loading Instructions (ITB96-022)

CONSULT UE951 PROGRAM CARD LOADING INSTRUCTIONS

TECHNICAL SERVICE BULLETIN

CONSULT UE951 PROGRAM CARD LOADING INSTRUCTIONS

Model(s): Infiniti models

Classification: T & E96-003

Section: Tool & Equipment

Bulletin No.: TB96-022

Date: May 1, 1996

SERVICE INFORMATION

An update to the UE950 CONSULT Program Card is being released to dealers during the week of March 25, 1996. Special loading instructions for the new UE951 Program Card must be followed to ensure proper CONSULT operation. Both the UE950 and UE951 Program Cards are required to properly diagnose 1996 and selected 1997 vehicles.

See Fig 2 and Fig 3 to properly load the new UE951 Program Card.

FEATURES OF THE UE951 PROGRAM CARD

The UE951 Program Card has been introduced as a subcard for the UE950 Program Card. The UE951 Program Card contains revised engine, ABS, IVMS and new All mode 4WD diagnostic software. Use this card in combination with the UE950 card to update the above mentioned diagnostic software when loading CONSULT.

UE951 PROGRAM CARD UPDATE INFORMATION

The following table gives the update information contained in the UE951 Program Card.

Reference Section - Page of the Consult Operation Manual	Updated Information
Introduction & Sub Mode - 10, 11	The operation for loading the program card has been updated.

HOW TO LOAD

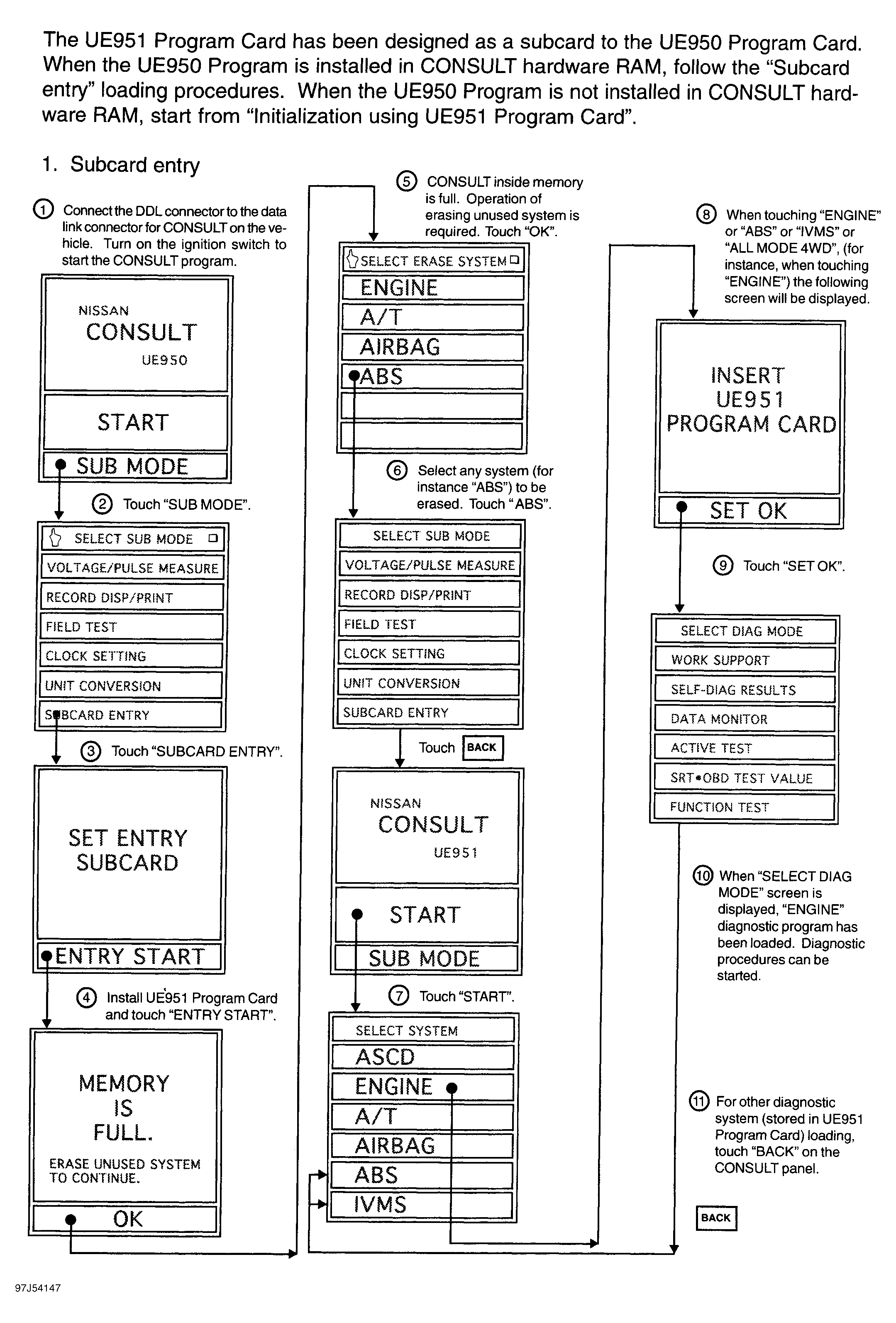

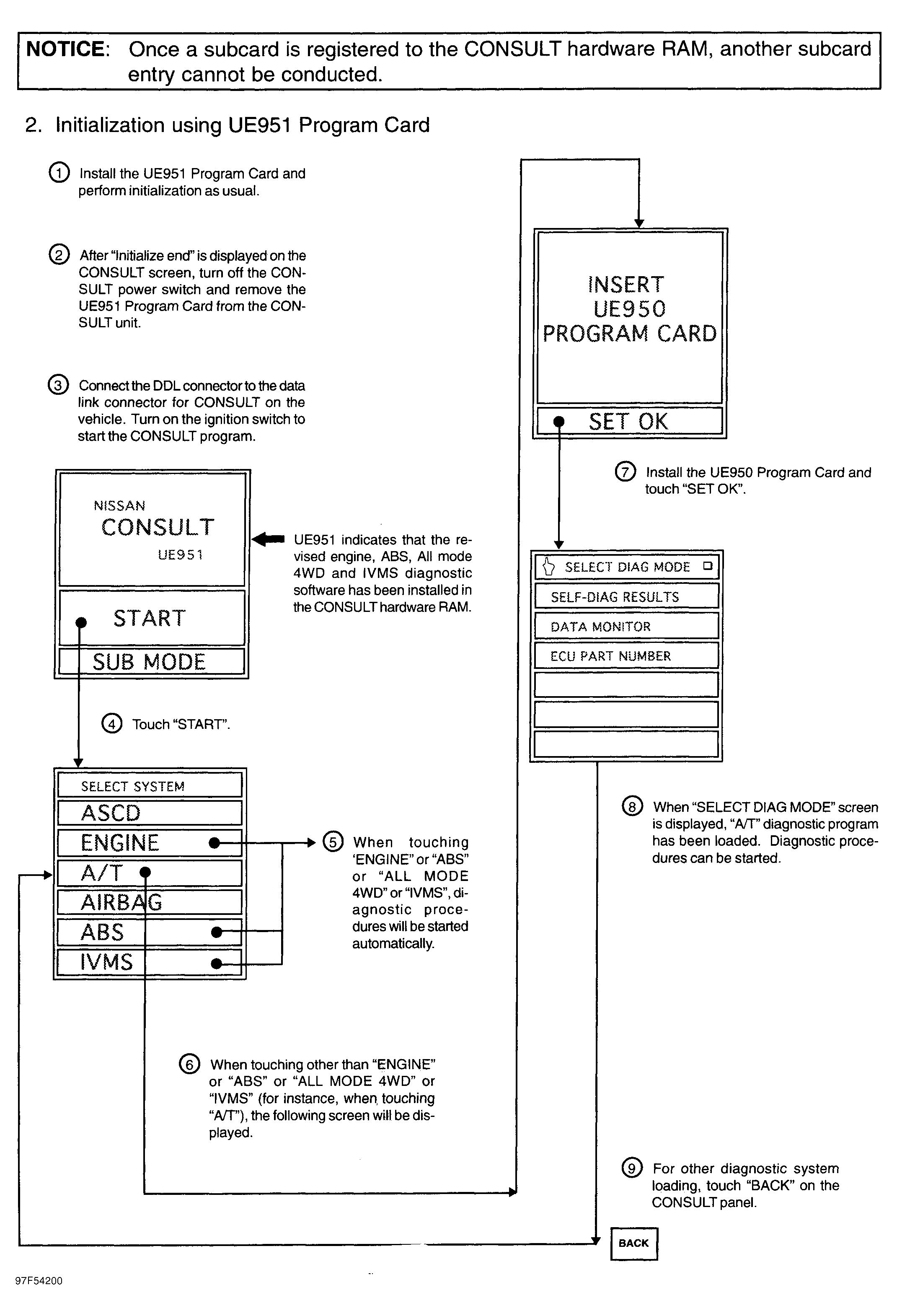

The UE951 Program Card has been designed as a subcard to the UE950 Program Card. When the UE950 Program is installed in CONSULT hardware RAM, follow the "Subcard entry" loading procedures. When the UE950 Program is not installed in CONSULT hardware RAM, start from "Initialization using UE951 Program Card". See Fig 2 and Fig 3 .
