Component Locations

COMPONENT LOCATIONS

Component Location
Body Control Module (BCM) Behind Driver's Side Of Instrument Panel

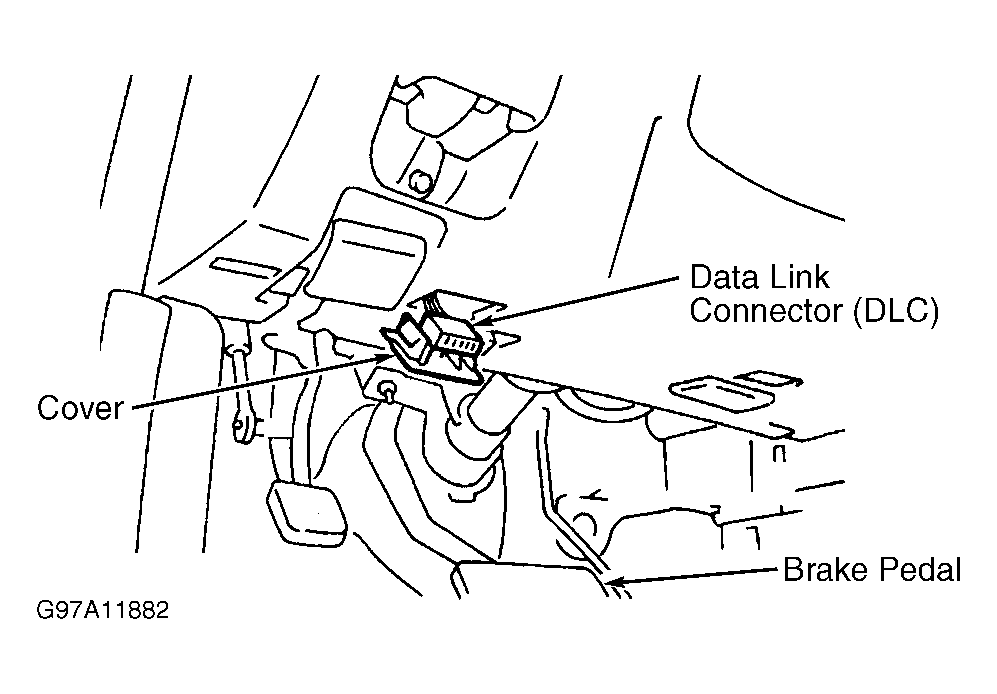

Data Link Connector (DLC) (1) Interior Fuse Panel
LCU01 Driver's Door
LCU02 Front Passenger's Door
LCU03 Right Rear Door
LCU04 Left Rear Door
LCU05 Under Driver's Seat
(1) See Figure .
