System Tests

NOTE: If battery or driver's seat control unit (LCU 05) are disconnected, initialization procedure MUST be performed before memory button can be programmed. See INITIALIZATION under PROGRAMMING.

WIRE COLOR ABBREVIATIONS ⁽¹⁾

Abbreviation

Color

B

Black

G

Green

L

Blue

P

Pink

R

Red

W

White

Y

Yellow

BR

Brown

GY

Gray

LG

Light Green

OR

Orange

SB

Sky Blue

⁽¹⁾	Listed wire color abbreviations are used in the following diagnostic procedures.

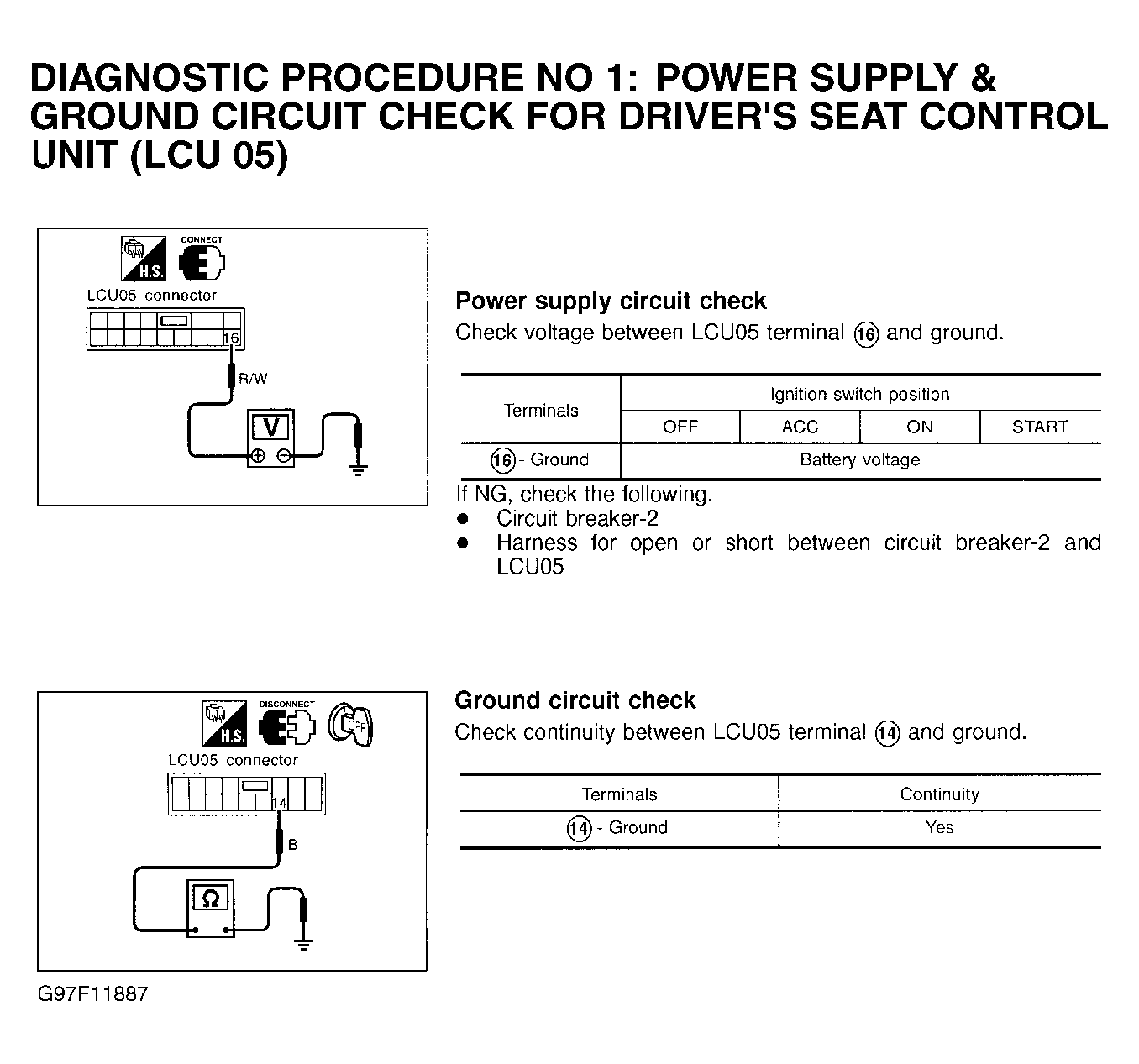

Fig 1: Diagnostic Procedure No. 1: Power Supply & Ground Circuit Check For Driver's Seat Control Unit (LCU 05)

G97F11887

Courtesy of NISSAN MOTOR CO., U.S.A.

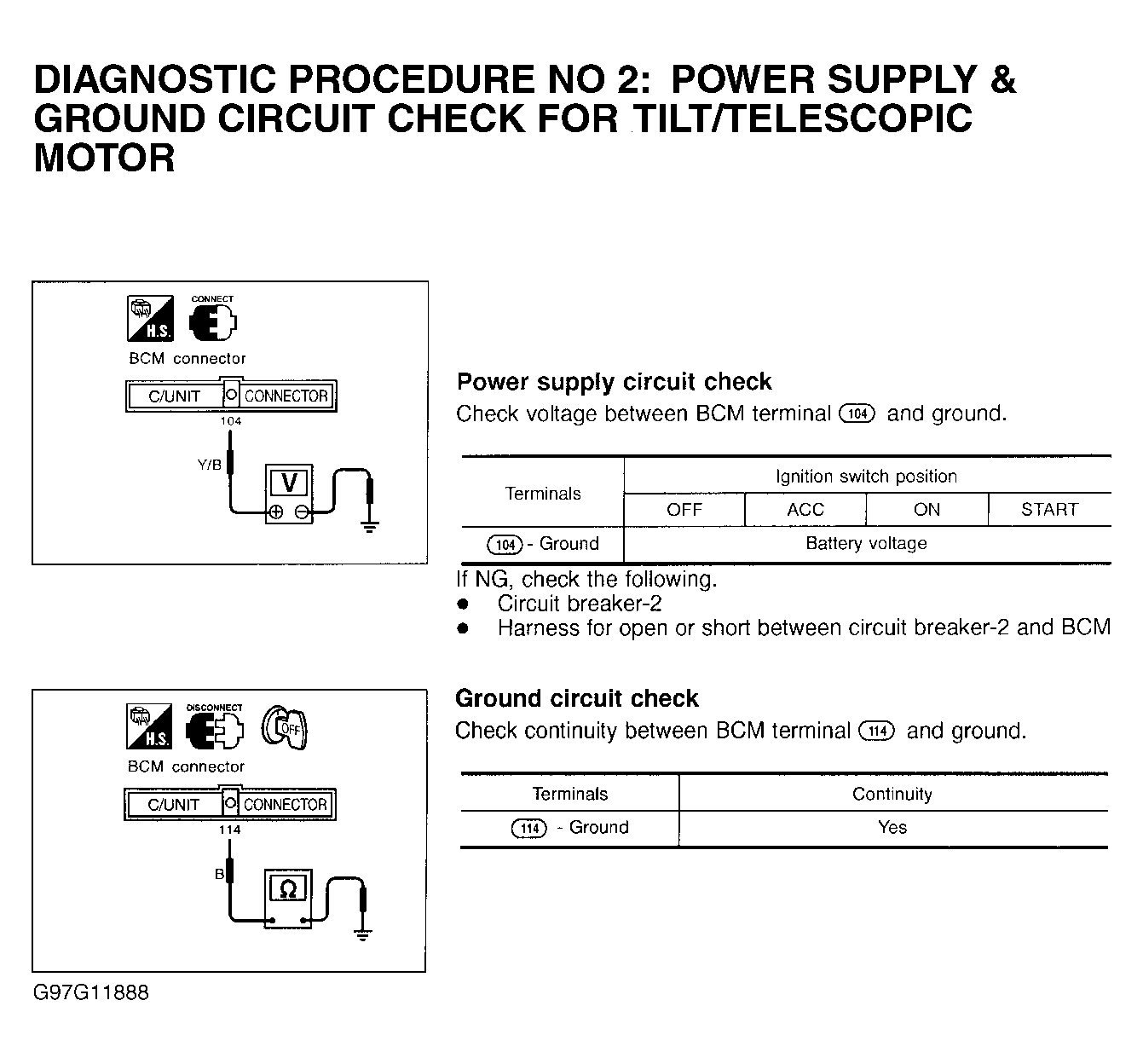

Fig 2: Diagnostic Procedure No. 2: Power Supply & Ground Circuit Check For Tilt/Telescopic Motor

G97G11888

Courtesy of NISSAN MOTOR CO., U.S.A.

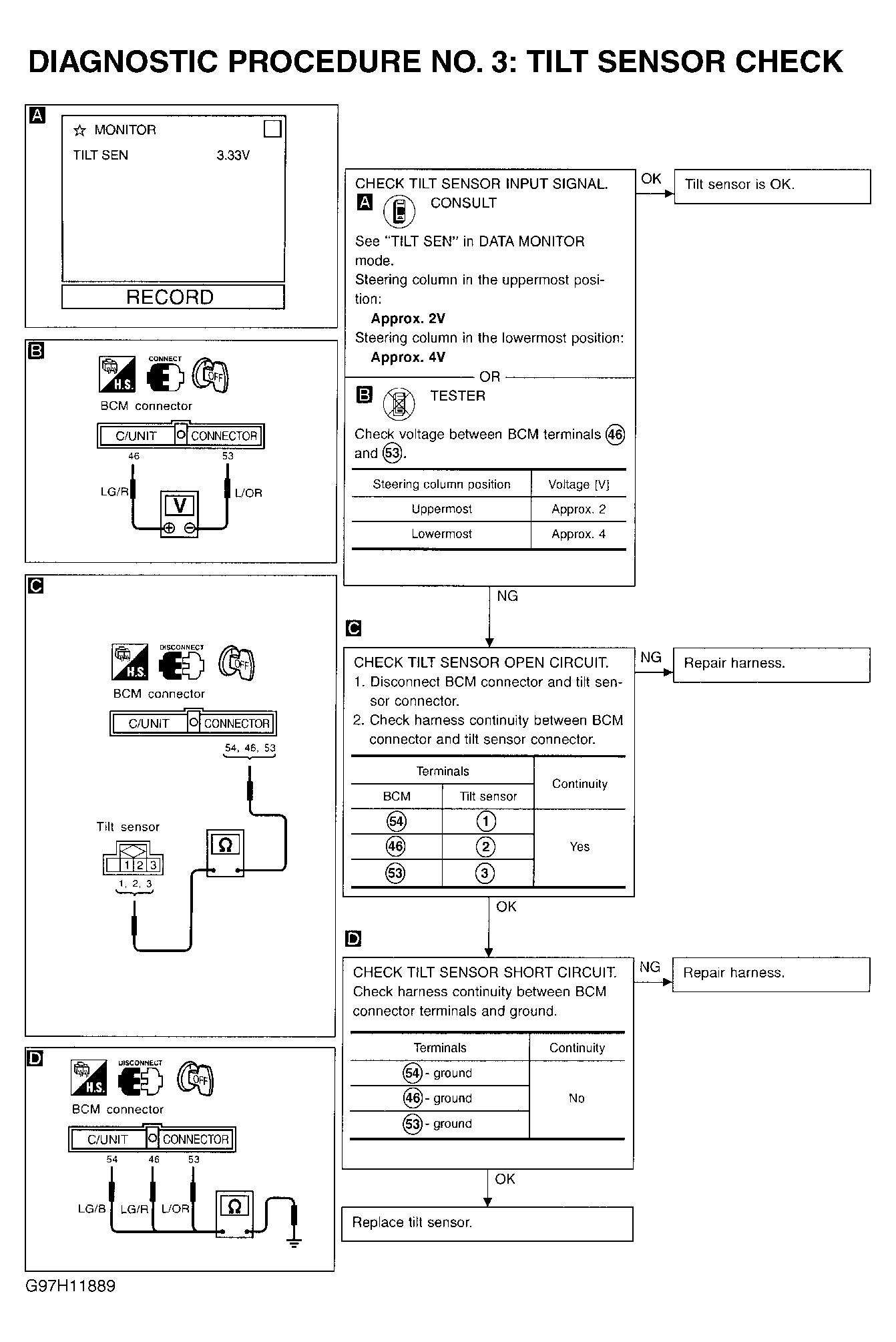

Fig 3: Diagnostic Procedure No. 3: Tilt Sensor Check

G97H11889

Courtesy of NISSAN MOTOR CO., U.S.A.

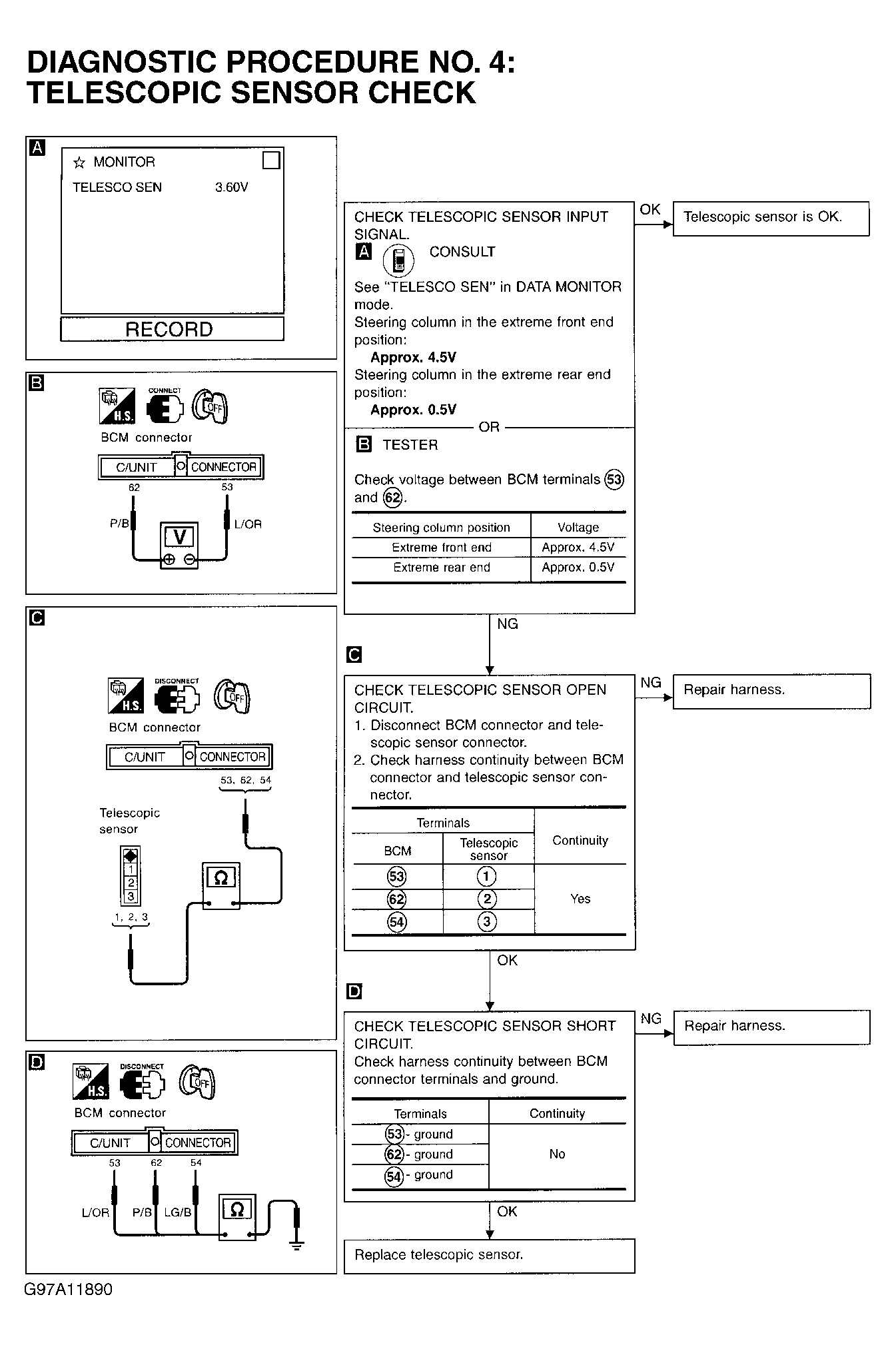

Fig 4: Diagnostic Procedure No. 4: Telescopic Sensor Check

G97A11890

Courtesy of NISSAN MOTOR CO., U.S.A.

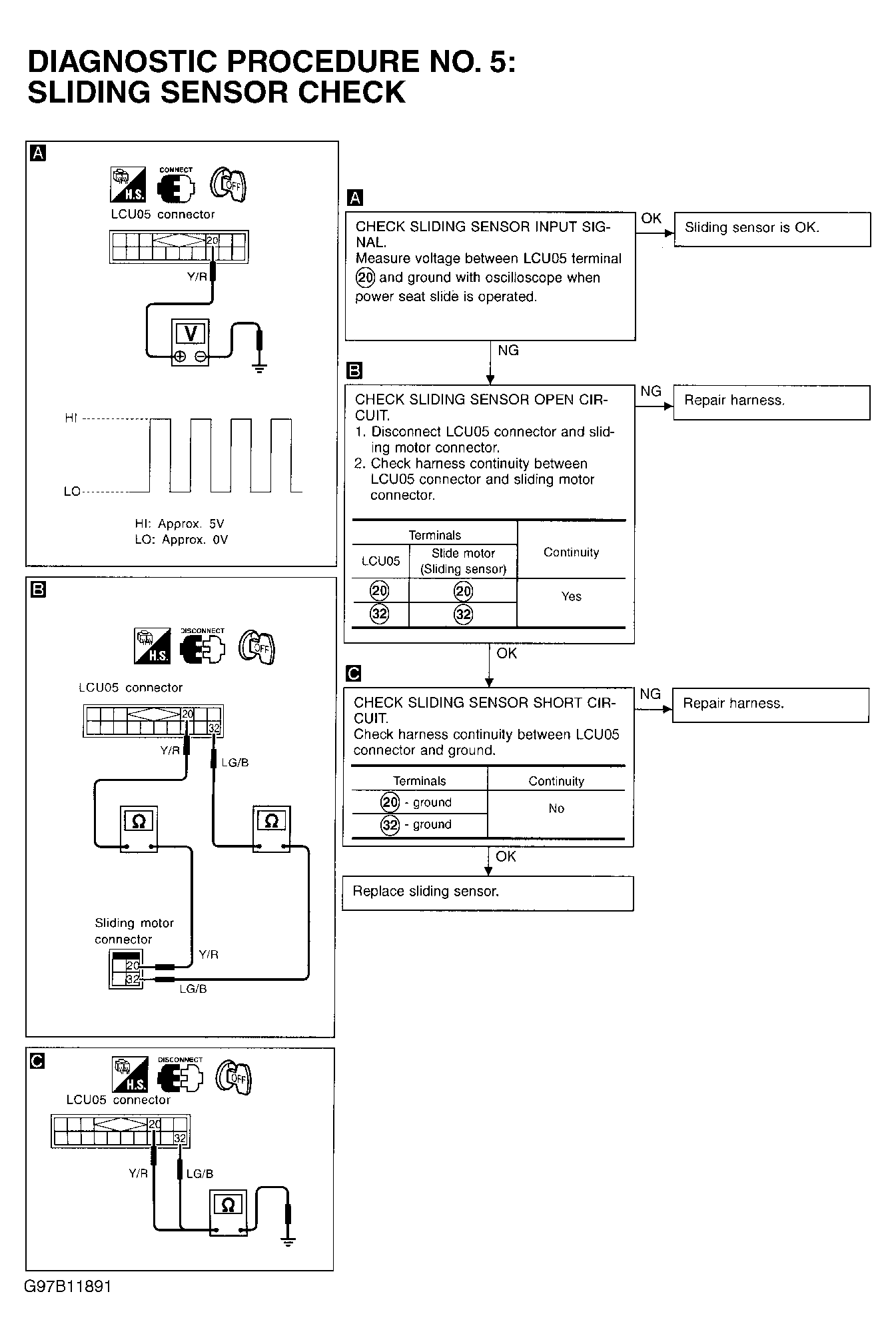

Fig 5: Diagnostic Procedure No. 5: Sliding Sensor Check

G97B11891

Courtesy of NISSAN MOTOR CO., U.S.A.

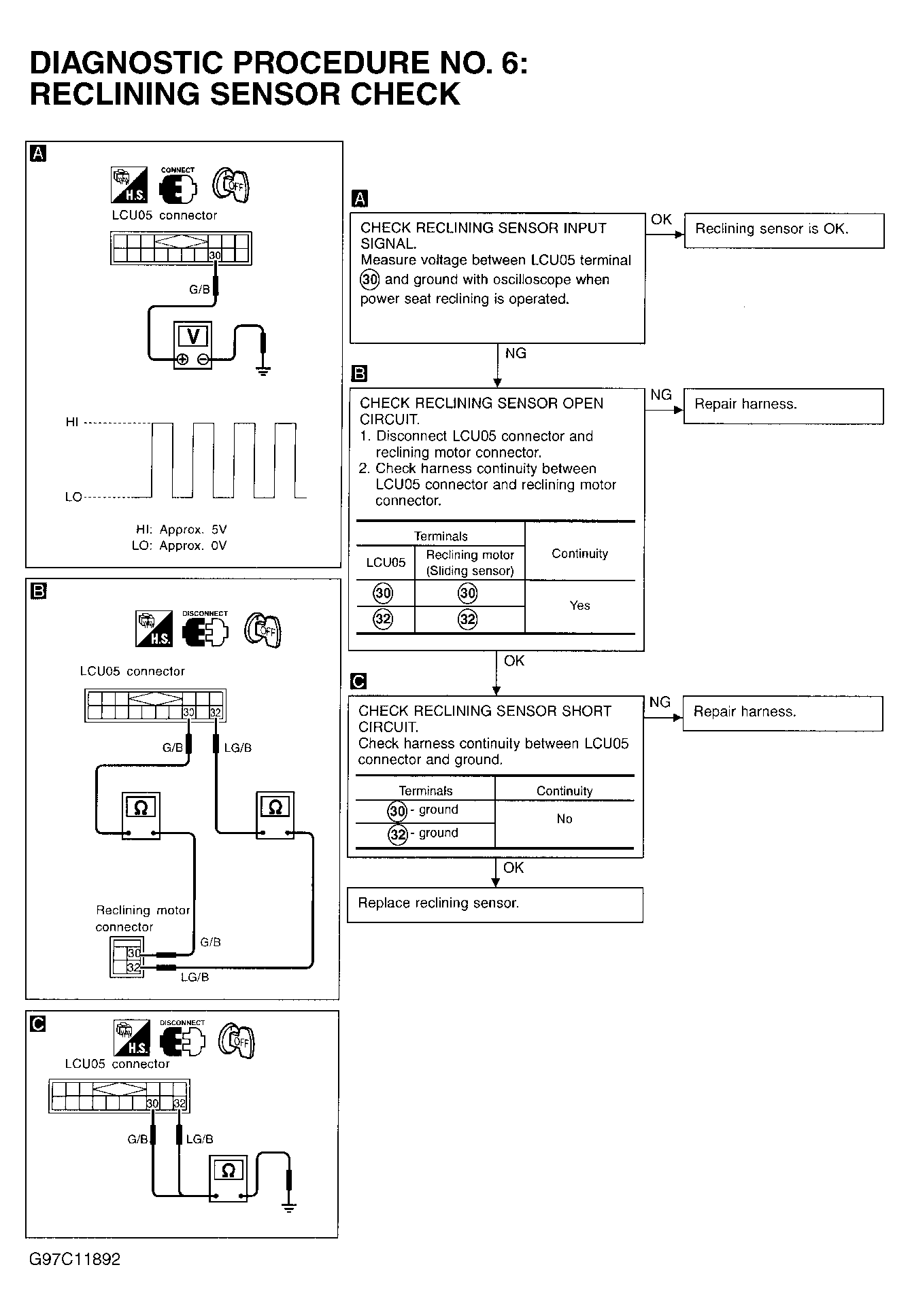

Fig 6: Diagnostic Procedure No. 6: Reclining Sensor Check

G97C11892

Courtesy of NISSAN MOTOR CO., U.S.A.

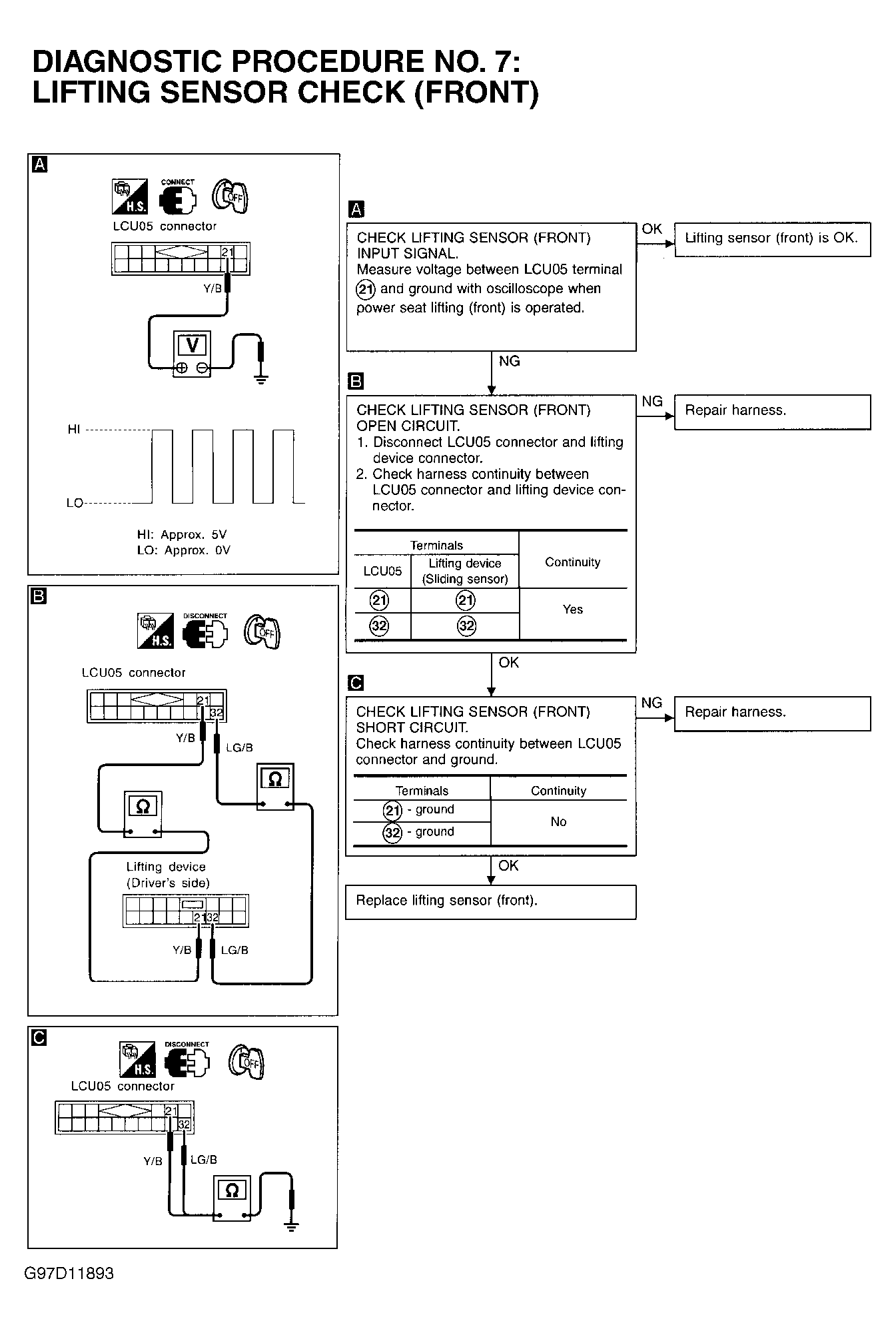

Fig 7: Diagnostic Procedure No. 7: Lifting Sensor Check (Front)

G97D11893

Courtesy of NISSAN MOTOR CO., U.S.A.

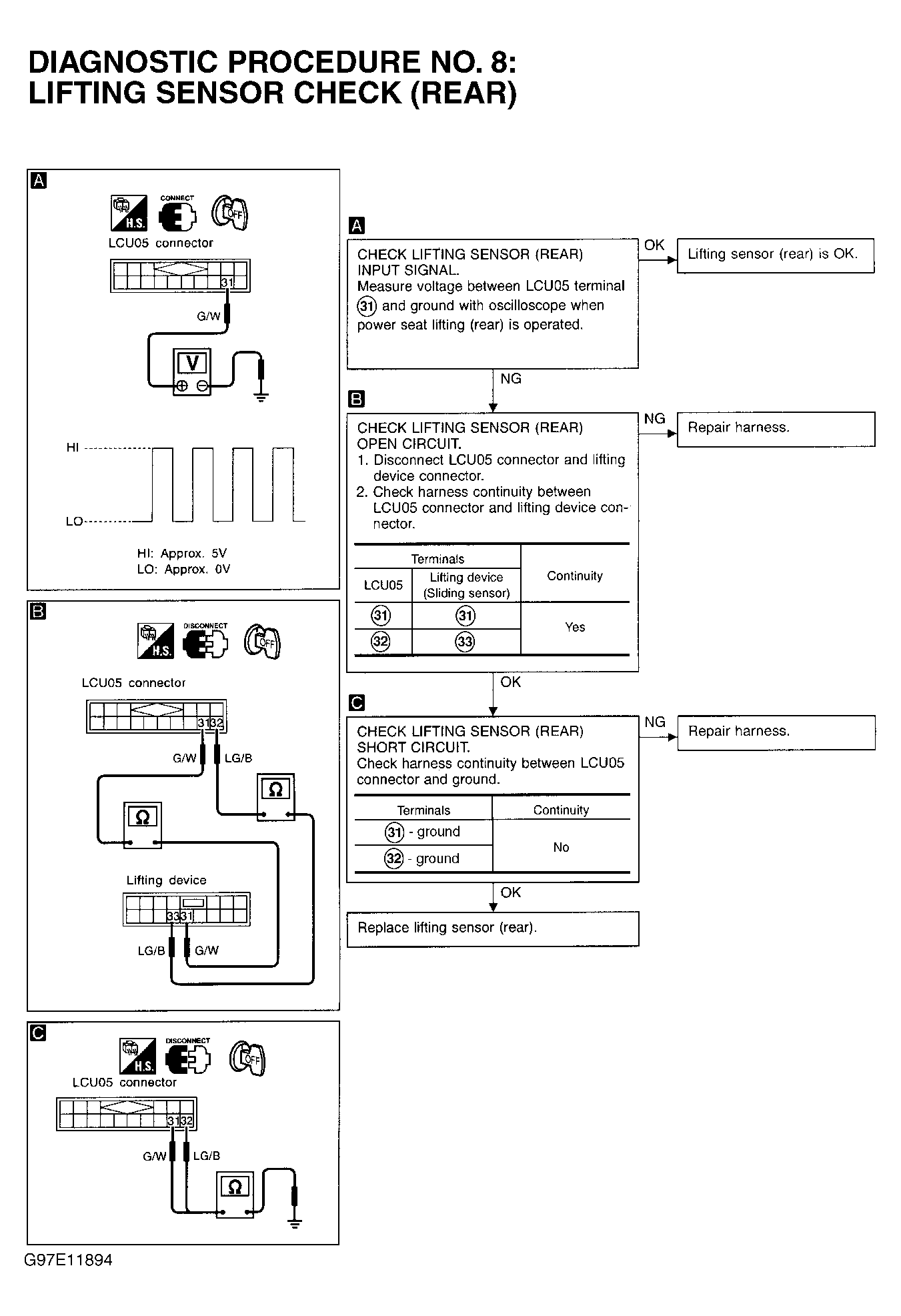

Fig 8: Diagnostic Procedure No. 8: Lifting Sensor Check (Rear)

G97E11894

Courtesy of NISSAN MOTOR CO., U.S.A.

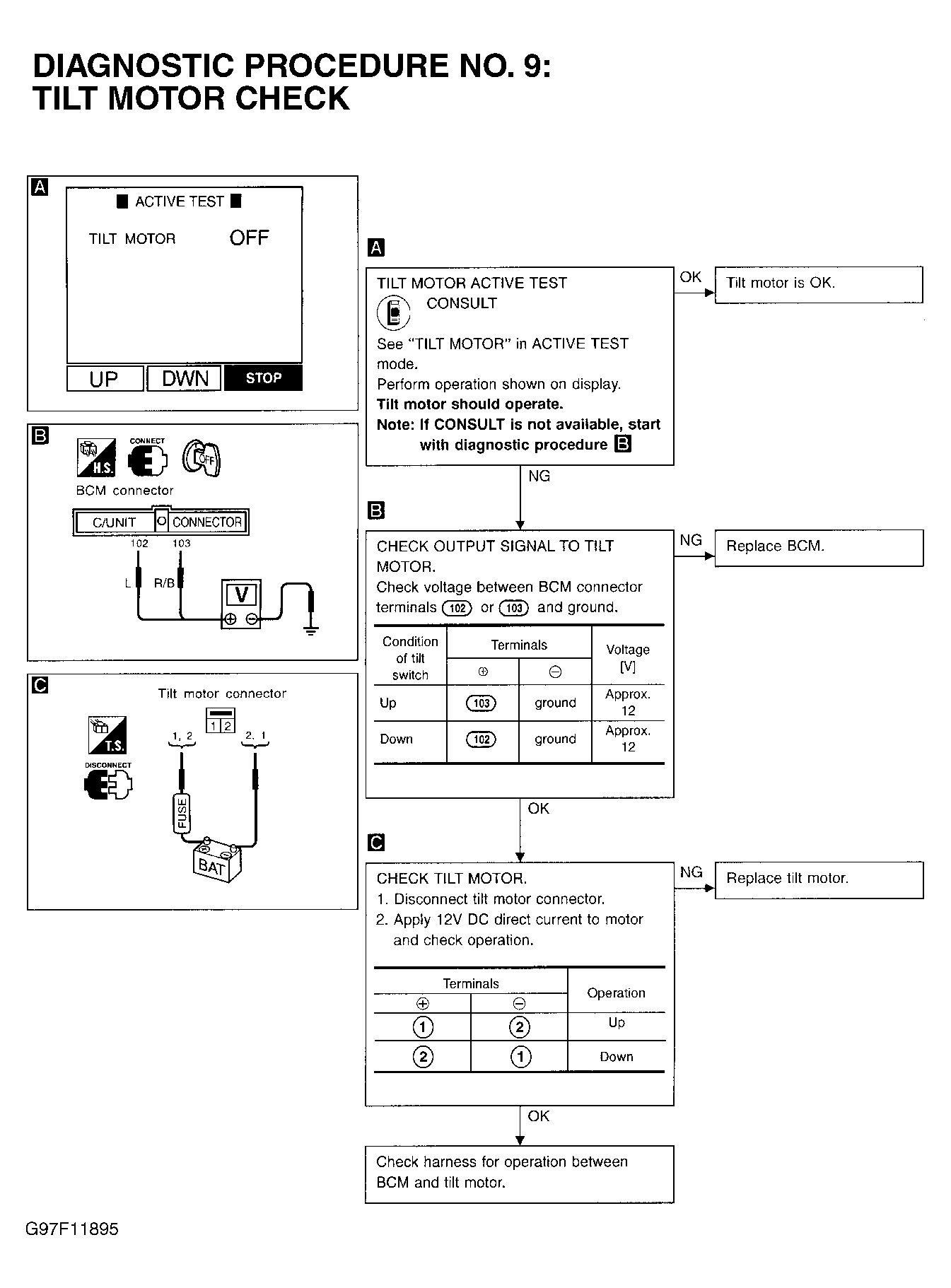

Fig 9: Diagnostic Procedure No. 9: Tilt Motor Check

G97F11895

Courtesy of NISSAN MOTOR CO., U.S.A.

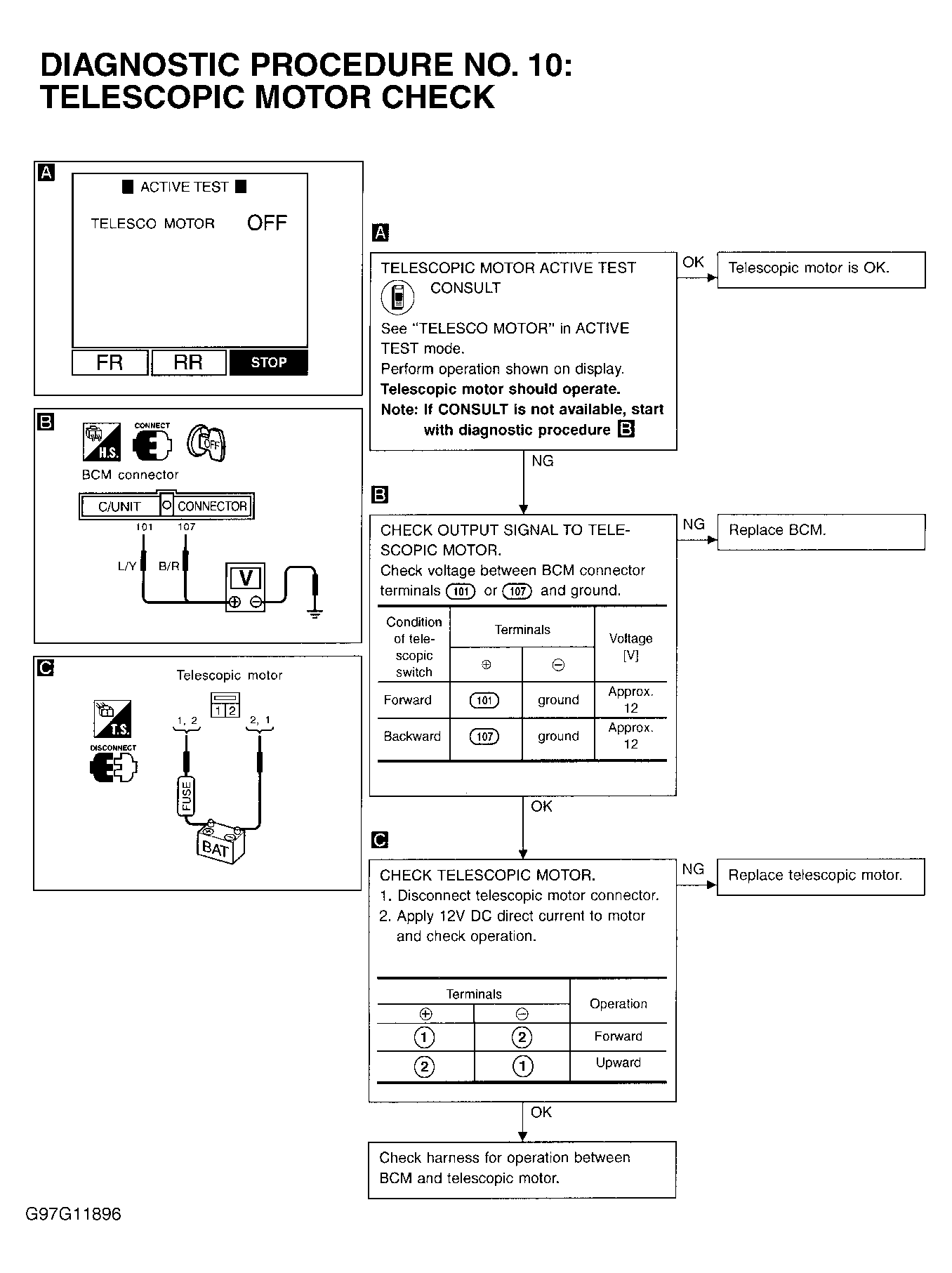

Fig 10: Diagnostic Procedure No. 10: Telescopic Motor Check

G97G11896

Courtesy of NISSAN MOTOR CO., U.S.A.

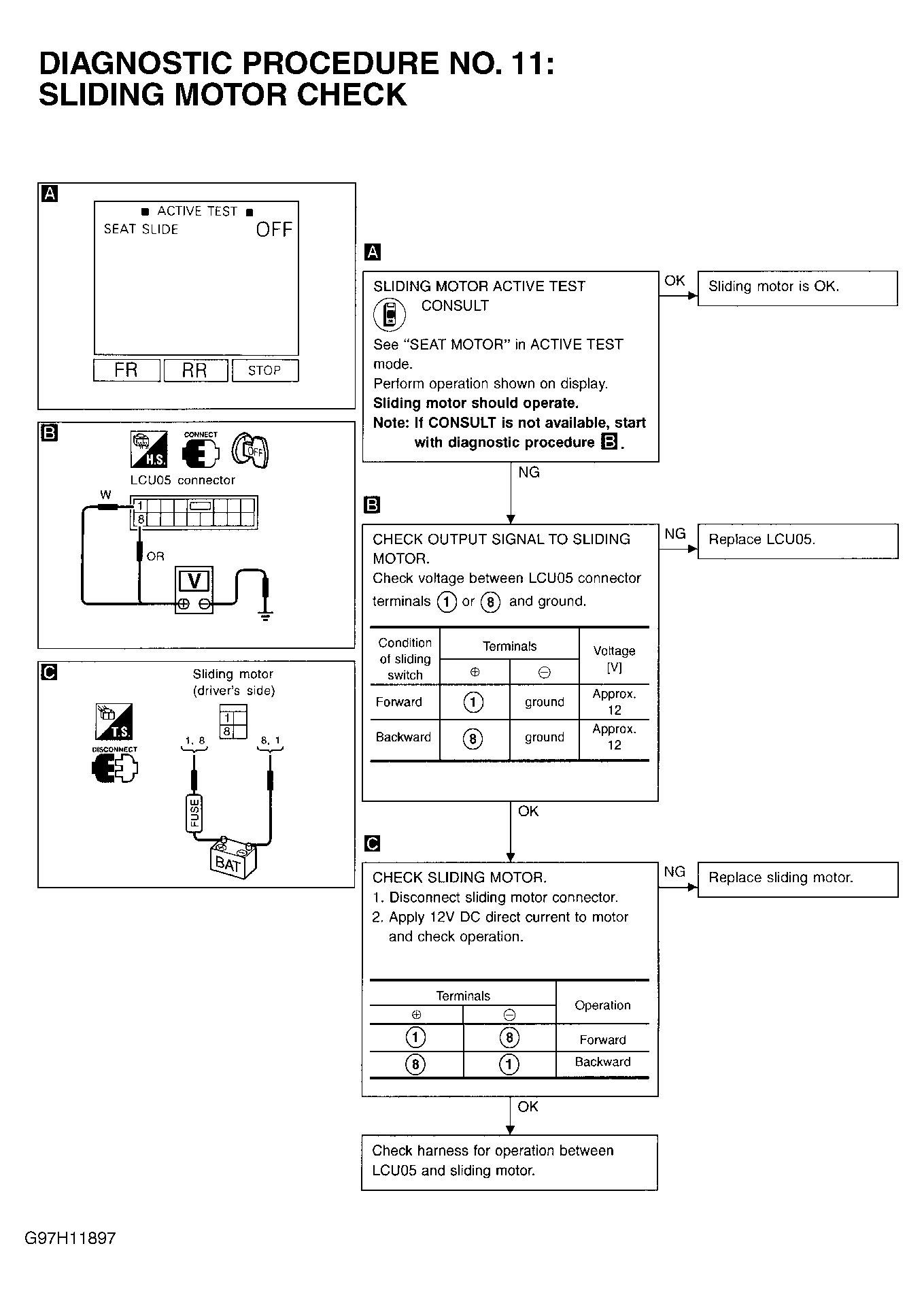

Fig 11: Diagnostic Procedure No. 11: Sliding Motor Check

G97H11897

Courtesy of NISSAN MOTOR CO., U.S.A.

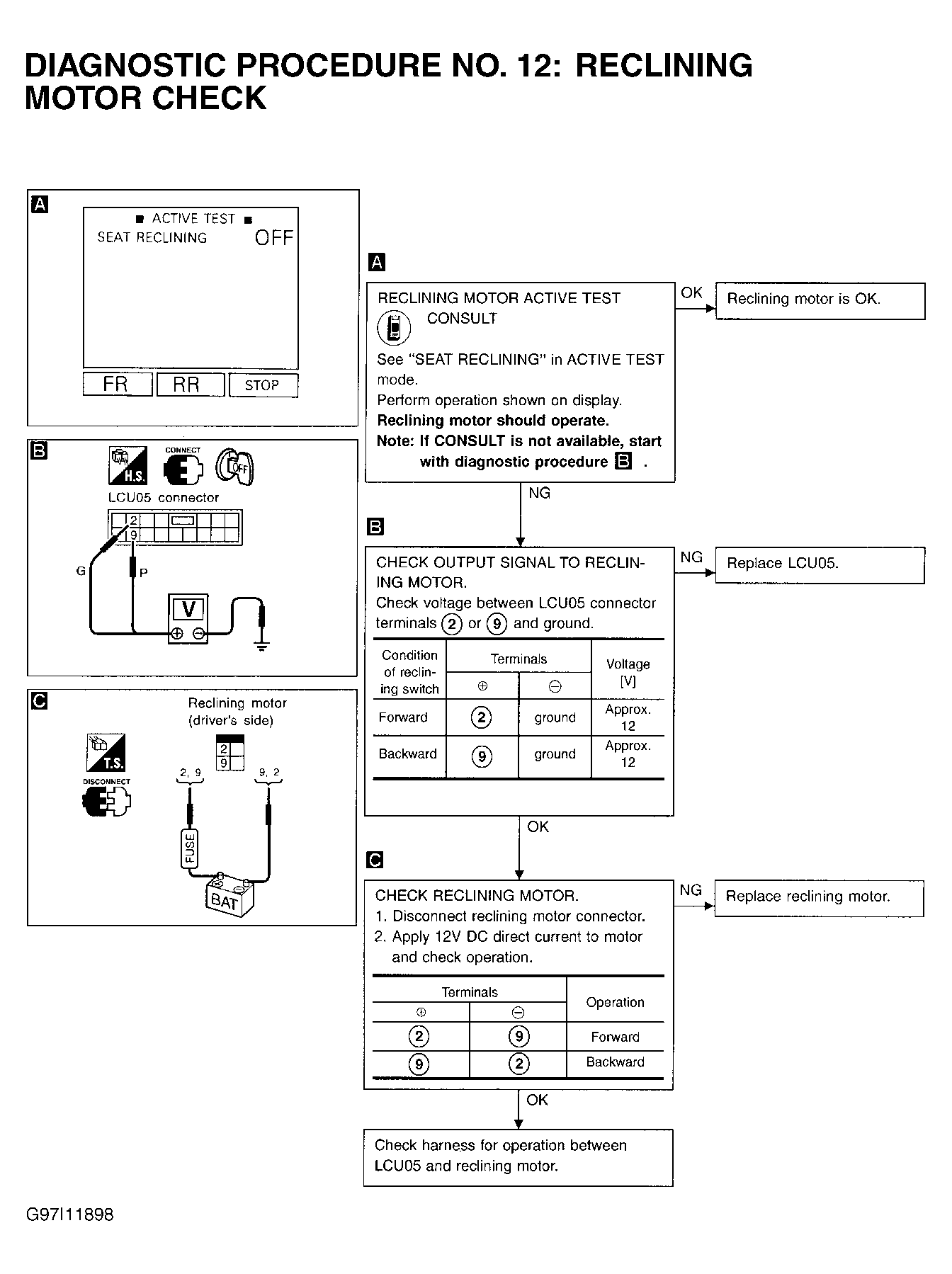

Fig 12: Diagnostic Procedure No. 12: Reclining Motor Check

G97I11898

Courtesy of NISSAN MOTOR CO., U.S.A.

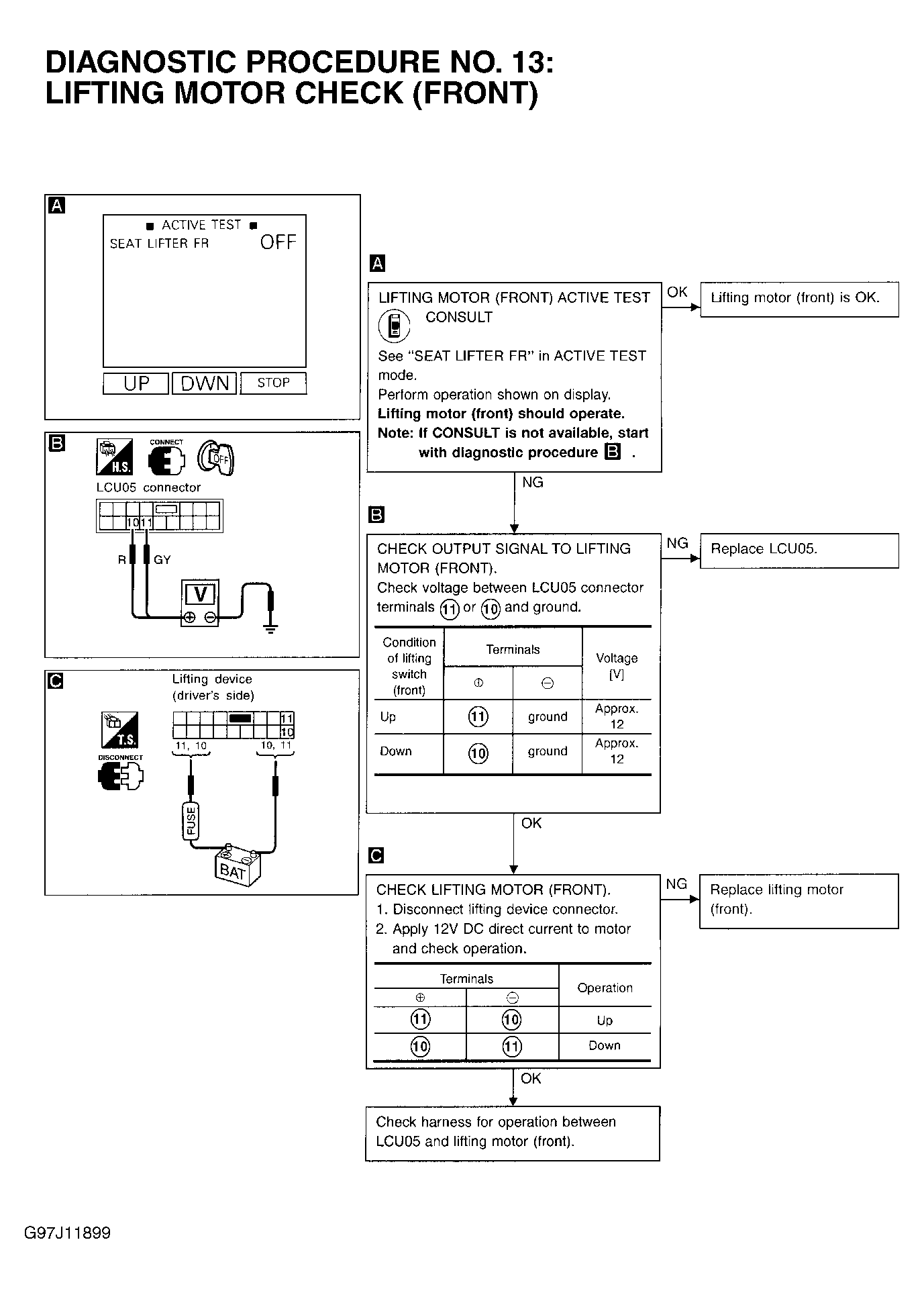

Fig 13: Diagnostic Procedure No. 13: Lifting Motor Check (Front)

G97J11899

Courtesy of NISSAN MOTOR CO., U.S.A.

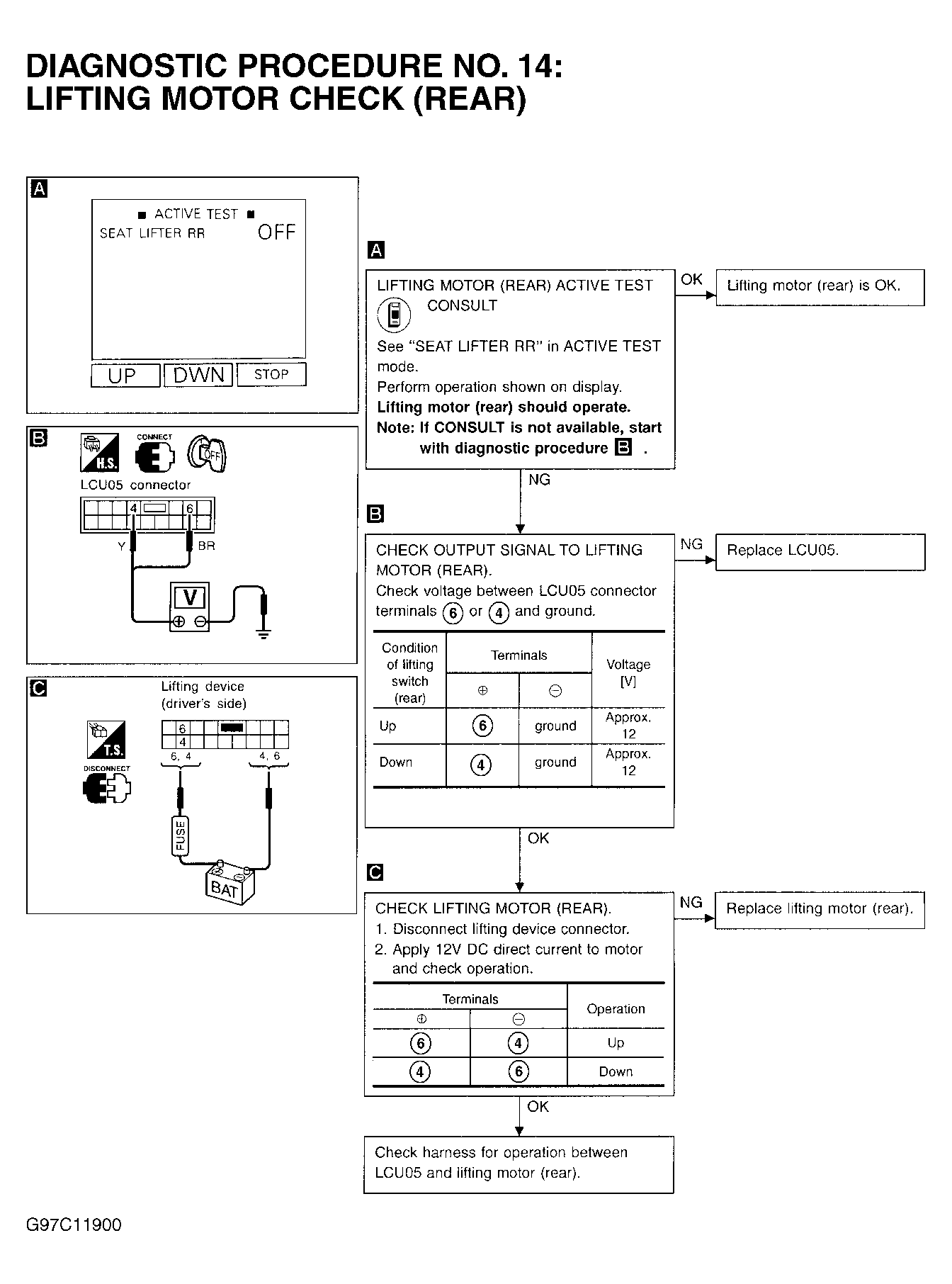

Fig 14: Diagnostic Procedure No. 14: Lifting Motor Check (Rear)

G97C11900

Courtesy of NISSAN MOTOR CO., U.S.A.

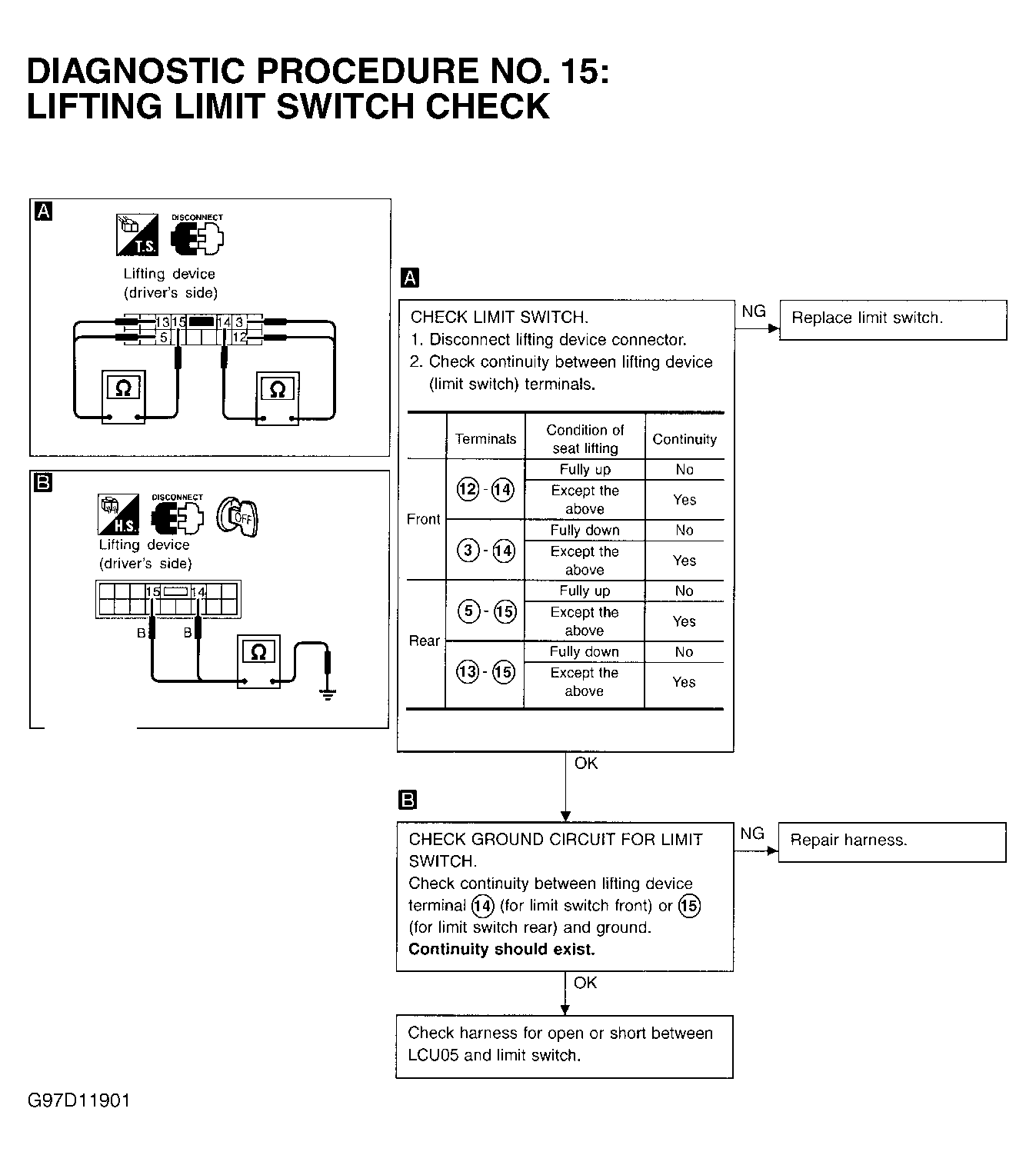

Fig 15: Diagnostic Procedure No. 15: Lifting Limit Switch Check

G97D11901

Courtesy of NISSAN MOTOR CO., U.S.A.

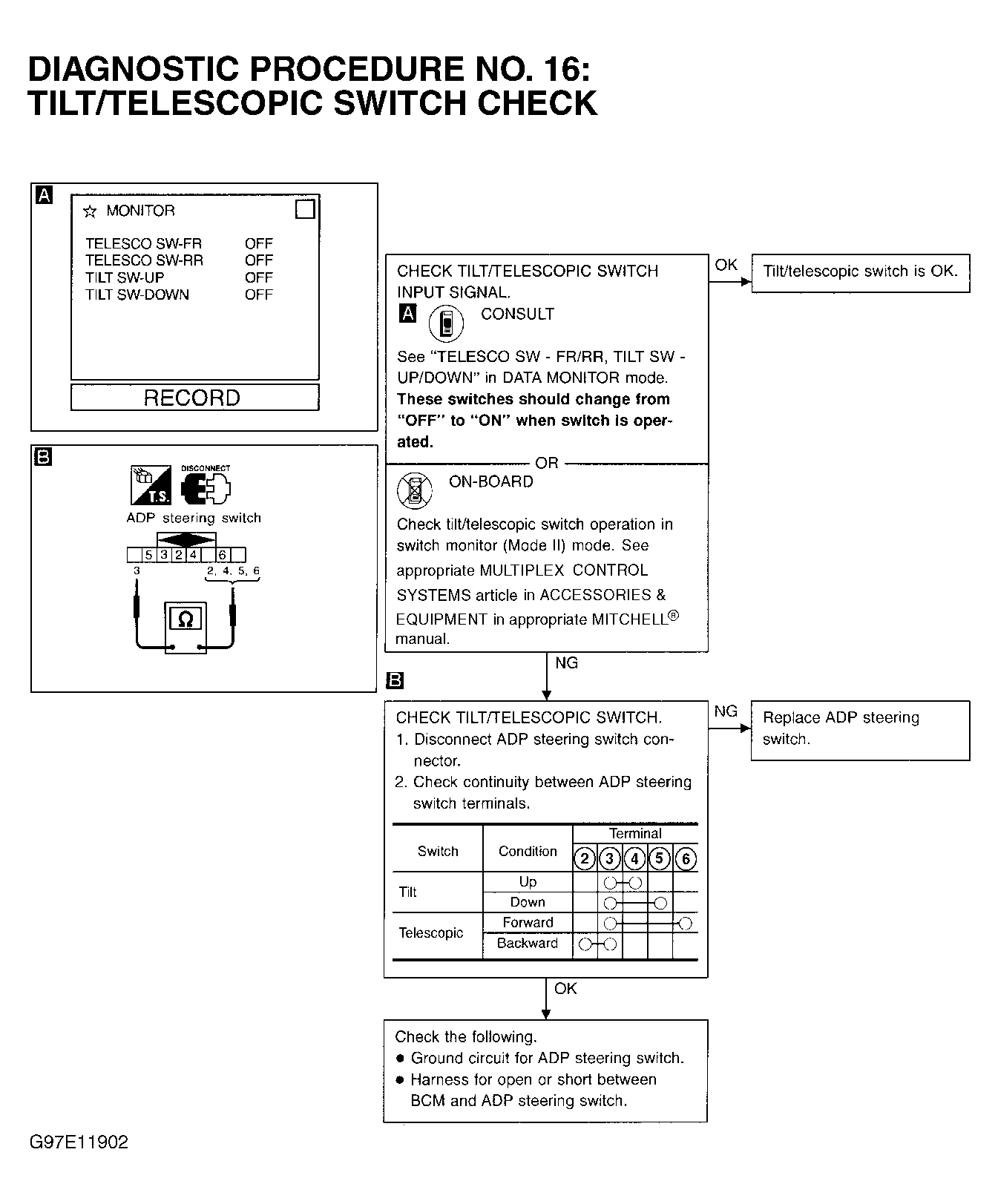

Fig 16: Diagnostic Procedure No. 16: Tilt/Telescopic Switch Check

G97E11902

Courtesy of NISSAN MOTOR CO., U.S.A.

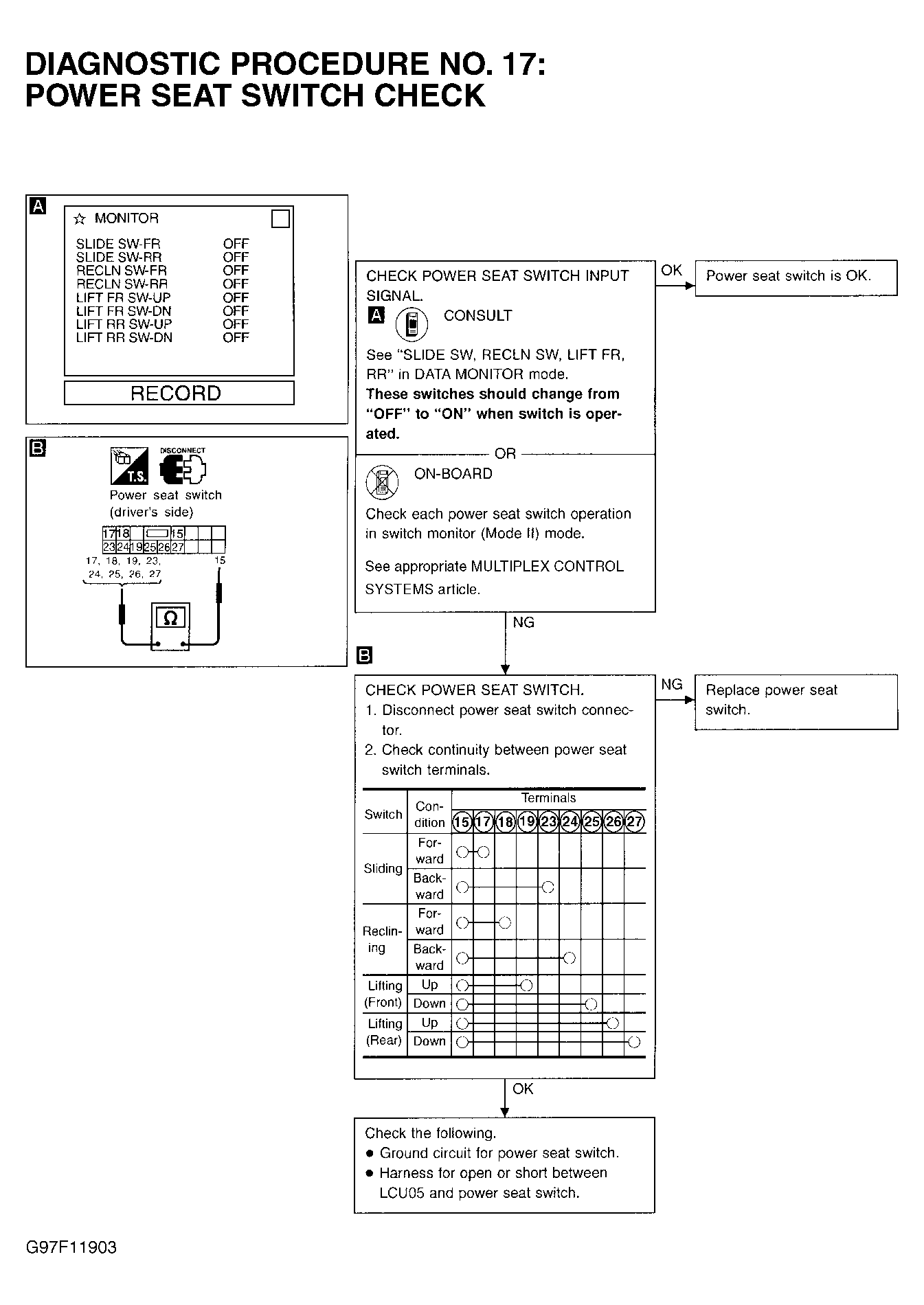

Fig 17: Diagnostic Procedure No. 17: Power Seat Switch Check

G97F11903

Courtesy of NISSAN MOTOR CO., U.S.A.

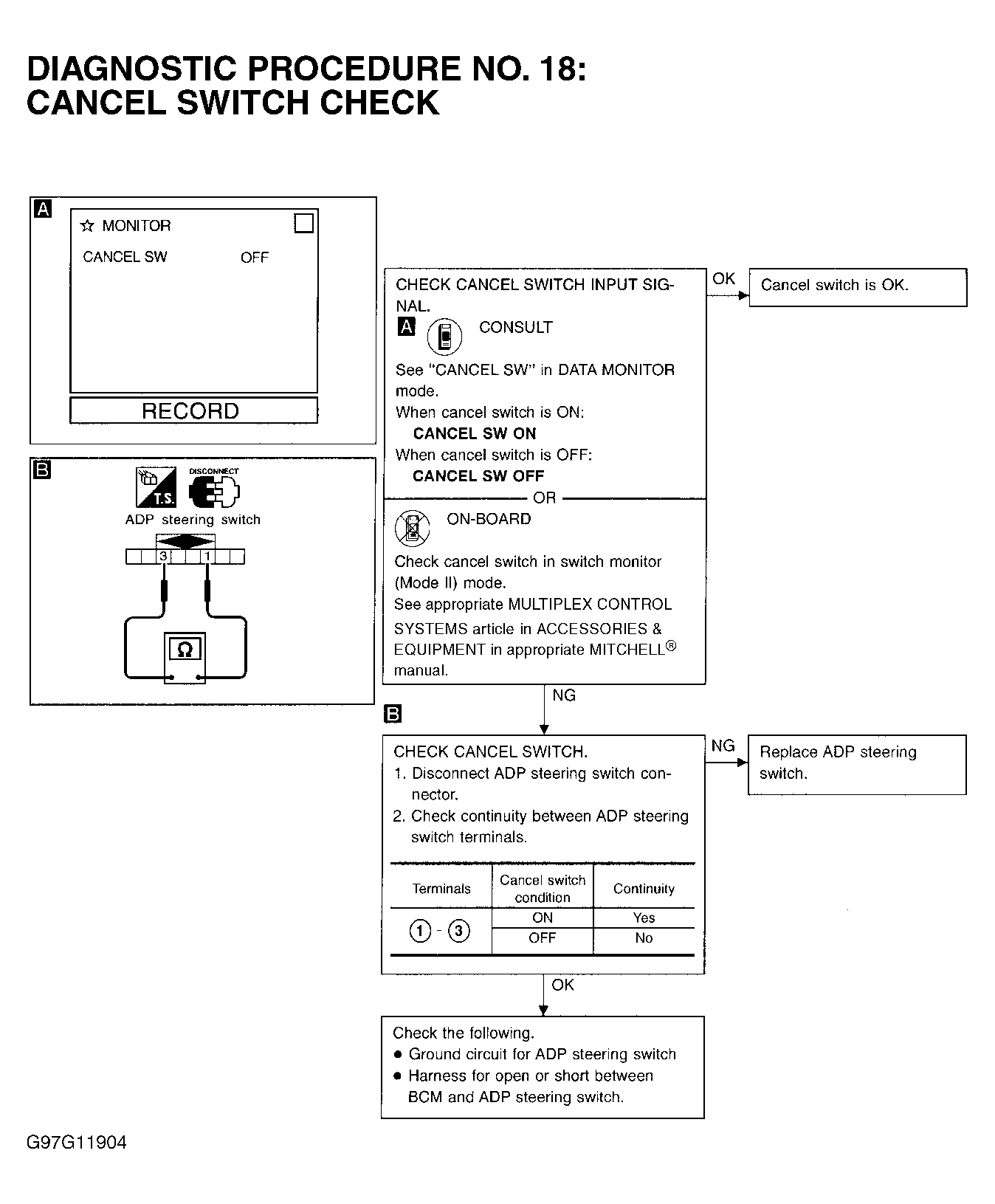

Fig 18: Diagnostic Procedure No. 18: Cancel Switch Check

G97G11904

Courtesy of NISSAN MOTOR CO., U.S.A.

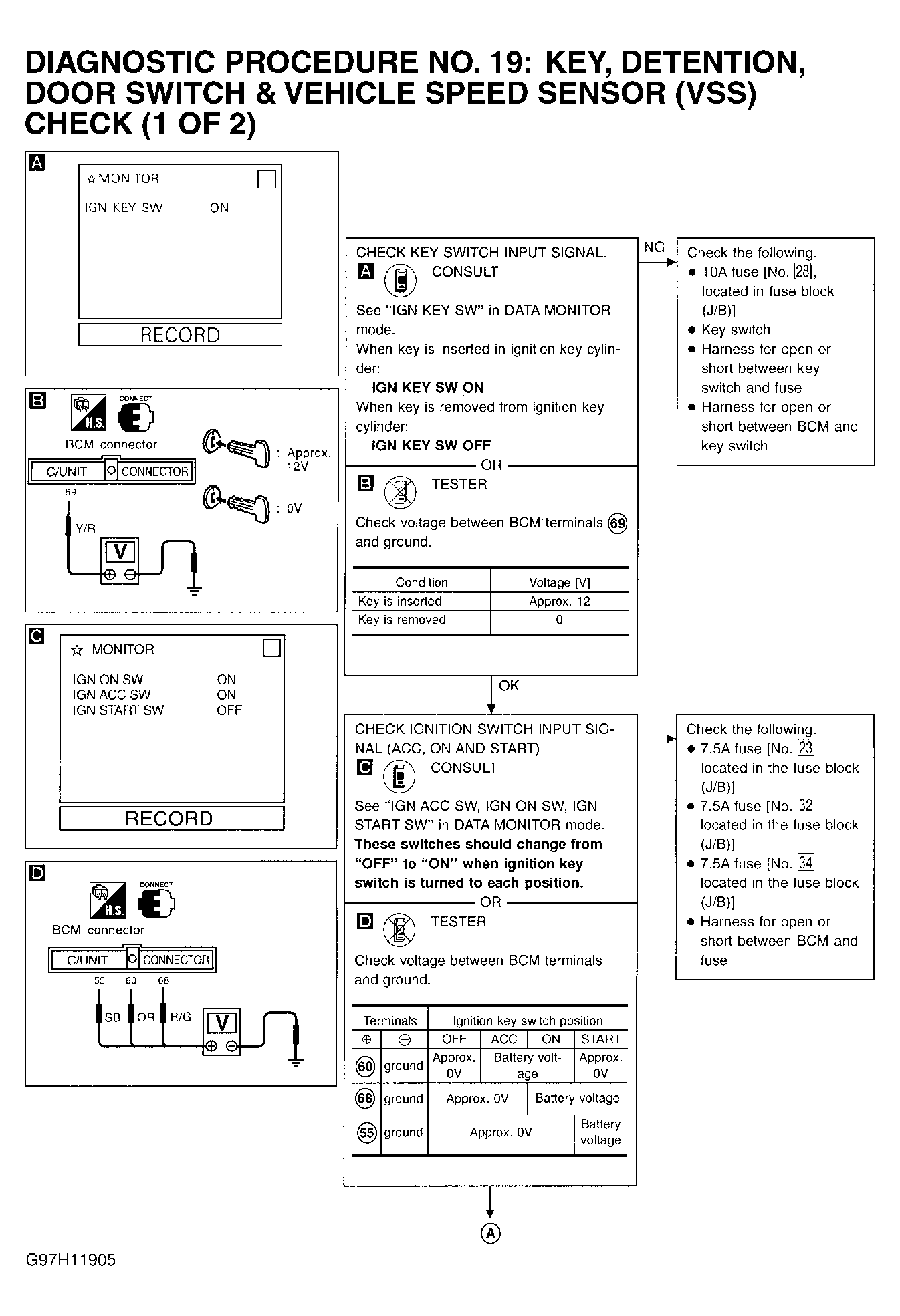

Fig 19: Diagnostic Procedure No. 19: Key, Detention, Door Switch & Vehicle Speed Sensor (VSS) Check (1 Of 2)

G97H11905

Courtesy of NISSAN MOTOR CO., U.S.A.

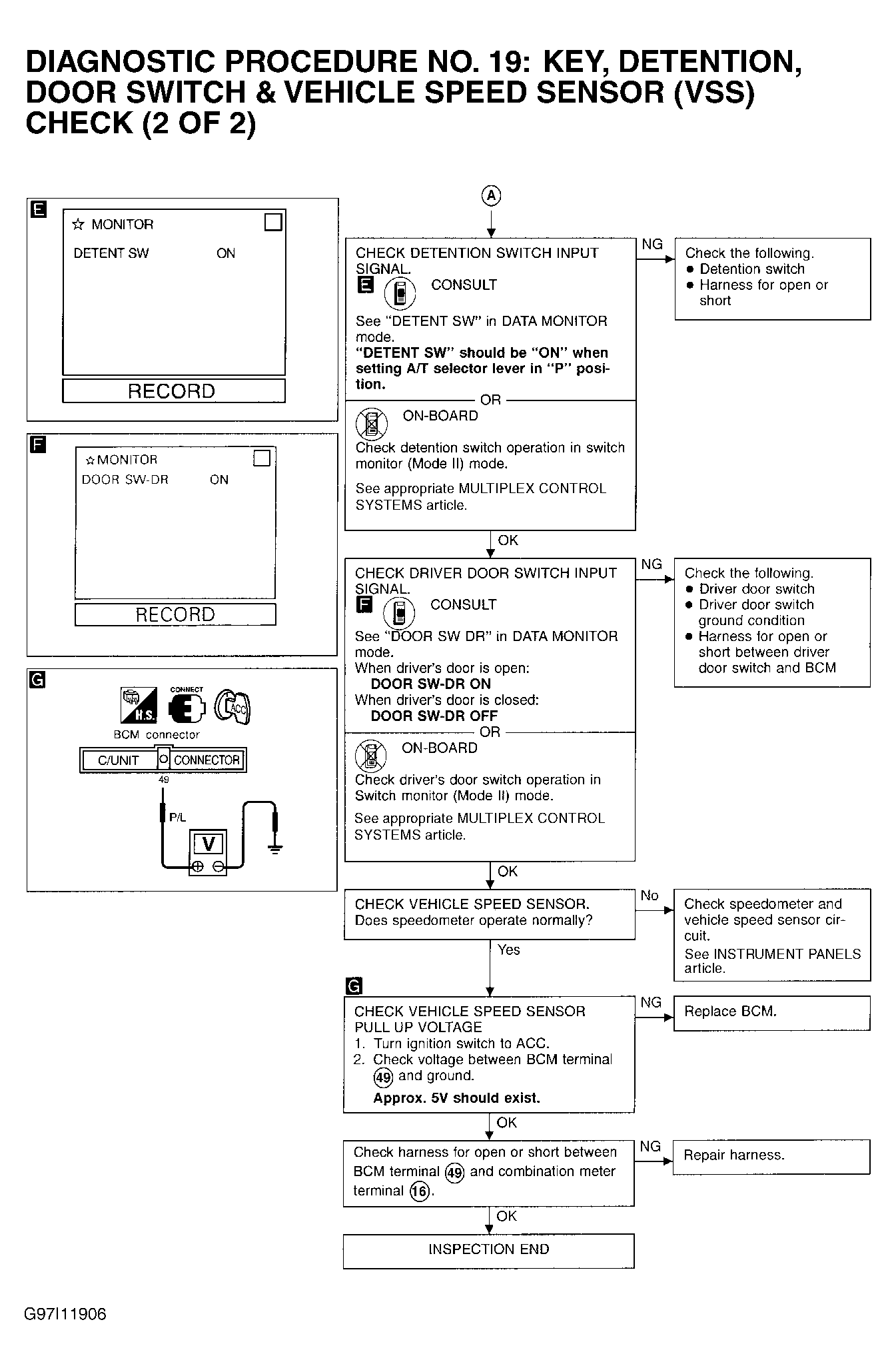

Fig 20: Diagnostic Procedure No. 19: Key, Detention, Door Switch & Vehicle Speed Sensor (VSS) Check (2 Of 2)

G97I11906

Courtesy of NISSAN MOTOR CO., U.S.A.

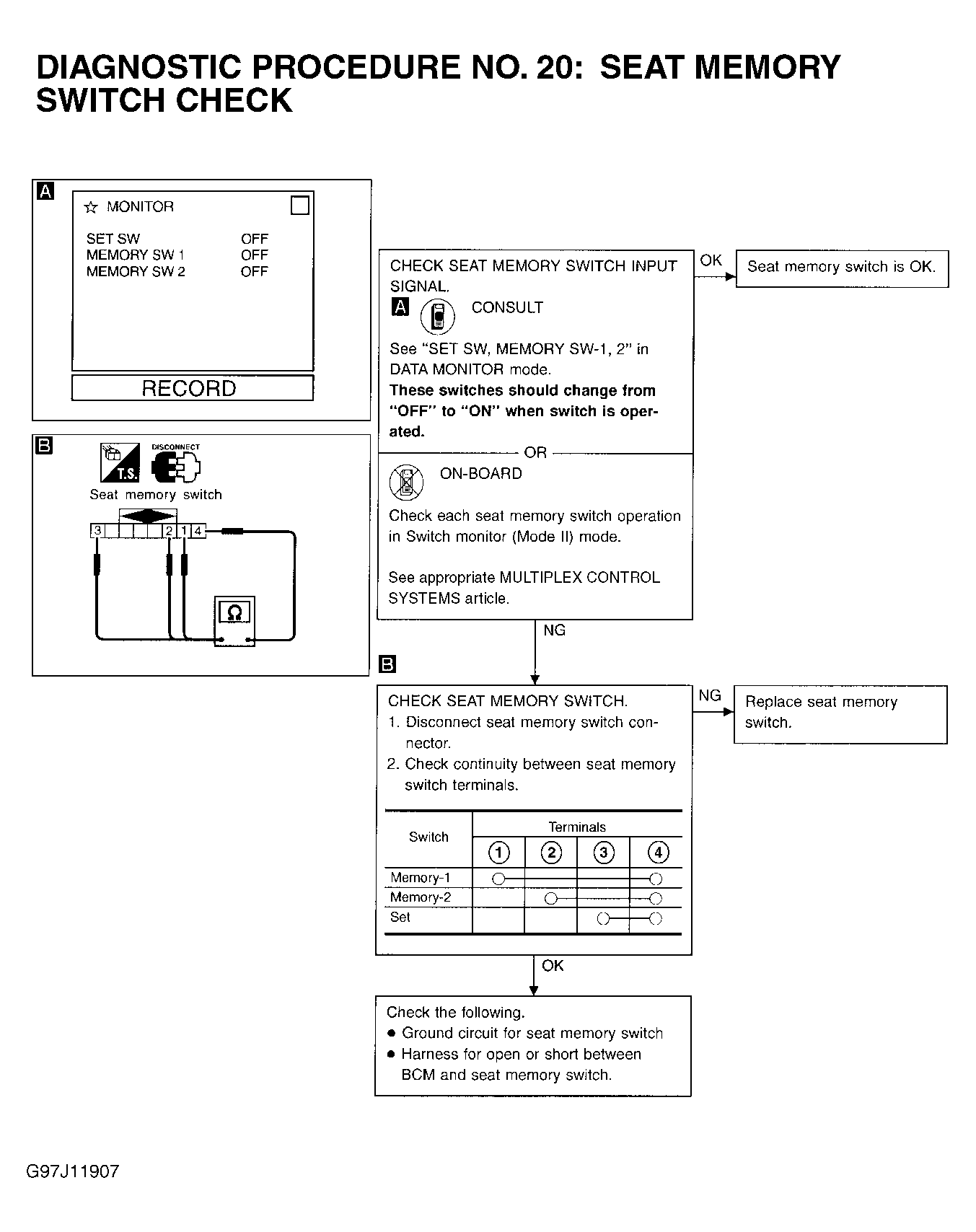

Fig 21: Diagnostic Procedure No. 20: Seat Memory Switch Check

G97J11907

Courtesy of NISSAN MOTOR CO., U.S.A.

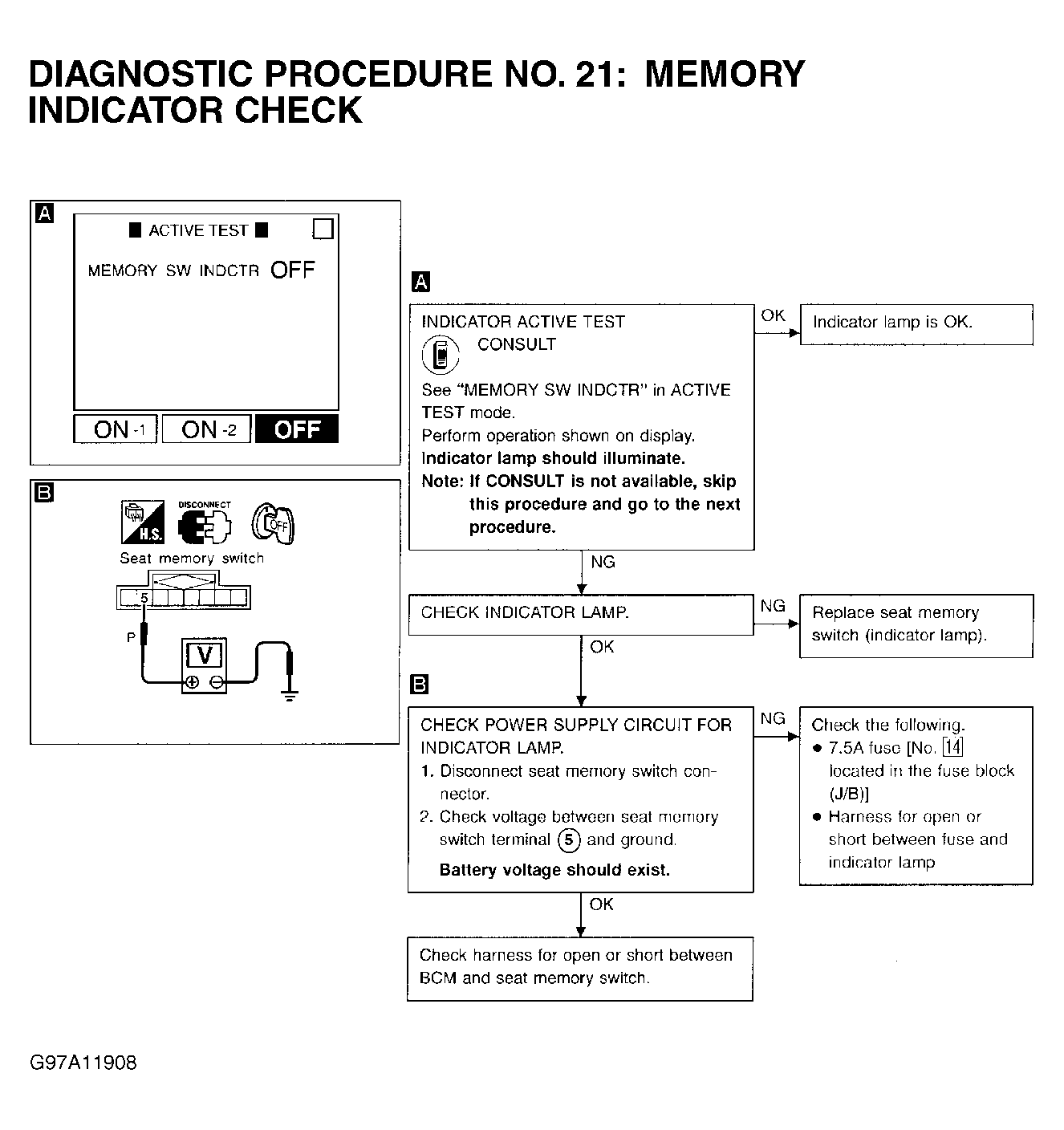

Fig 22: Diagnostic Procedure No. 21: Memory Indicator Check

G97A11908

Courtesy of NISSAN MOTOR CO., U.S.A.

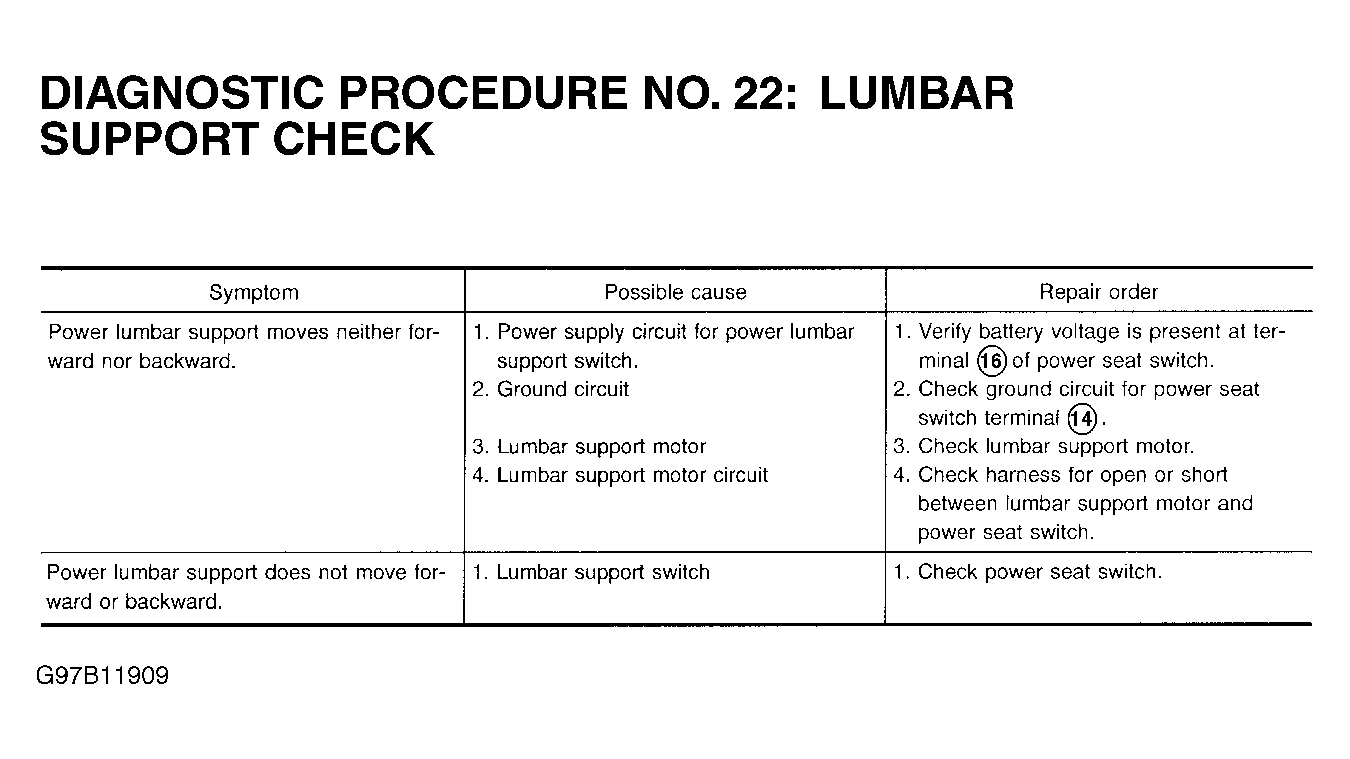

Fig 23: Diagnostic Procedure No. 22: Lumbar Support Check

G97B11909

Courtesy of NISSAN MOTOR CO., U.S.A.
