Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

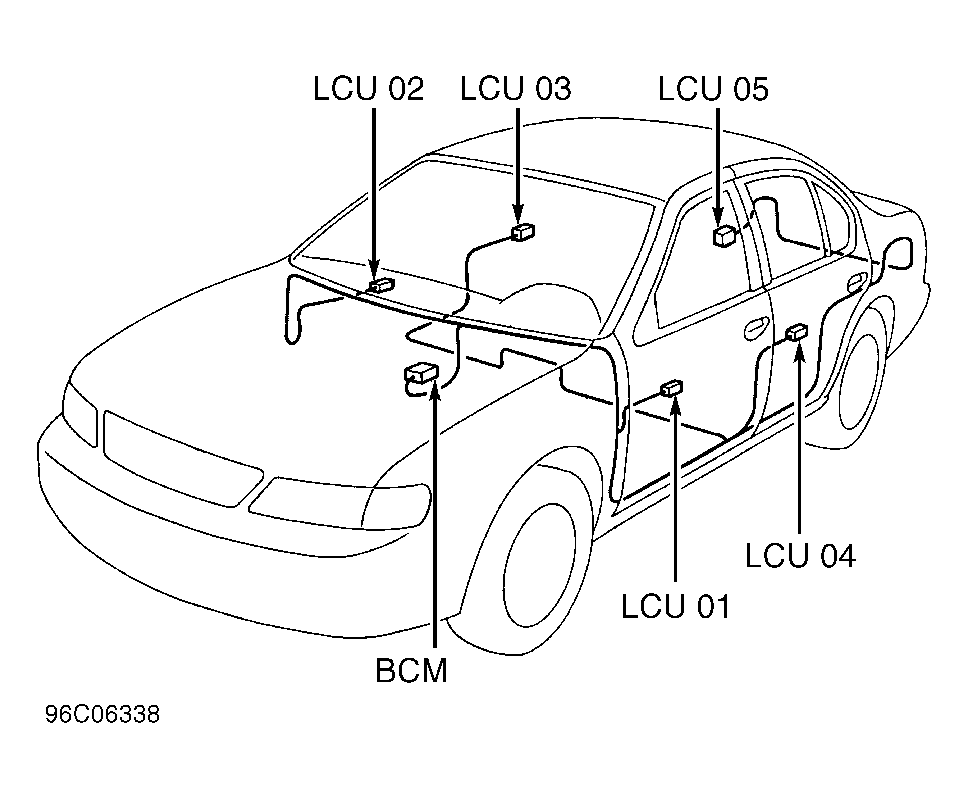

| Body Control Module (BCM) | See Fig. 1. |
| Door Lock Actuator | Inside Appropriate Door |
| Door Lock Switch | On Appropriate Armrest |
| LCU 01 (Left Front Door Control Unit) | See Fig. 1. |
| LCU 02 (Right Front Door Control Unit) | See Fig. 1. |
| LCU 03 (Right Rear Door Control Unit) | See Fig. 1. |
| LCU 04 (Left Rear Door Control Unit) | See Fig. 1. |
| LCU 05 (Multi-Remote Control Unit) | See Fig. 1. |
| Multi-Remote Antenna | Part Of Rear Window Defogger Grid |
| Multi-Remote Relay | In Trunk, Near Trunk Latch |
| Power Window Switch | On Appropriate Armrest |
| Trunk Release Switch | Under Driver's Armrest |
