Anti-Lock/Traction Control/TCS: Description: Schematic

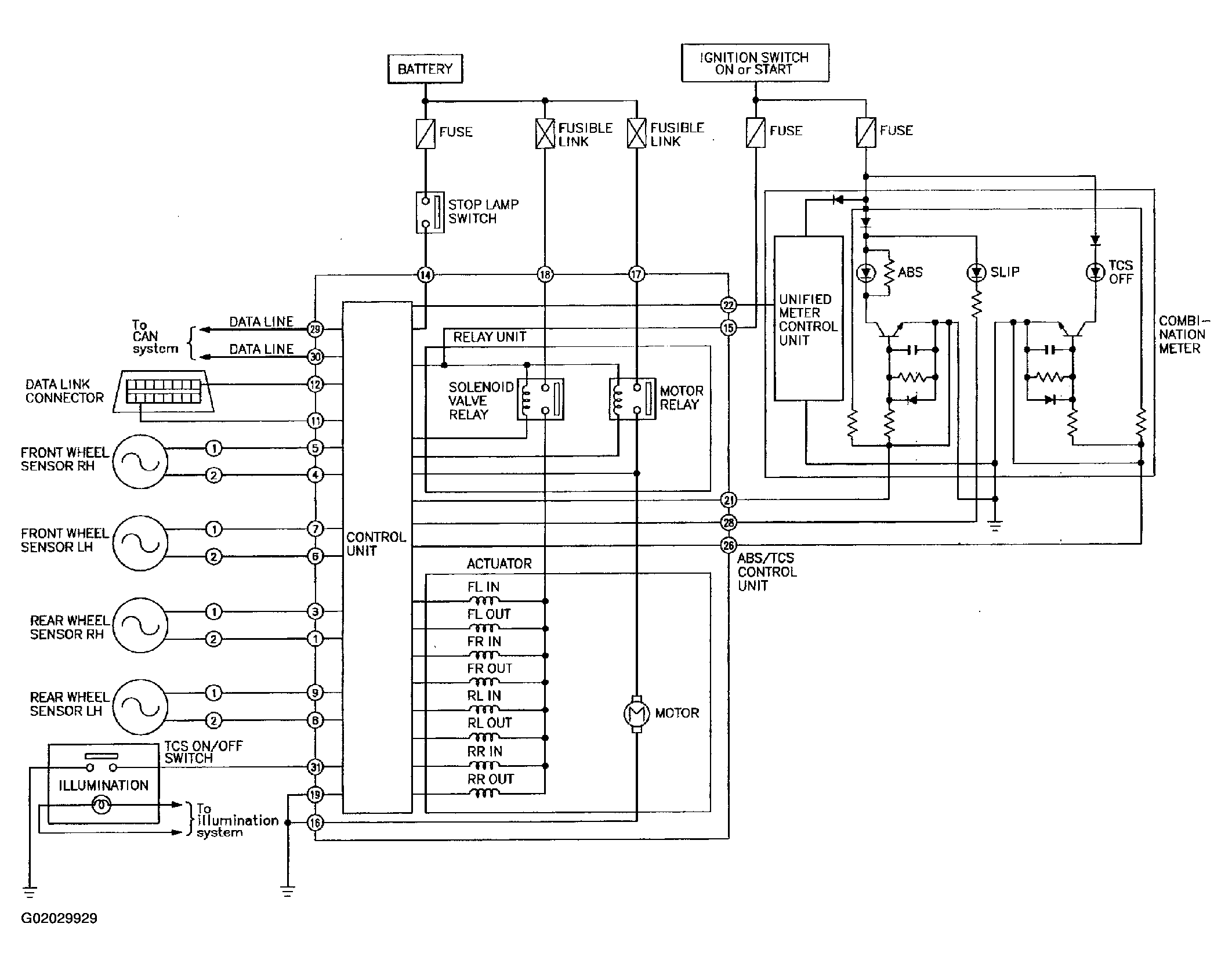

Fig 1: TCS Schematic

G02029929

Courtesy of NISSAN MOTOR CO., U.S.A.
