2002 Model

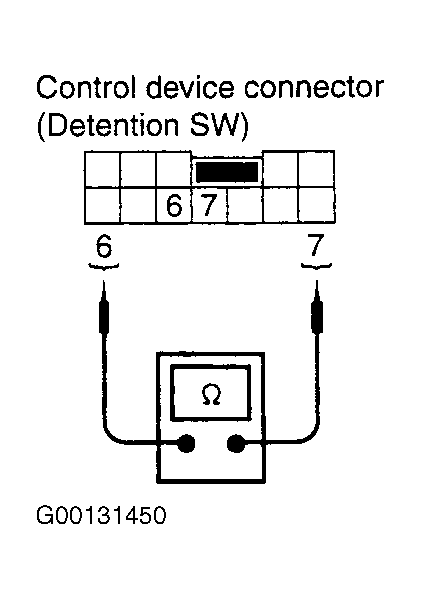

Disconnect control device harness connector, located below selector lever housing. Check for continuity between A/T device harness connector terminals No. 6 and 7. See Figure . Continuity should only exist with selector lever in any position other than "P" position. Continuity should not exist with selector lever in "P" position
