Engine Control Harness

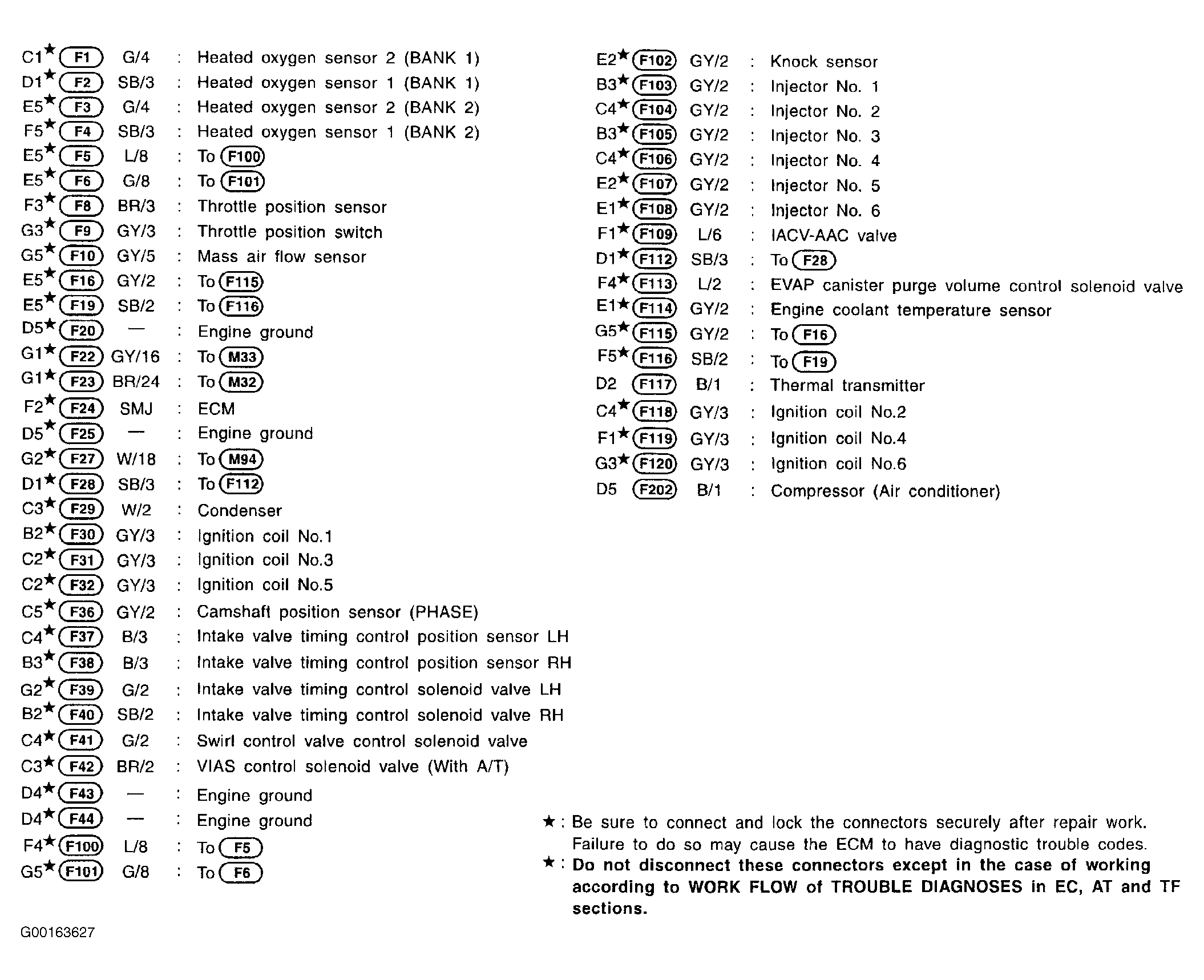

Fig 1: Identifying Engine Control Harness Routing (Pathfinder - 1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

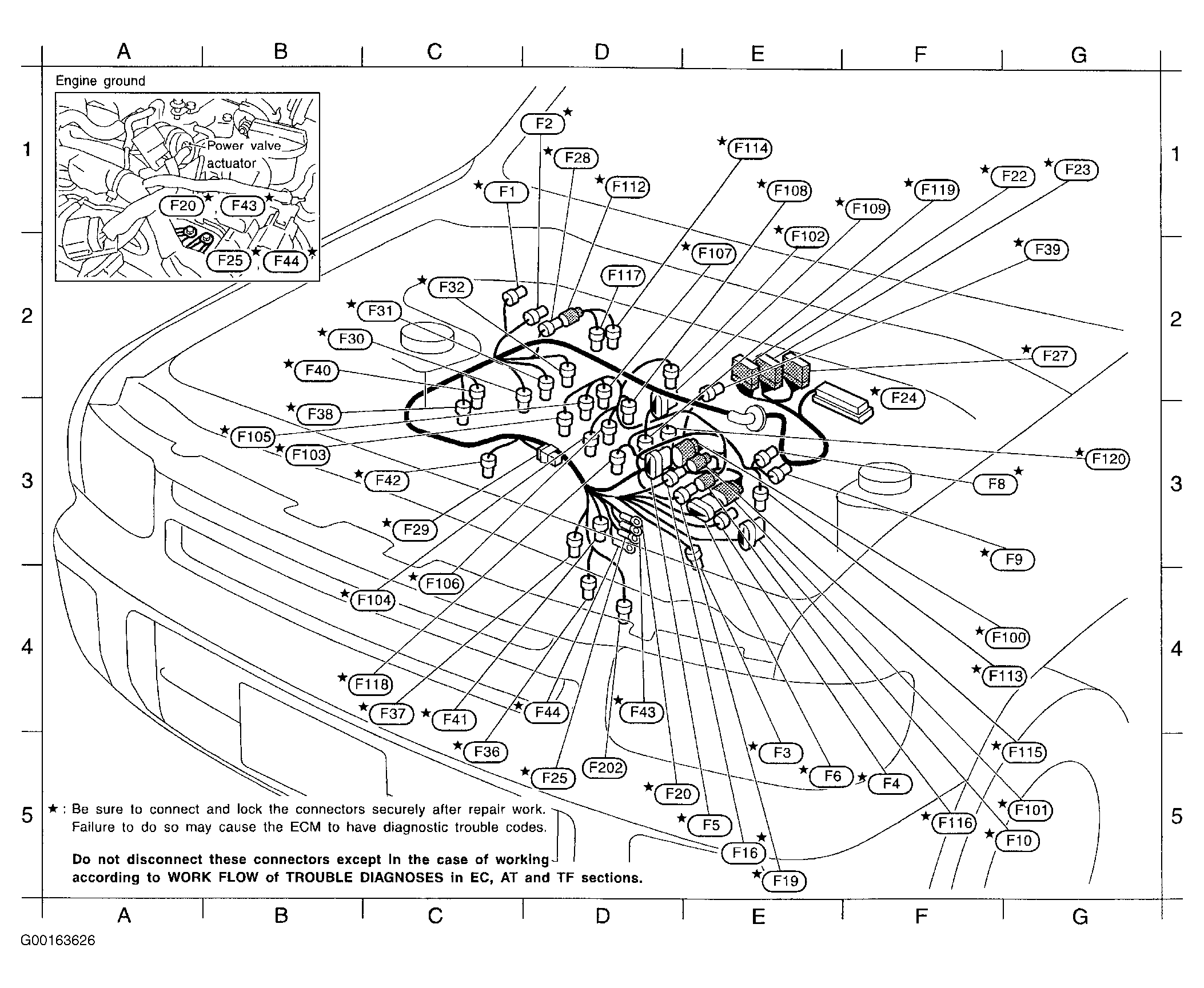

Fig 2: Identifying Engine Control Harness Routing (Pathfinder - 2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Identifying Engine Control Harness Routing (QX4 - 1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 4: Identifying Engine Control Harness Routing (QX4 - 2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 5: Identifying Engine & Transmission Harness Routing
Courtesy of NISSAN MOTOR CO., U.S.A.
