Terminal and Reference Value for Power Window Main Switch / With Front and Rear Power Window Anti-pinch System

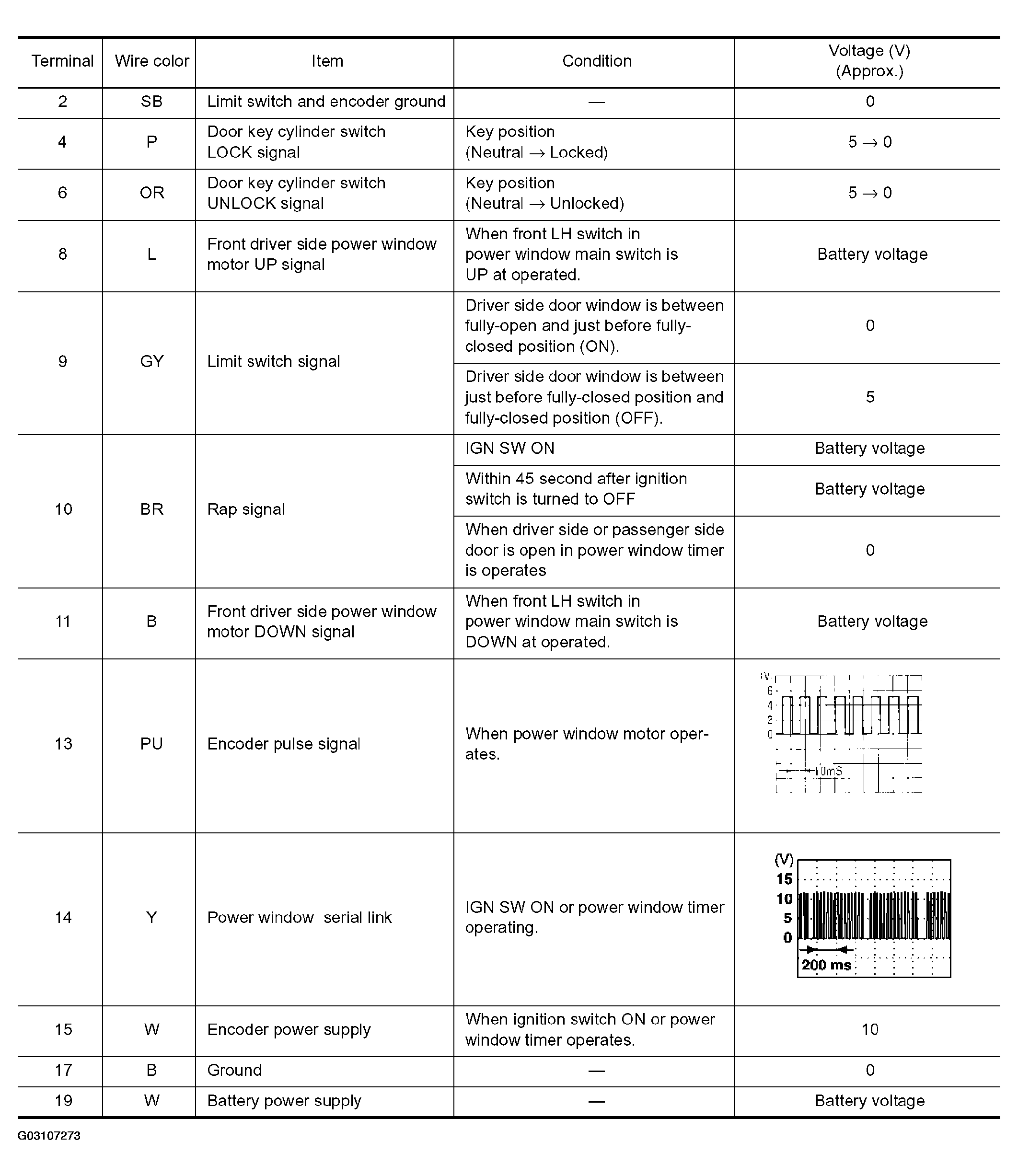

Fig 1: Terminal And Reference Value For Power Window Main Switch/With Front And Rear Power Window Anti-Pinch System
G03107273Courtesy of NISSAN MOTOR CO., U.S.A.
