Fail-Safe Mode

When the malfunction is detected, the ECM enters fail-safe mode and the MIL illuminates. For fail-safe conditions, see Fig 1.

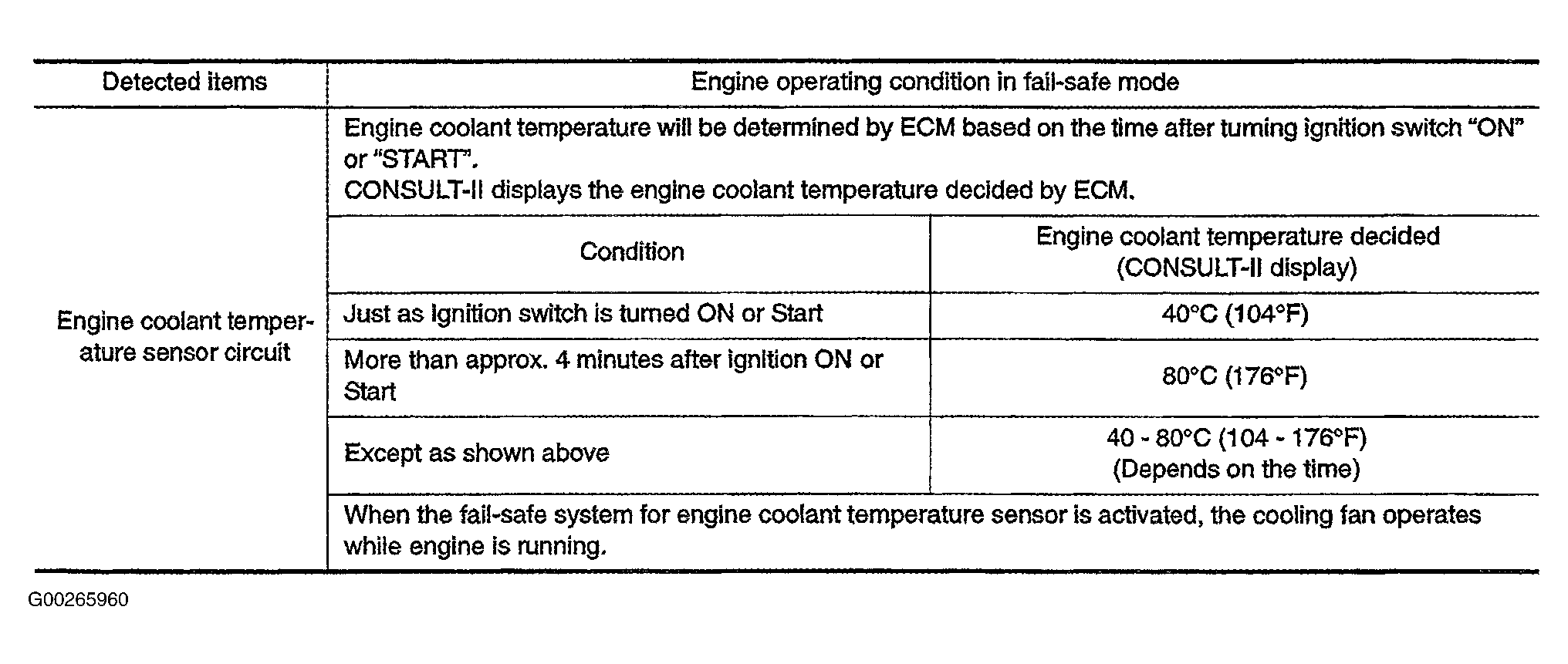

Fig 1: DTCs P0117 & P0118 Fail-Safe Mode Conditions

Courtesy of NISSAN MOTOR CO., U.S.A.
