Data Monitor Mode Reference Values

For throttle position sensor data monitor mode specification data, see Fig 1.

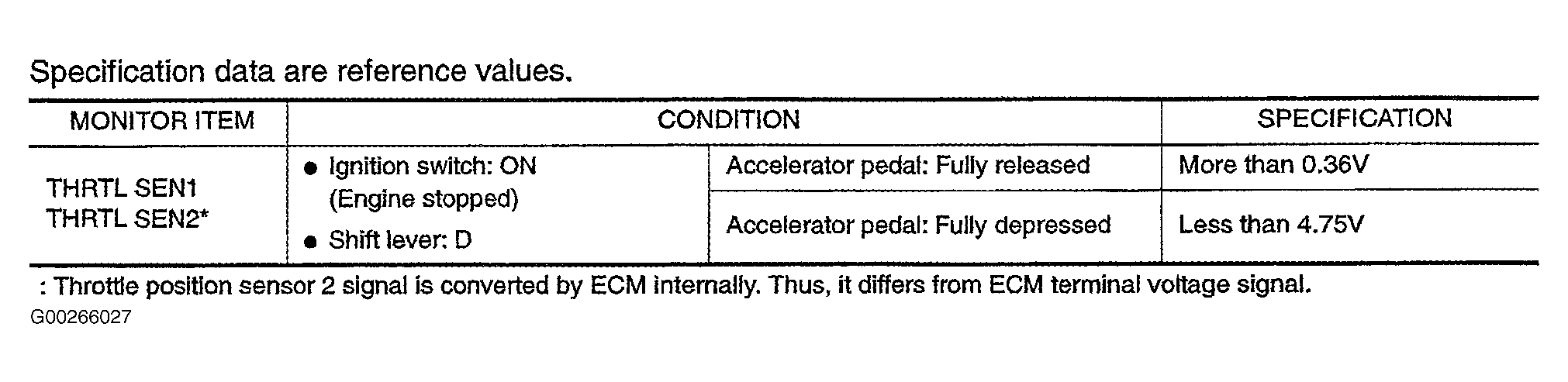

Fig 1: Identifying Throttle Position Sensor Data Monitor Mode Specification Data

Courtesy of NISSAN MOTOR CO., U.S.A.
