Diagnostic Procedure

For DTC P0222 and P0223 diagnostic procedure, related circuits and connectors, see Fig 1-Fig 4 .

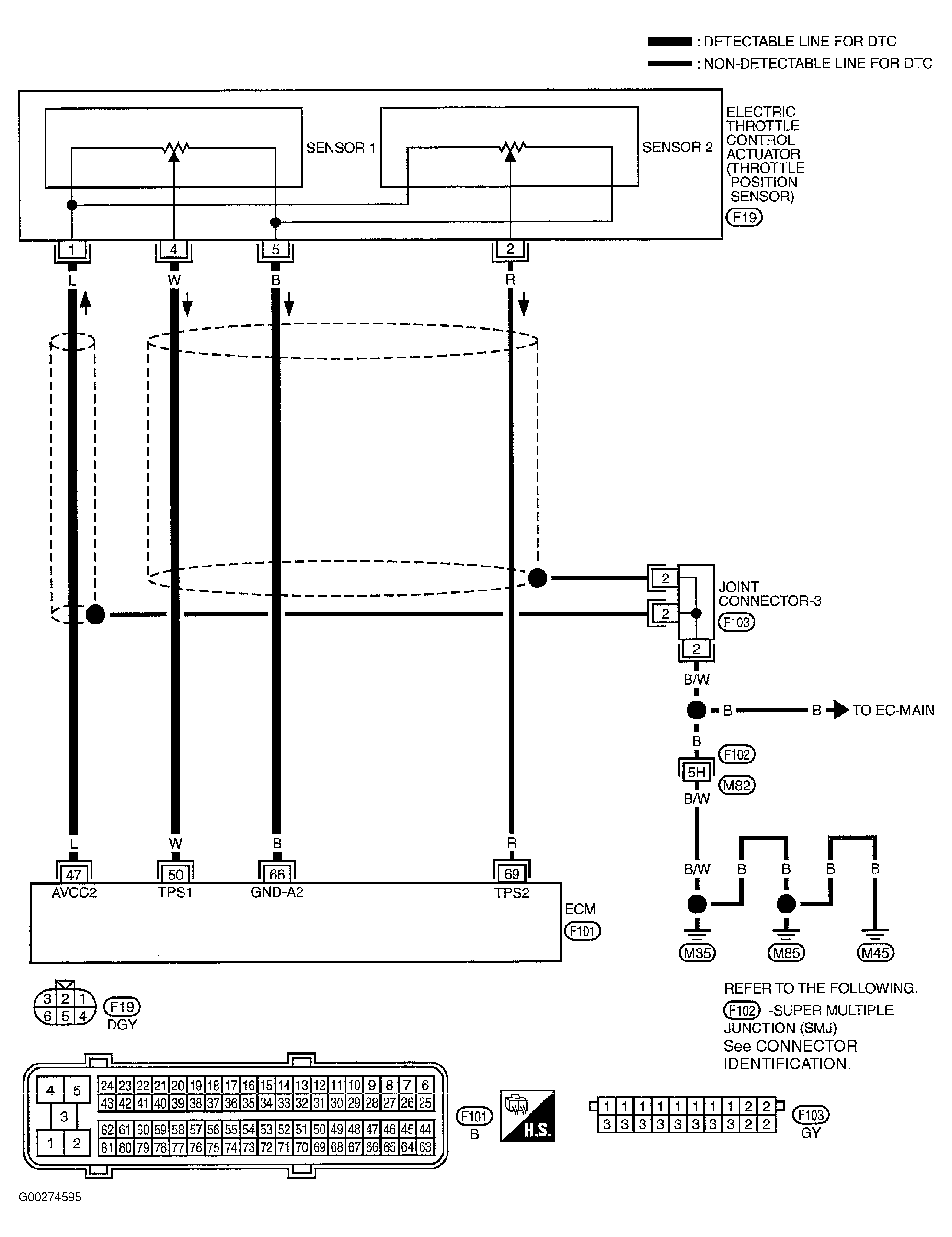

Fig 1: Identifying TP Sensor Related Circuits & Connectors

Courtesy of NISSAN MOTOR CO., U.S.A.

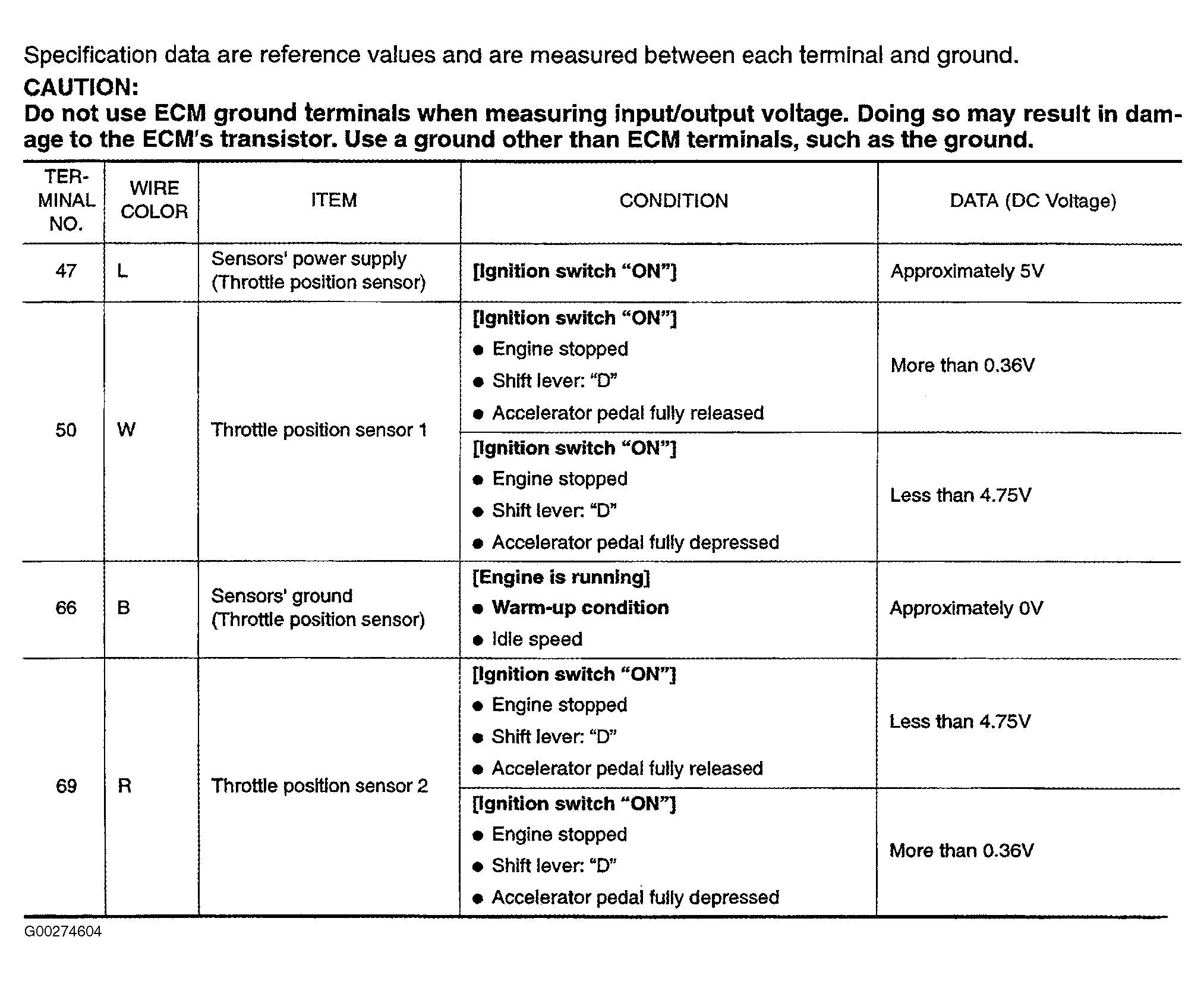

Fig 2: Identifying Throttle Position Sensor Specification Data

Courtesy of NISSAN MOTOR CO., U.S.A.

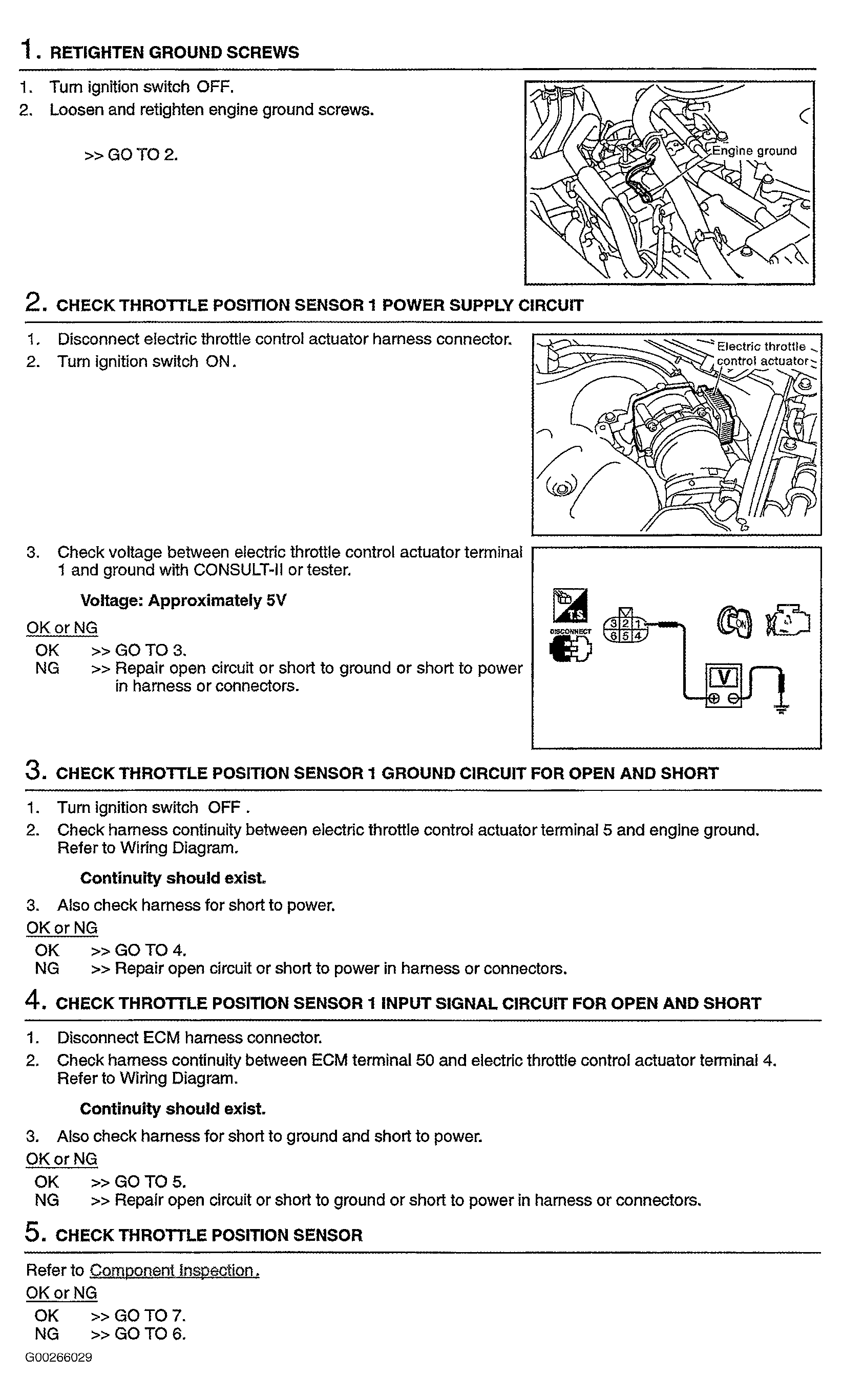

Fig 3: DTCs P0222 & P0223 Diagnostic Procedure (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

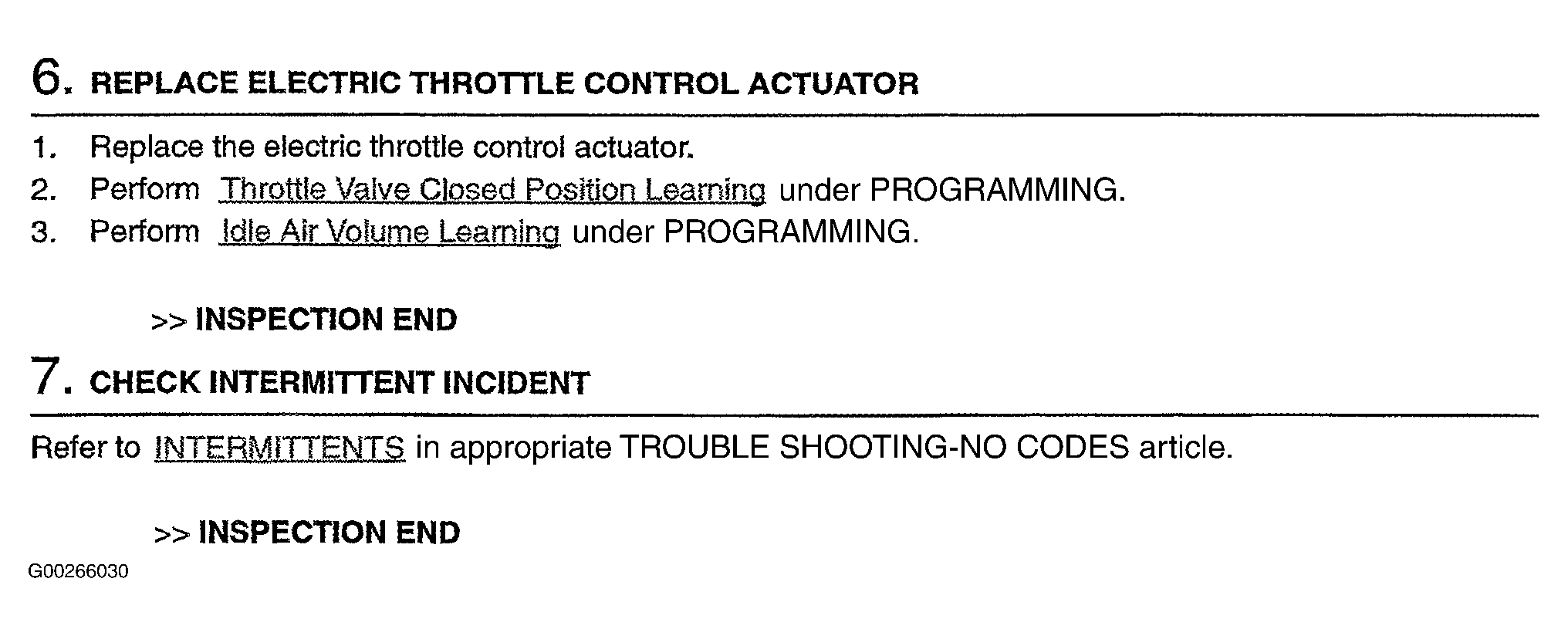

Fig 4: DTCs P0222 & P0223 Diagnostic Procedure (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
