Diagnostic Procedure

For wiring diagram, see Fig 1 . For diagnostic procedure, see Fig 2 .

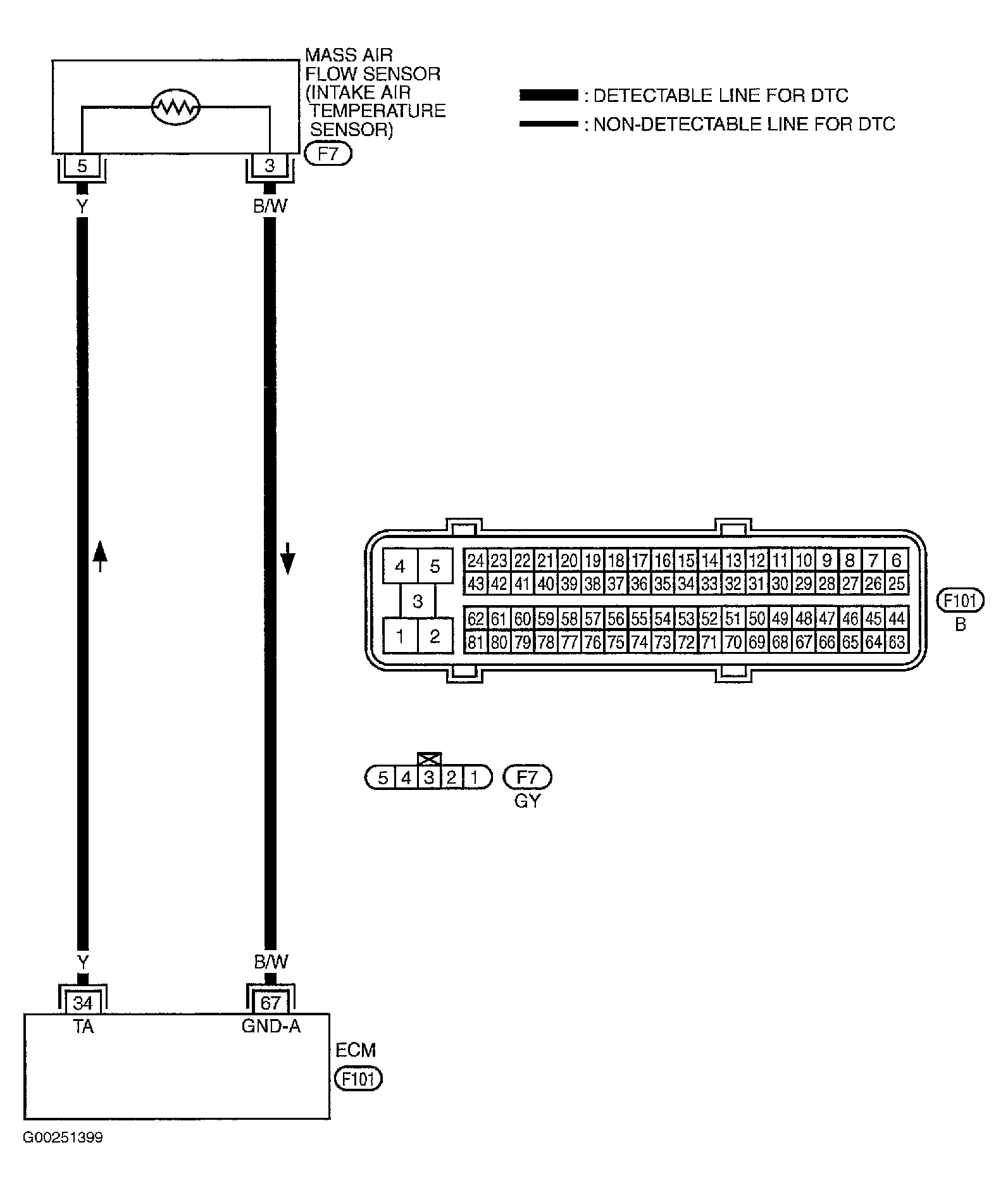

Fig 1: Intake Air Temperature Sensor Circuit Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

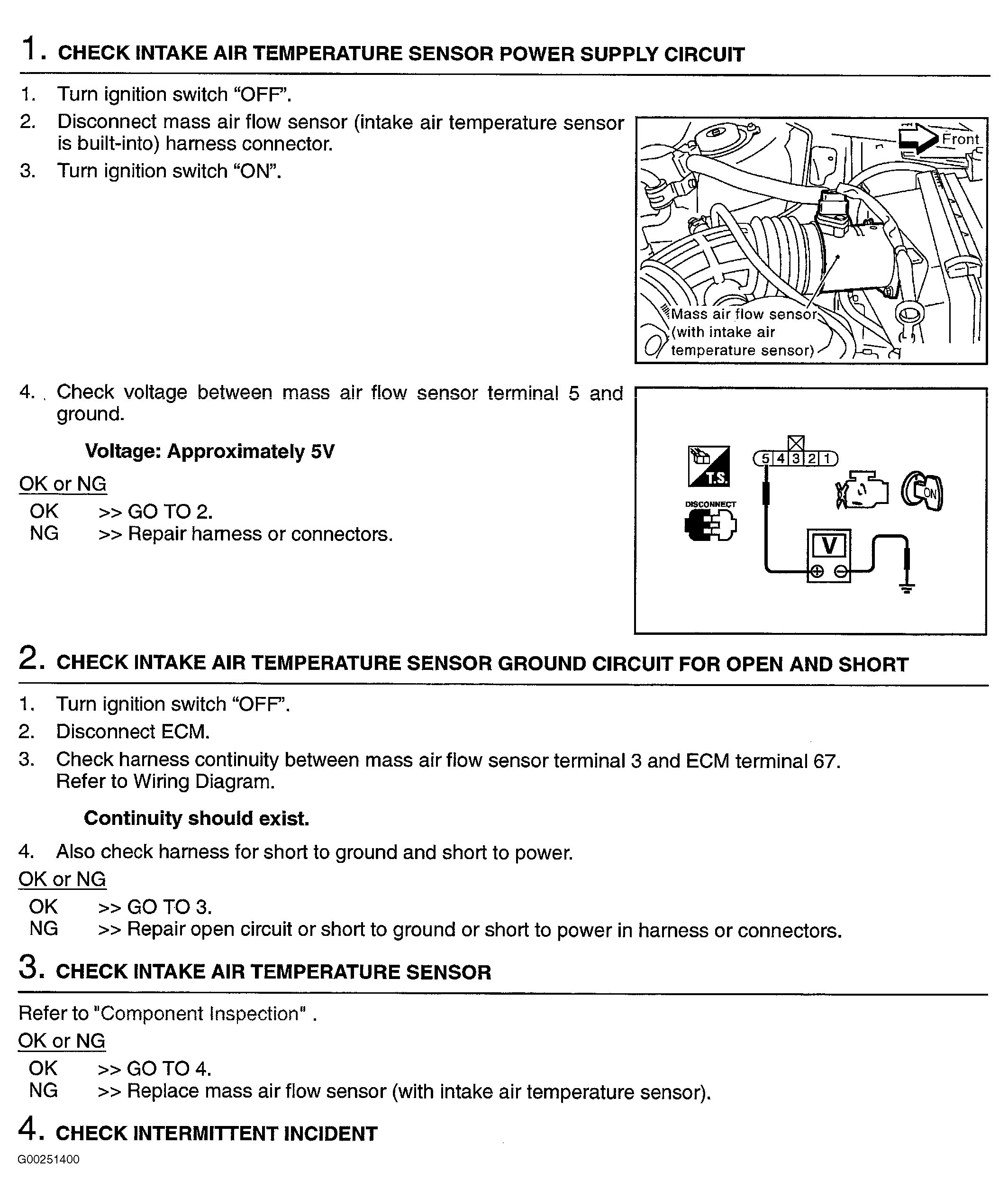

Fig 2: Diagnostic Procedure For Intake Air Temperature Sensor Circuit

Courtesy of NISSAN MOTOR CO., U.S.A.
