Diagnostic Procedure

For wiring diagram, see Fig 1 . For diagnostic procedure, see Fig 2 and Fig 3 .

Fig 1: Throttle Position Sensor Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

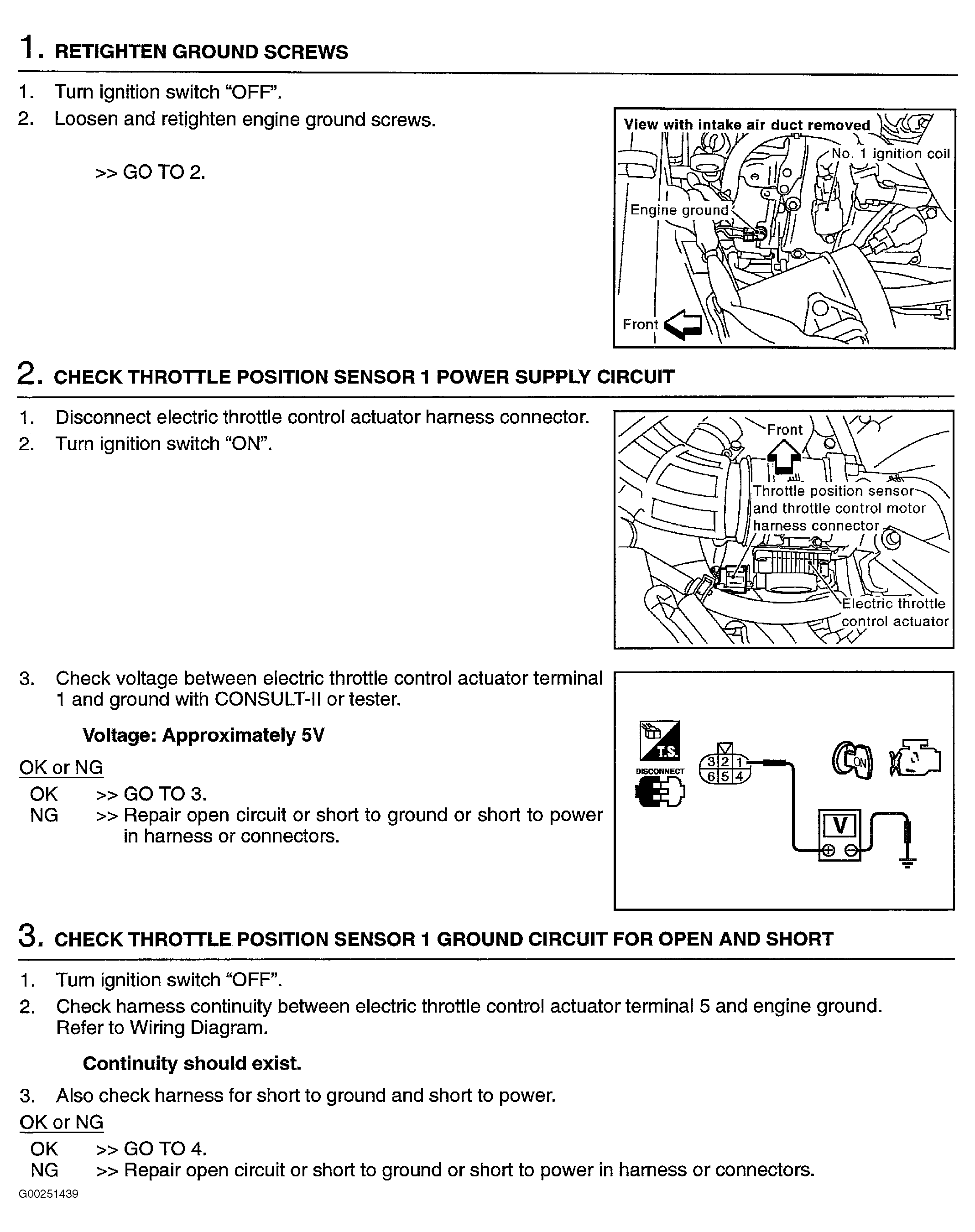

Fig 2: Diagnostic Procedure For Throttle Position Sensor (Step 1-3)

Courtesy of NISSAN MOTOR CO., U.S.A.

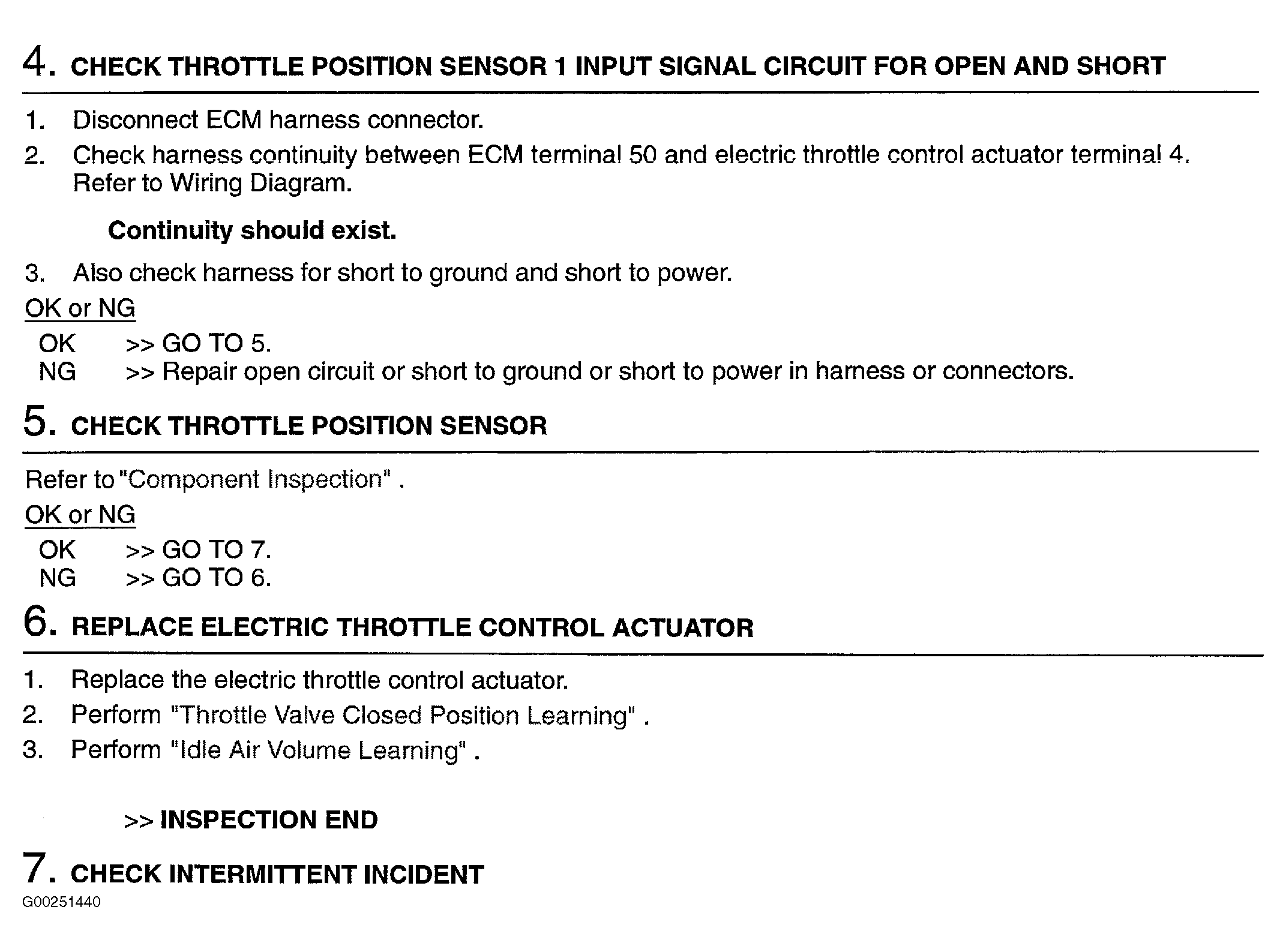

Fig 3: Diagnostic Procedure For Throttle Position Sensor (Step 4-7)

Courtesy of NISSAN MOTOR CO., U.S.A.
