Component Inspection

  1. Loosen fixing bolt of sensor.
  2. Disconnect intake valve timing control position sensor harness connector.
  3. Remove sensor. Visually check sensor for chipping.
  4. Check component resistance. See Fig 1 . For specifications, see INTAKE VALVE TIMING CONTROL POSITION SENSOR RESISTANCE  table. If resistance is not as specified, replace intake valve timing control position sensor.
INTAKE VALVE TIMING CONTROL POSITION SENSOR RESISTANCE

Terminal No. (Polarity) Resistance Ohms At 77°F (25°C)
3 (+) - 1 (-) Except Zero Or Infinity
2 (+) - 1 (-) Except Zero Or Infinity
3 (+) - 2 (-) Except Zero Or Infinity

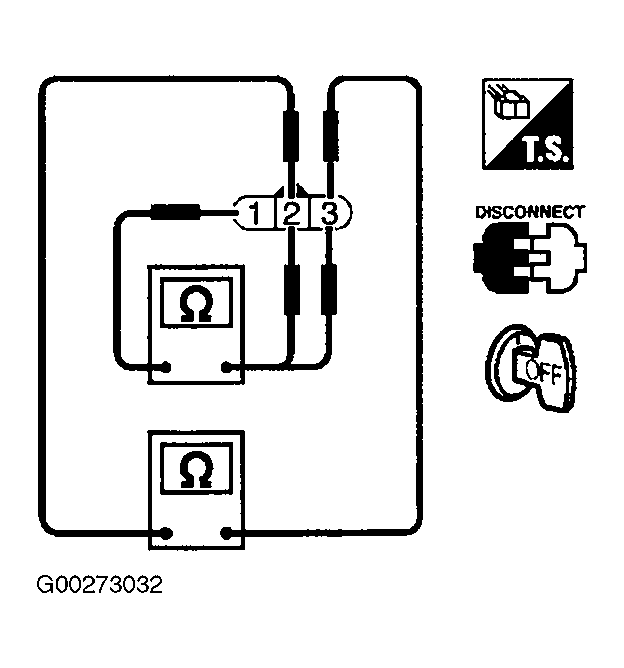

Fig 1: Checking Resistance Of Intake Valve Timing Control Position Sensor
G00273032Courtesy of NISSAN MOTOR CO., U.S.A.
