Component Description, CONSULT-II Reference Value In Data Monitor Mode, On Board Diagnosis Logic & Fail-Safe Mode

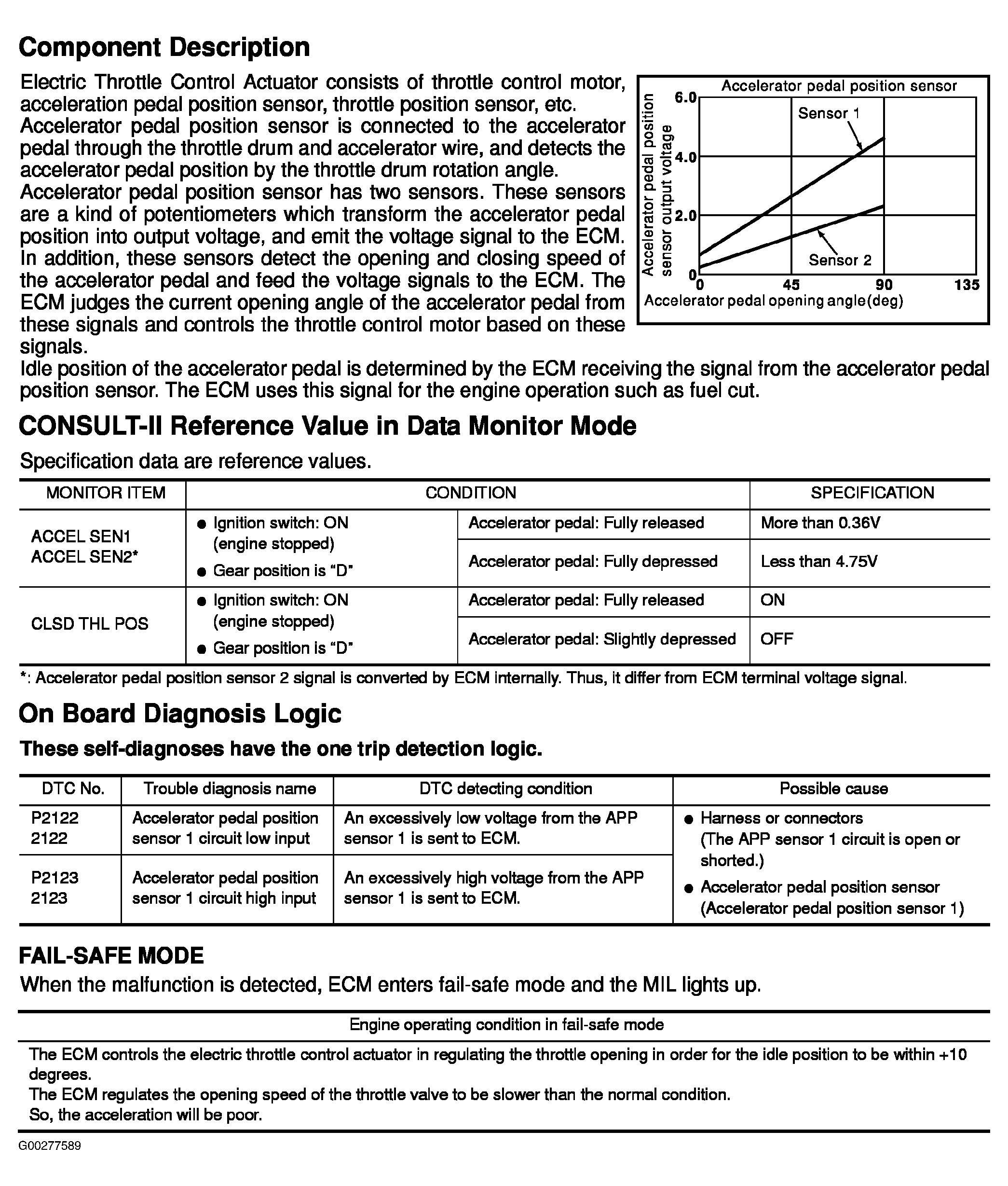

For component description, CONSULT-II reference value in data monitor mode, on board diagnosis logic and fail-safe mode, see Fig 1 .

Fig 1: Component Description, CONSULT-II Reference Value In Data Monitor Mode, On Board Diagnosis Logic & Fail-Safe Mode

Courtesy of NISSAN MOTOR CO., U.S.A..
