Disassembly and Assembly: Notes

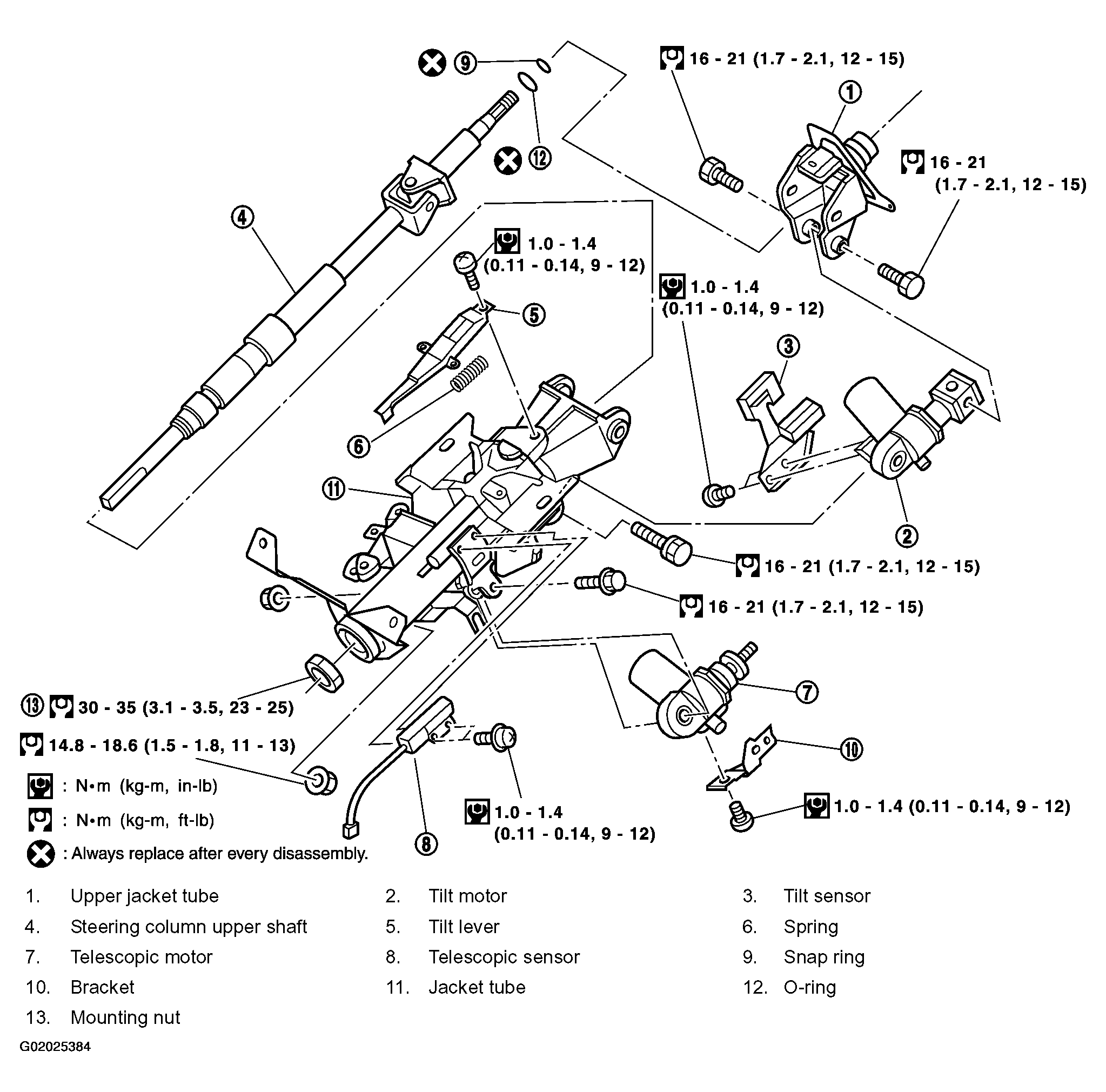

Fig 1: Disassembling Steering Column Components And Identifying Torque
G02025384Courtesy of NISSAN MOTOR CO., U.S.A.
