Diagnostic Procedure
- CHECK PNP SWITCH CIRCUIT (WITH CONSULT-II)
With CONSULT-II
- Turn ignition switch to "ON" position. (Do not start engine.)

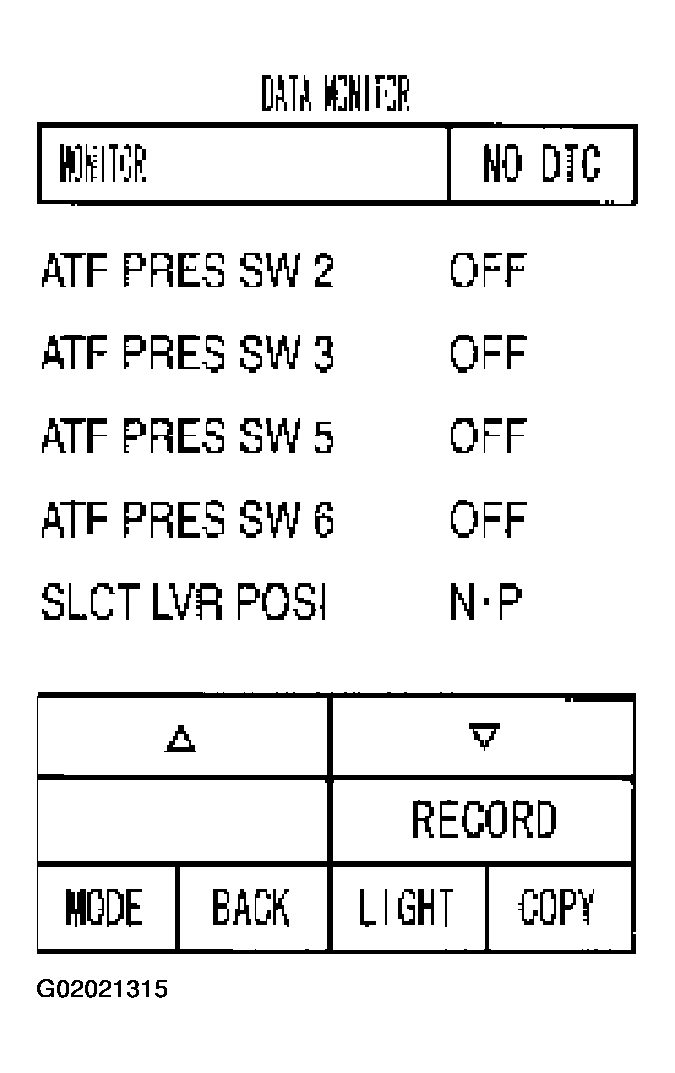

- Select "MAIN SIGNALS" in "DATA MONITOR" mode for "A/T" with CONSULT-II.
- Read out "N.P", "R" and "D" position switches moving selector lever to each position.
OK or NG
OK >> GO TO 5.
NG >> GO TO 3.
- CHECK PNP SWITCH CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
- Turn ignition switch to "ON" position. (Do not start engine.)
- Selector lever to "P", "R", "N", or "D" position to check the voltage between the TCM connector terminals and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 3.
- DETECT MALFUNCTIONING ITEM
Check the following items.
- Disconnection or short-circuit in the harness between TCM and A/T unit harness connector.
- PNP switch. Refer to "COMPONENT INSPECTION ".
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
- CHECK TERMINAL CORD ASSEMBLY
- Remove oil pan. Refer to "Control Valve Assembly ".
- Disconnect A/T unit assembly harness connector and control valve assembly harness connector.

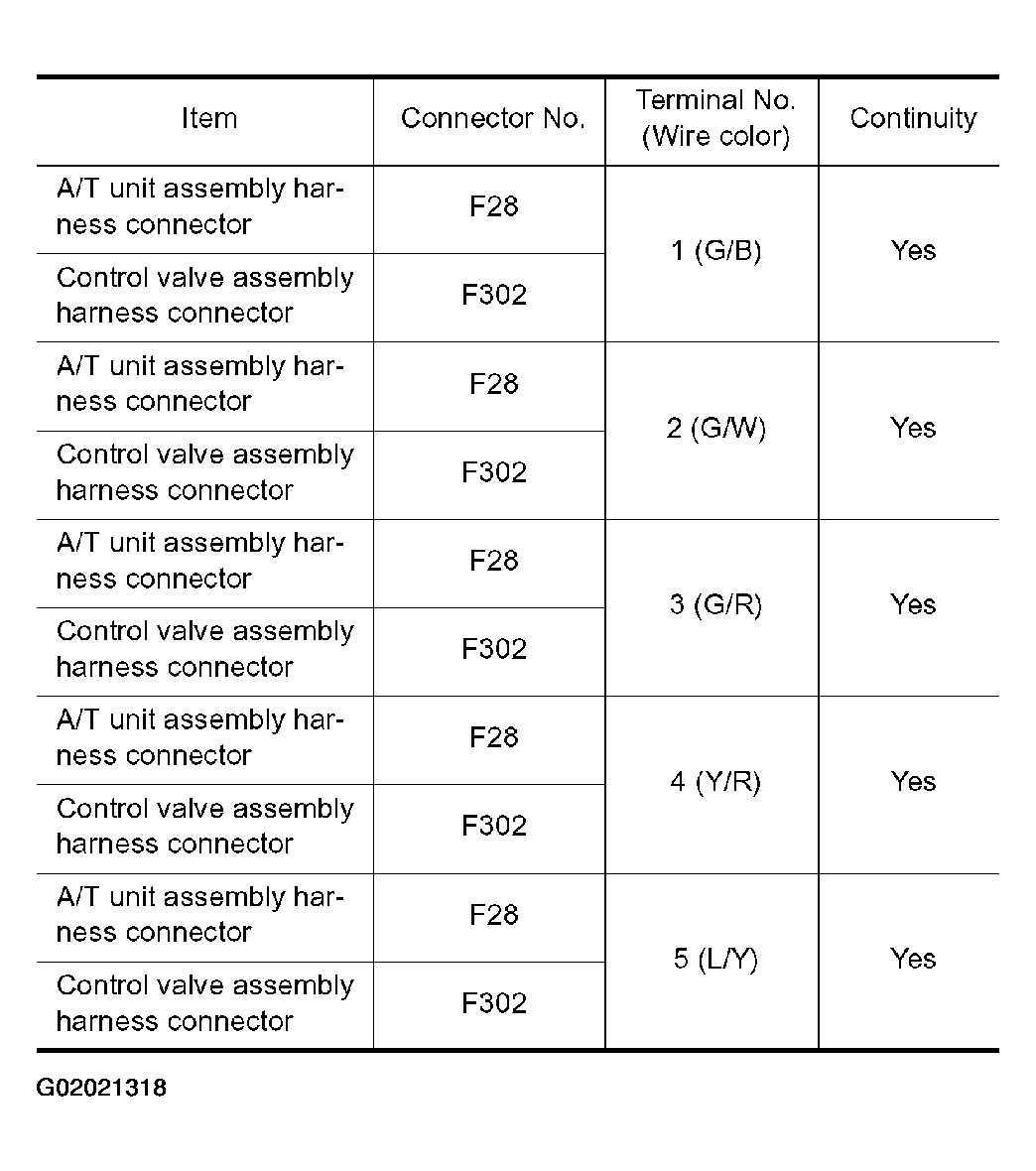

- Check continuity between A/T unit assembly harness connector and control valve assembly harness connector.
- If OK, check harness for short to ground and short to power.
- Reinstall any part removed.
OK or NG
OK >> Replace control valve assembly. Refer to "CONTROL VALVE ASSEMBLY ".
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
- CHECK DTC
Perform "DTC Confirmation Procedure". Refer to "DTC CONFIRMATION PROCEDURE ".
OK or NG
OK >> INSPECTION END
NG >> GO TO 6.
- PERFORM TCM INSPECTION
- Perform TCM input/output signal inspection.
- If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
