Automatic Speed Control Device (ASCD): Schematic

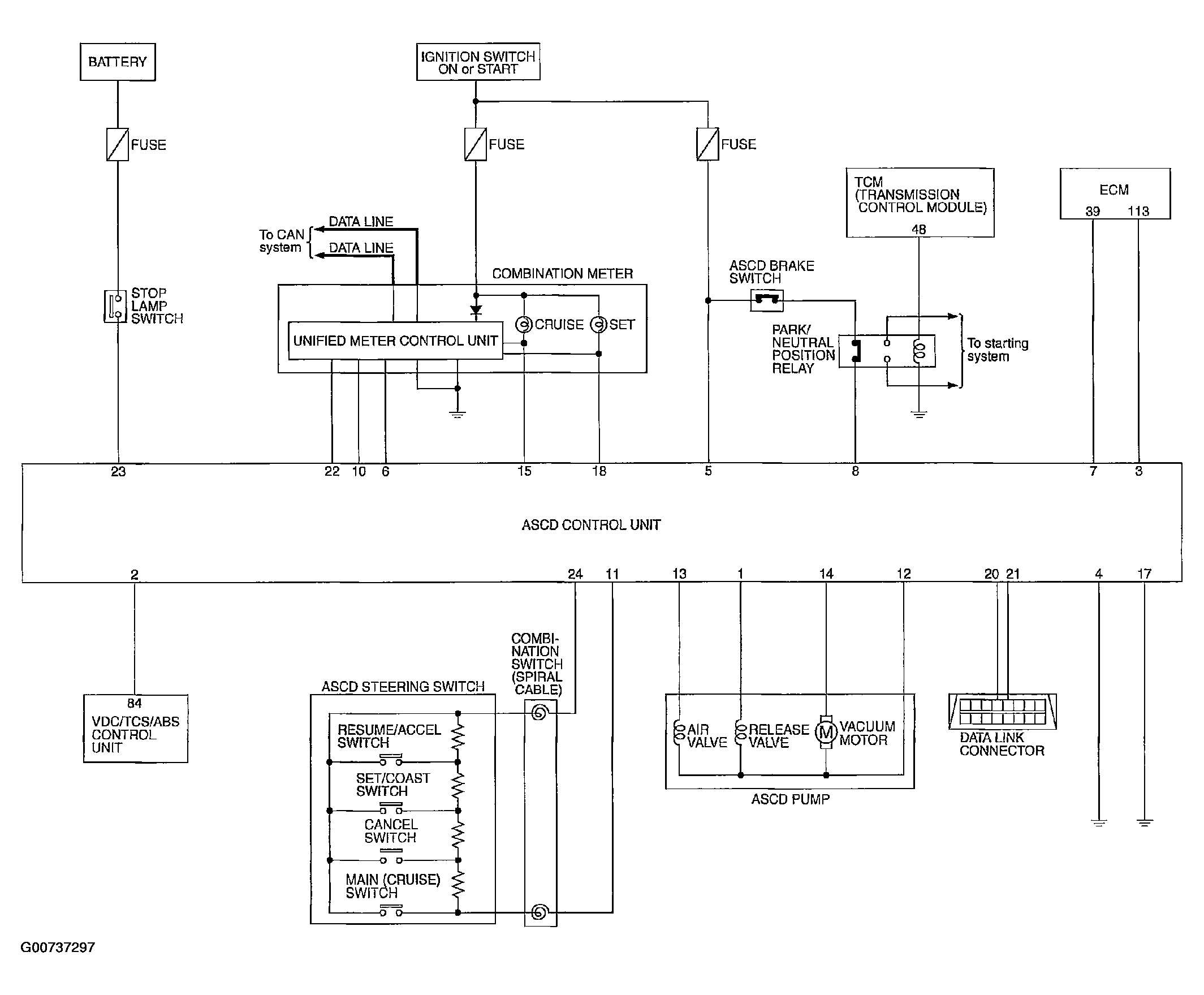

Fig 1: ASCD Wiring Schematic
G00737297Courtesy of NISSAN MOTOR CO., U.S.A.
