Automatic Speed Control Device (ASCD): Schematic

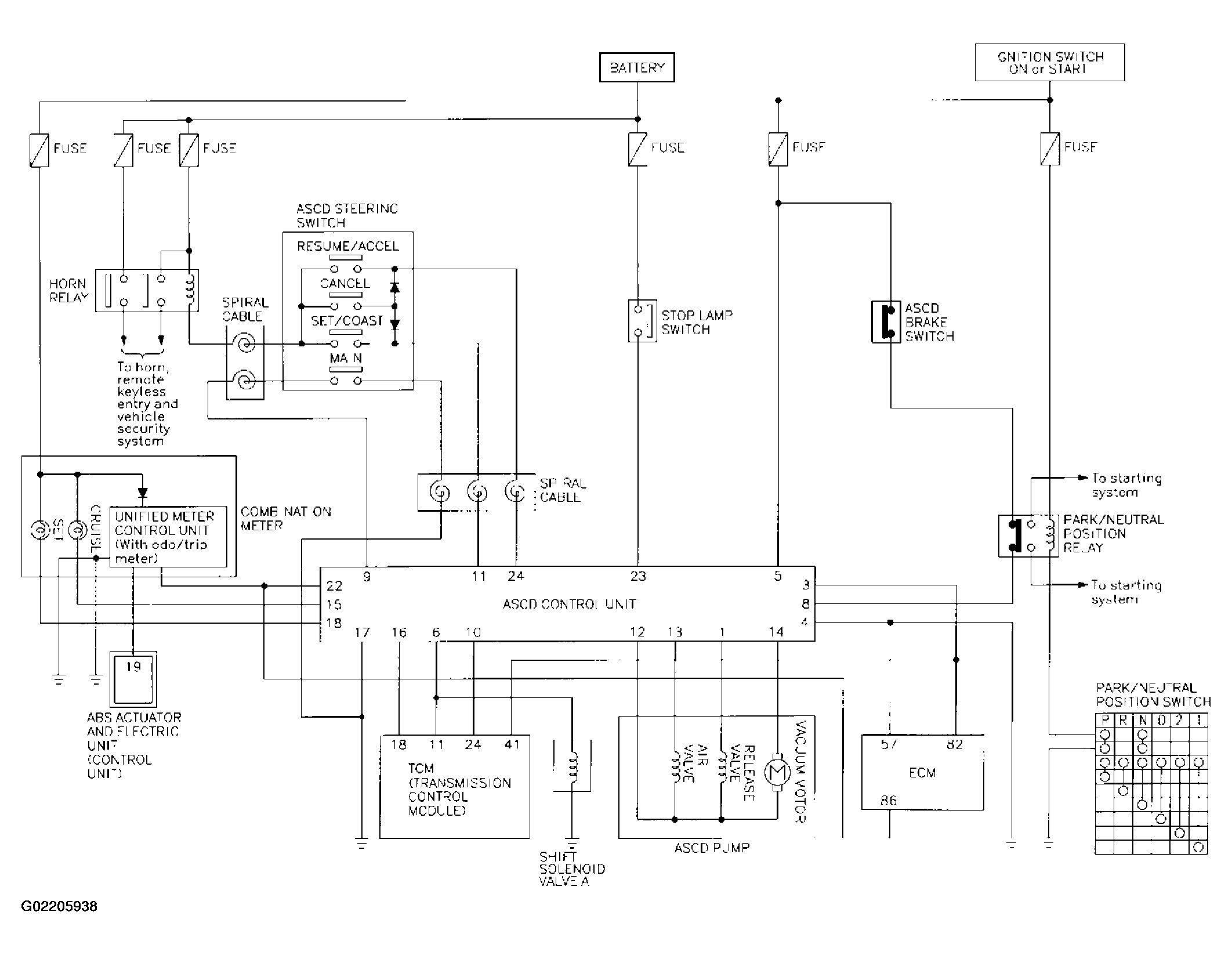

Fig 1: Automatic Speed Control Device Schematic Diagram
G02205938Courtesy of NISSAN MOTOR CO., U.S.A.
