Component Inspection: Condenser
- Turn ignition switch OFF.
- Disconnect condenser harness connector.
- Check resistance between condenser terminals as 1 and 2.

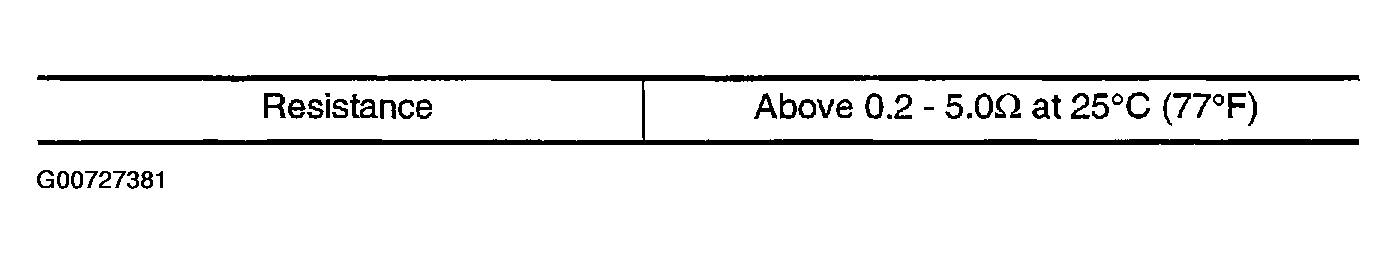

Resistance above .2-5ohm at 77° F (25° C).
Courtesy of NISSAN MOTOR CO., U.S.A.
