Relationship Between MIL, DTC, 1ST Trip DTC And Driving Patterns Except For Misfire (Exhaust Quality Deterioration) , Fuel Injection System: Notes

WARNING: This page is about a different car, the 2004 Infiniti FX45. However, it is still accessible from the selected car via links, so may be relevant.

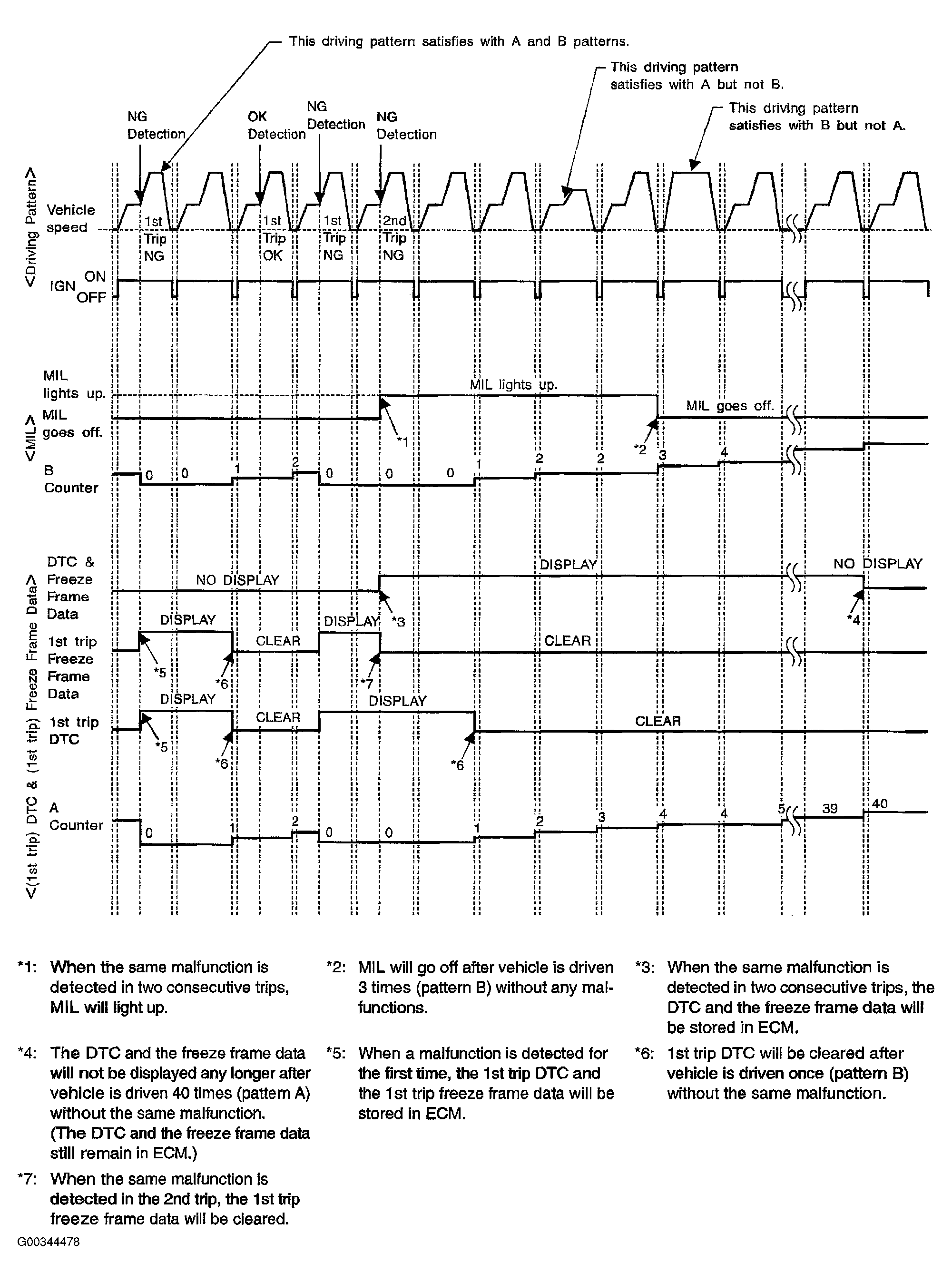

Fig 1: Graphing Driving Pattern, MIL & DTC Freeze Frame Types (Except Misfire)
G00344478Courtesy of NISSAN MOTOR CO., U.S.A.
