Terminals And Reference Value For IPDM E/R

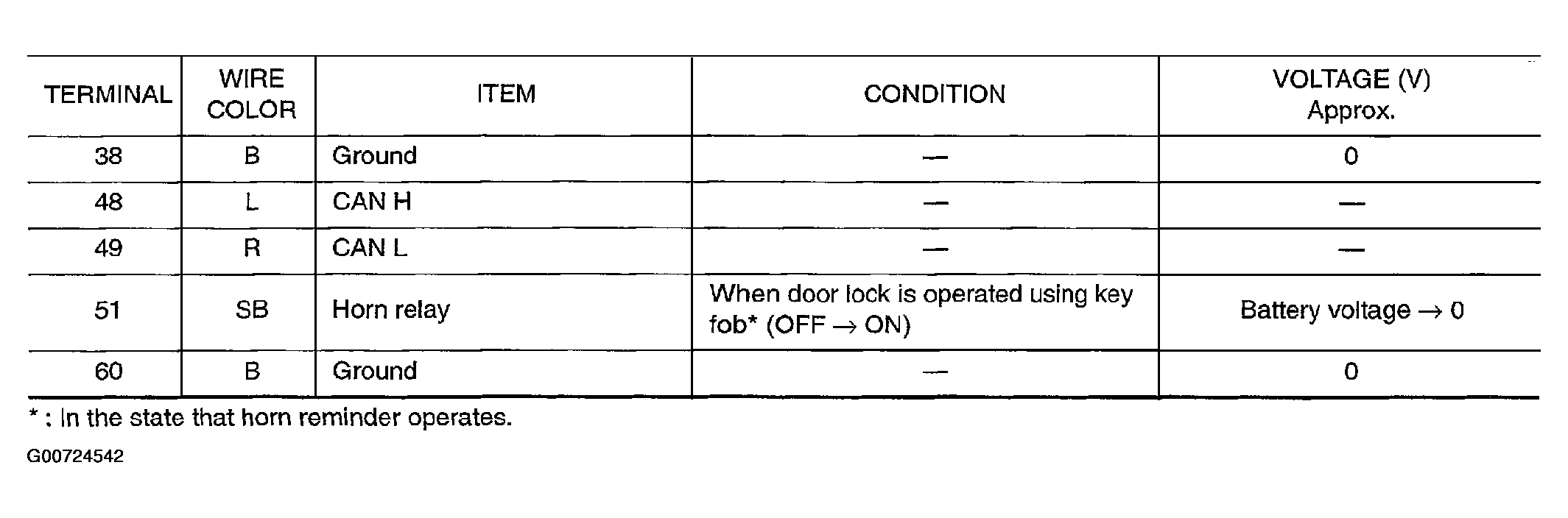

Fig 1: Terminals And Reference Value Table For IPDM E/R
G00724542Courtesy of NISSAN MOTOR CO., U.S.A.
