BCM (Body Control Module): Schematic

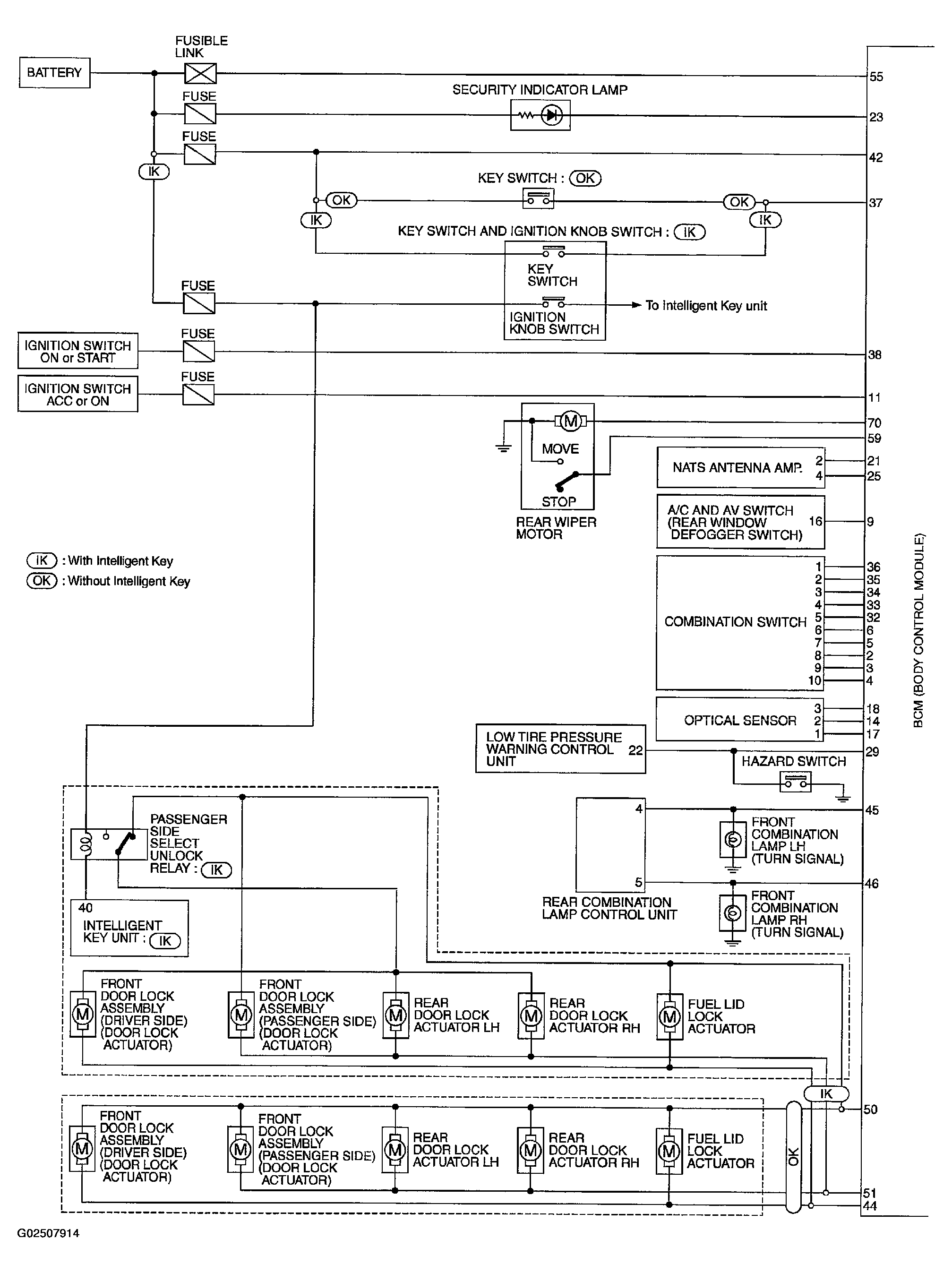

Fig 1: Schematic BCM (1 Of 2)
G02507914Courtesy of NISSAN MOTOR CO., U.S.A.

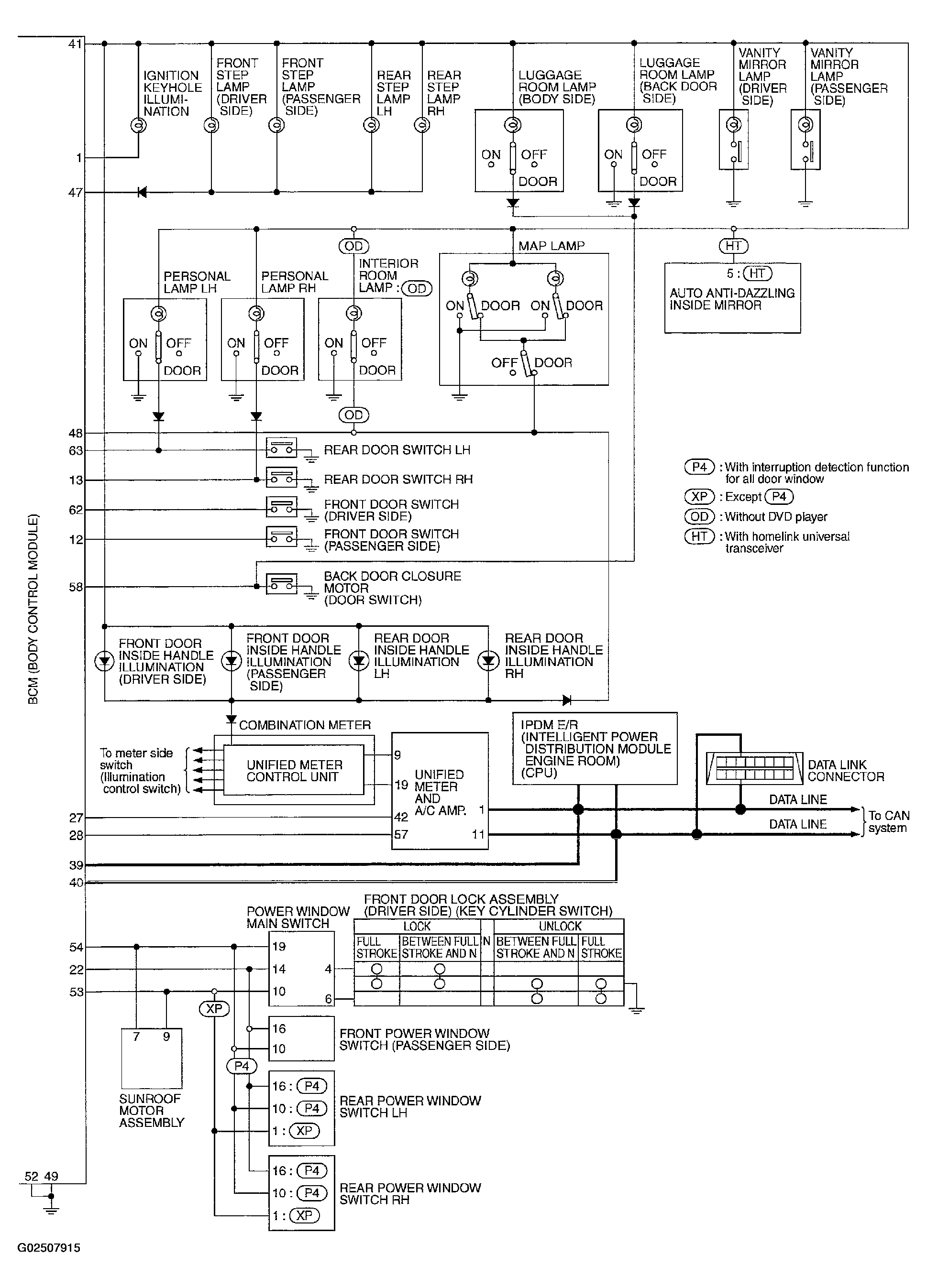

Fig 2: Schematic BCM (2 Of 2)
G02507915Courtesy of NISSAN MOTOR CO., U.S.A.
