ASCD Indicator: Wiring Diagram

NOTE: For system wiring diagrams, see SYSTEM WIRING DIAGRAMS .

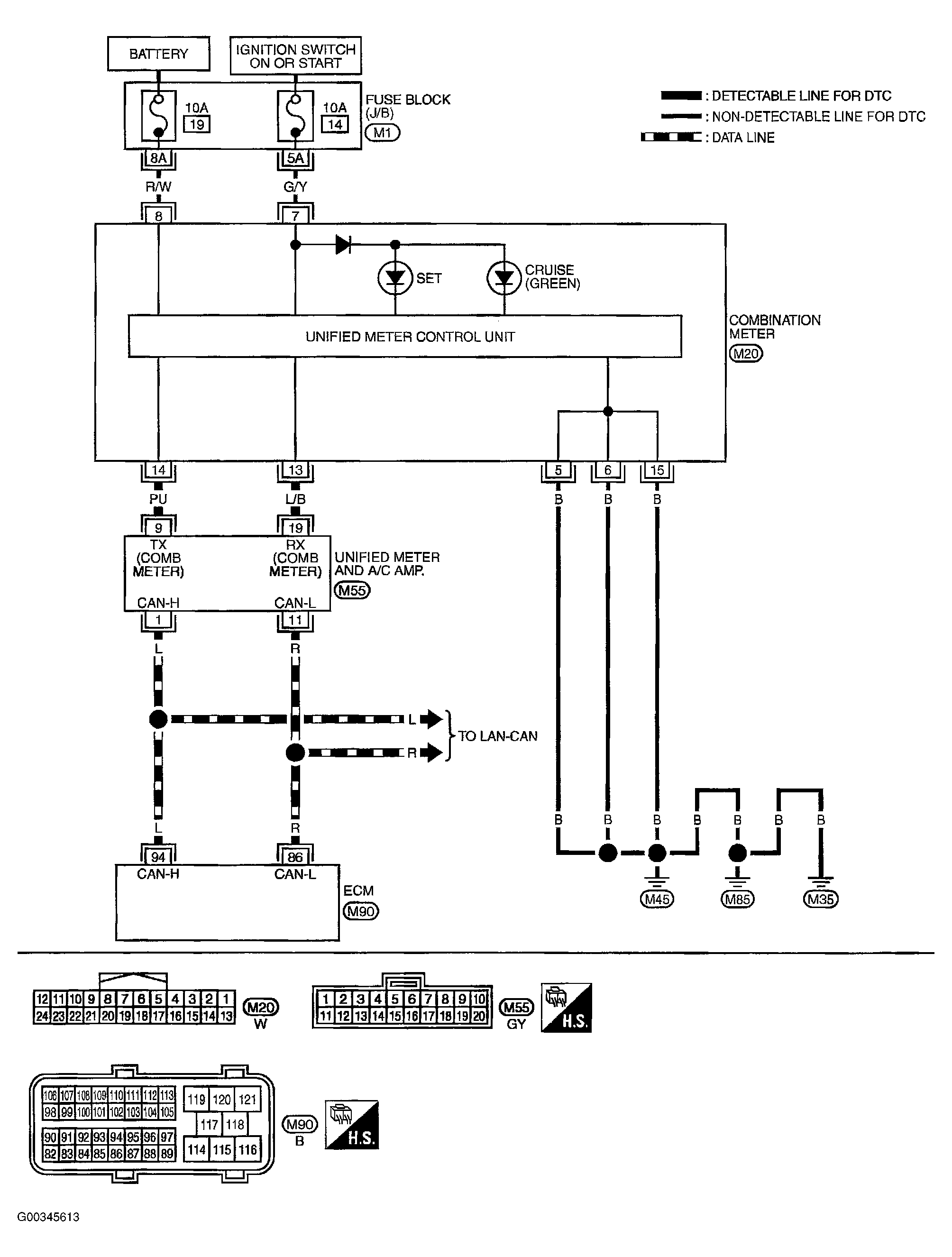

Fig 1: Combination Meter Circuit
G00345613Courtesy of NISSAN MOTOR CO., U.S.A.
