Component Description

When the brake pedal is depressed, ICC brake switch is turned OFF and stop lamp switch is turned ON. ECM detects the state of the brake pedal by this input of two kinds (ON/OFF signal).

Refer to DESCRIPTION for the ICC function.

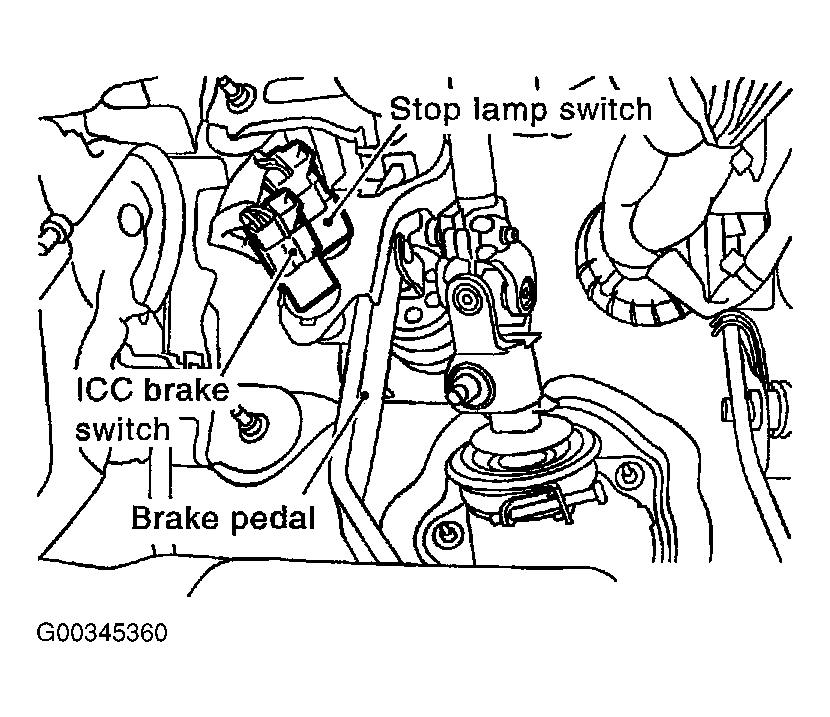

Fig 1: Locating ICC Brake & Stop Lamp Switch
G00345360Courtesy of NISSAN MOTOR CO., U.S.A.
