ICC Brake Hold Relay

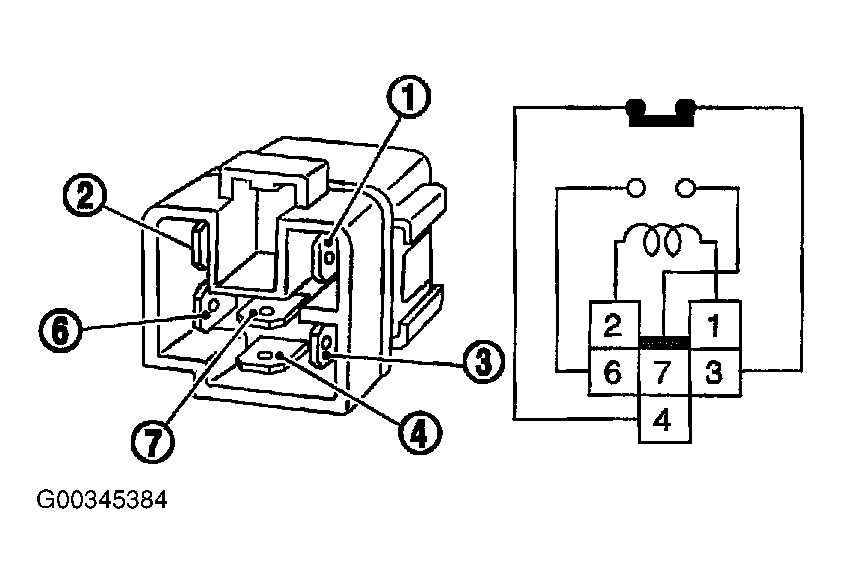

  1. Apply 12V direct current between ICC brake hold relay terminals 1 and 2.

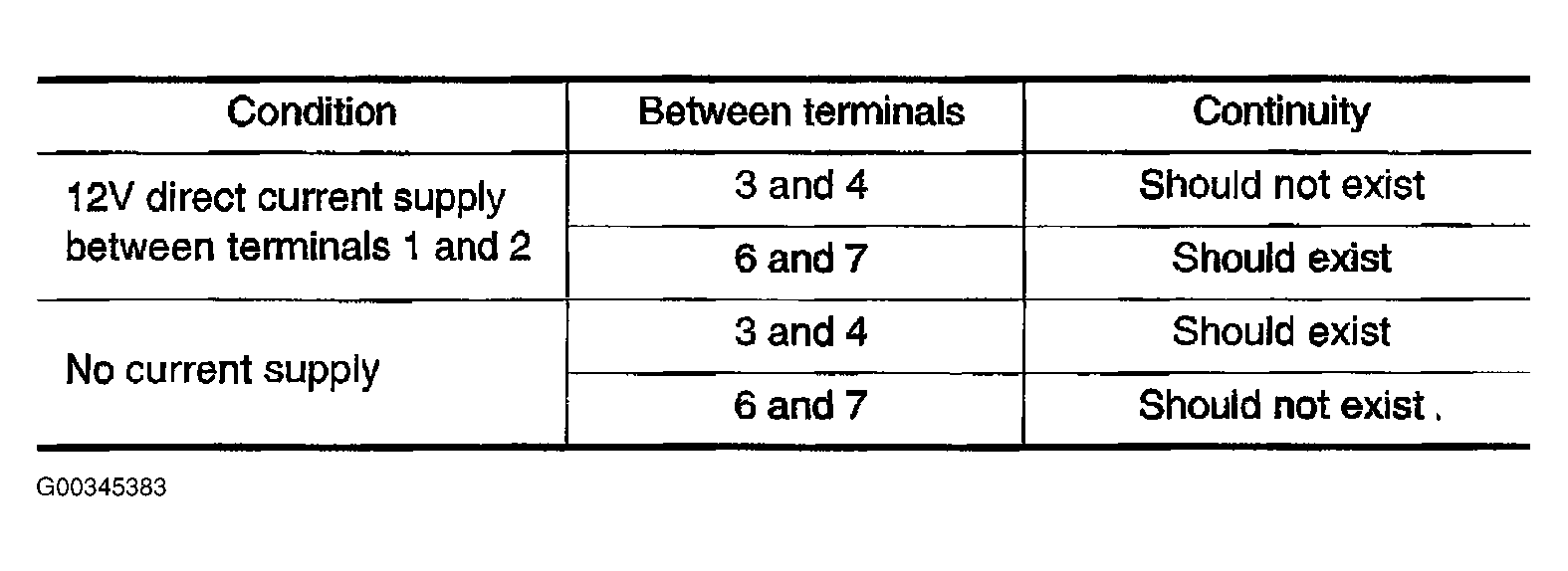

  2. Check continuity between relay terminals 3 and 4, 6 and 7 under the following conditions. See Figure and Figure .
  3. If NG, replace ICC brake hold relay.
