Removal And Installation: Installation

  1. Set key interlock cable to key cylinder and install holder.
  2. Clamp key interlock cable and fix to key interlock cable with band.
  3. Turn ignition key to lock position.
  4. Set selector lever to P position.

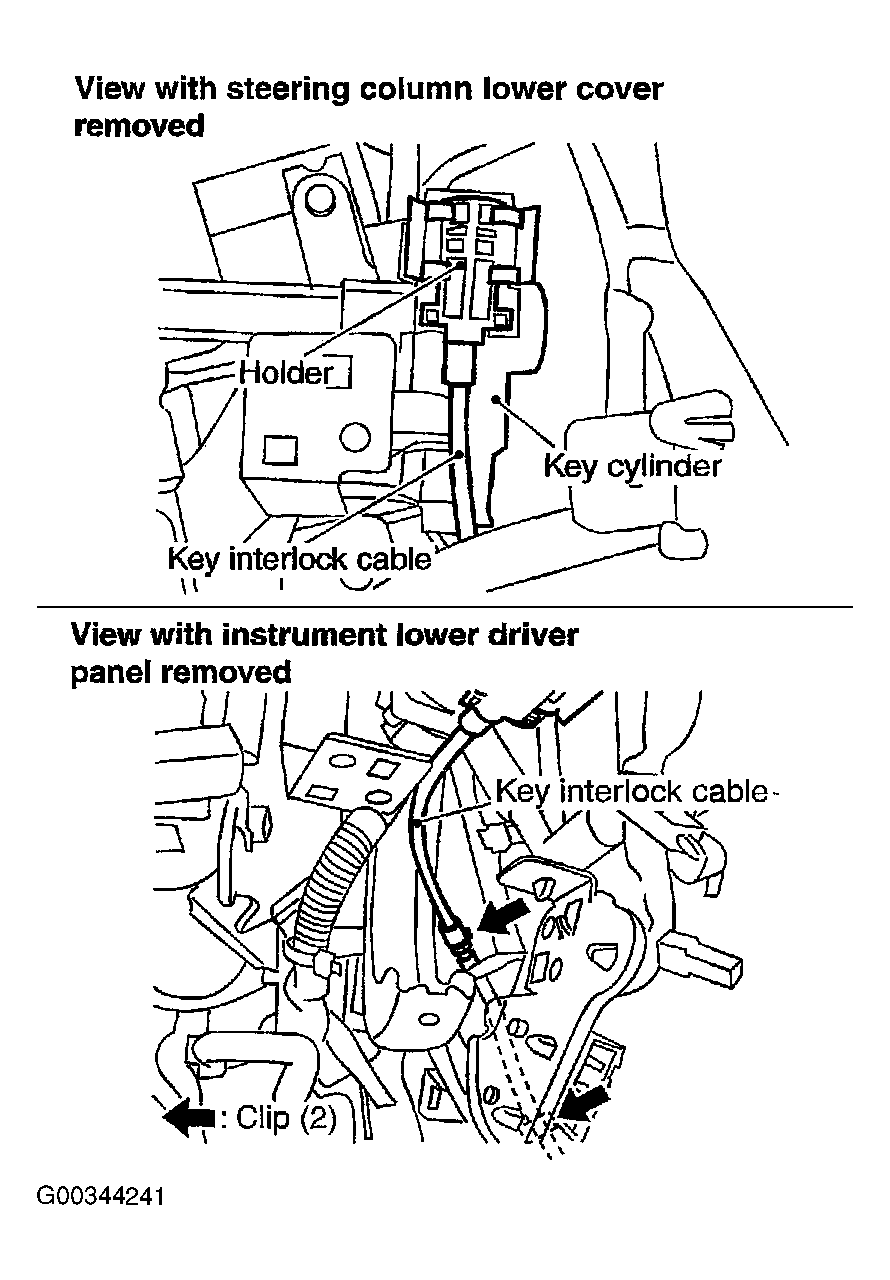

    Fig 1: Installation of Key Interlock Cable (1 Of 2)
    G00344241Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Insert interlock rod into adjuster holder.
  6. Install casing cap to bracket.
  7. Move slider in order to fix adjuster holder to interlock rod.

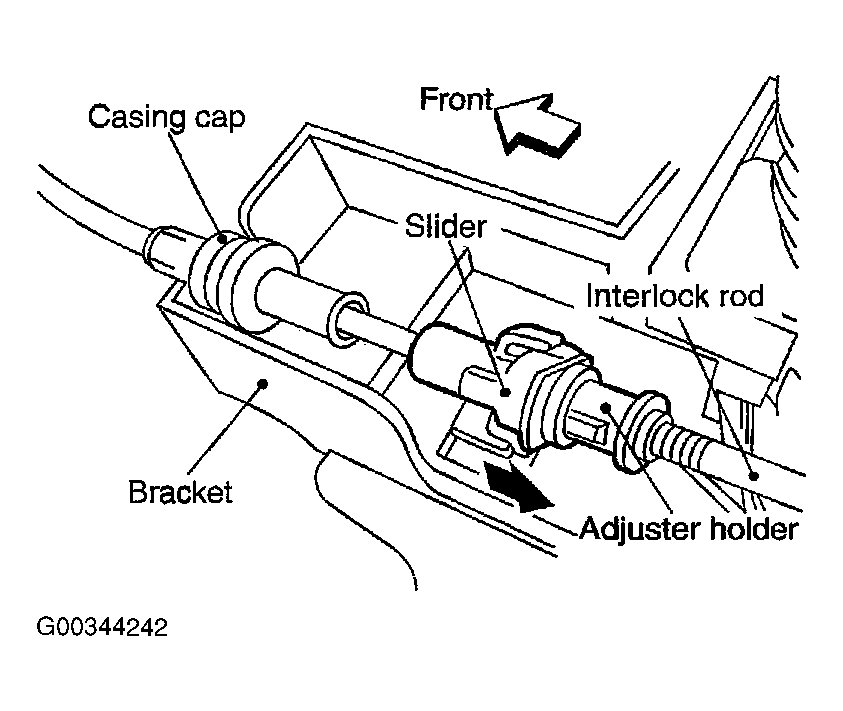

    Fig 2: Installation of Key Interlock Cable (2 Of 2)
    G00344242Courtesy of NISSAN MOTOR CO., U.S.A.
