Engine Control Component Parts Location

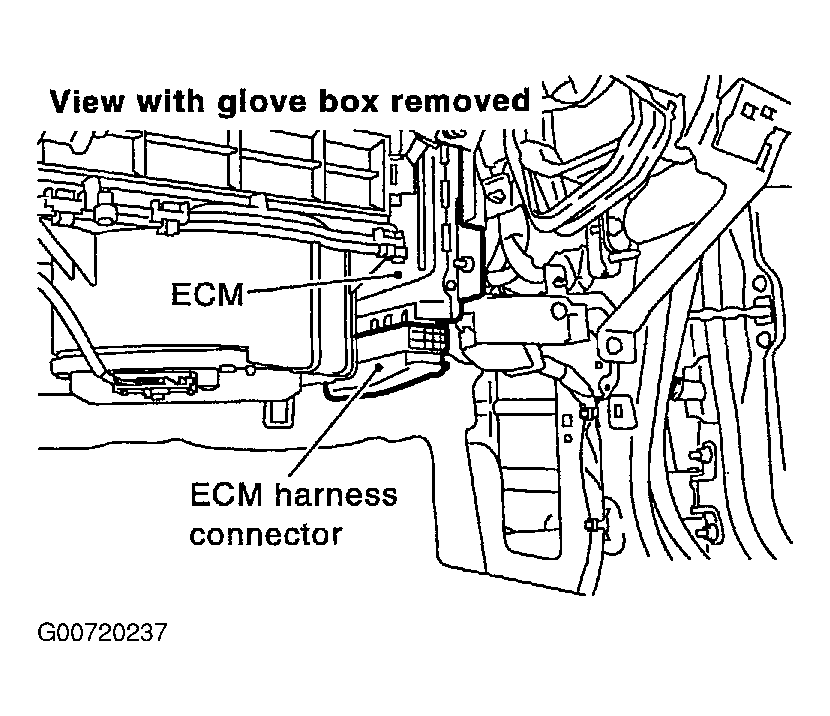

Fig 1: Engine Control Component Parts Location (1 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

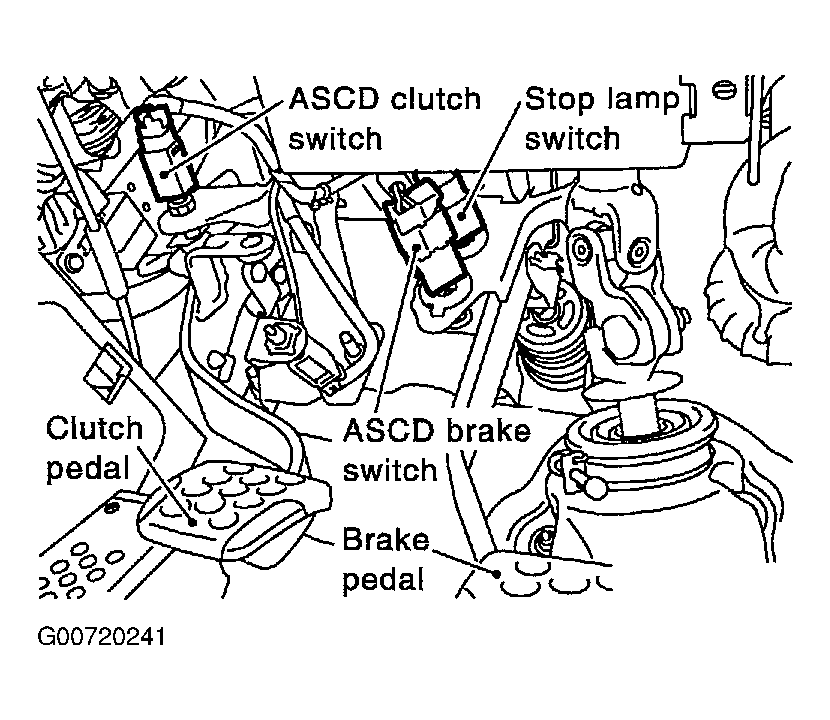

Fig 2: Engine Control Component Parts Location (2 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

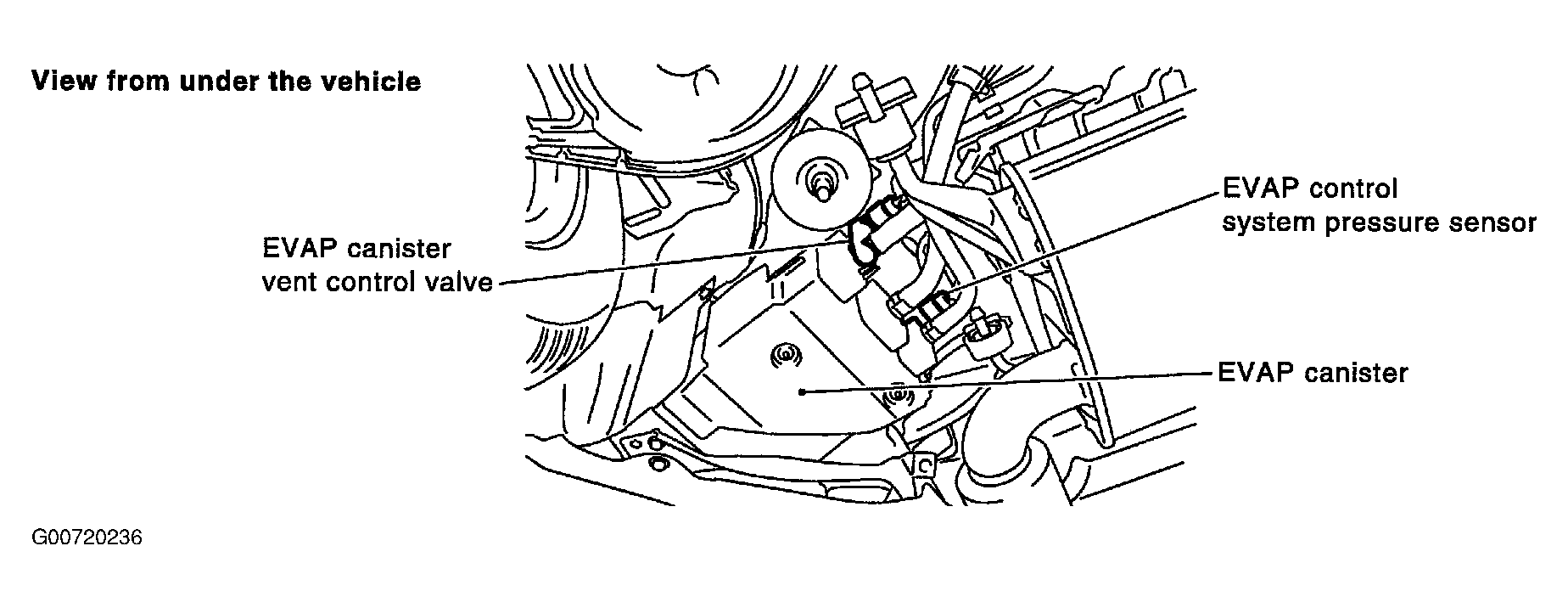

Fig 3: Engine Control Component Parts Location (3 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

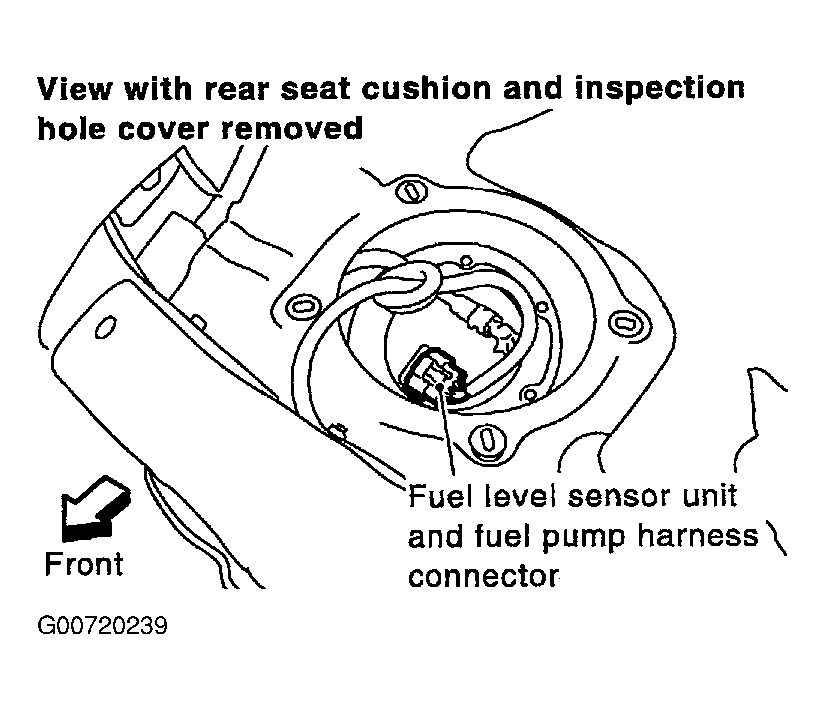

Fig 4: Engine Control Component Parts Location (4 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

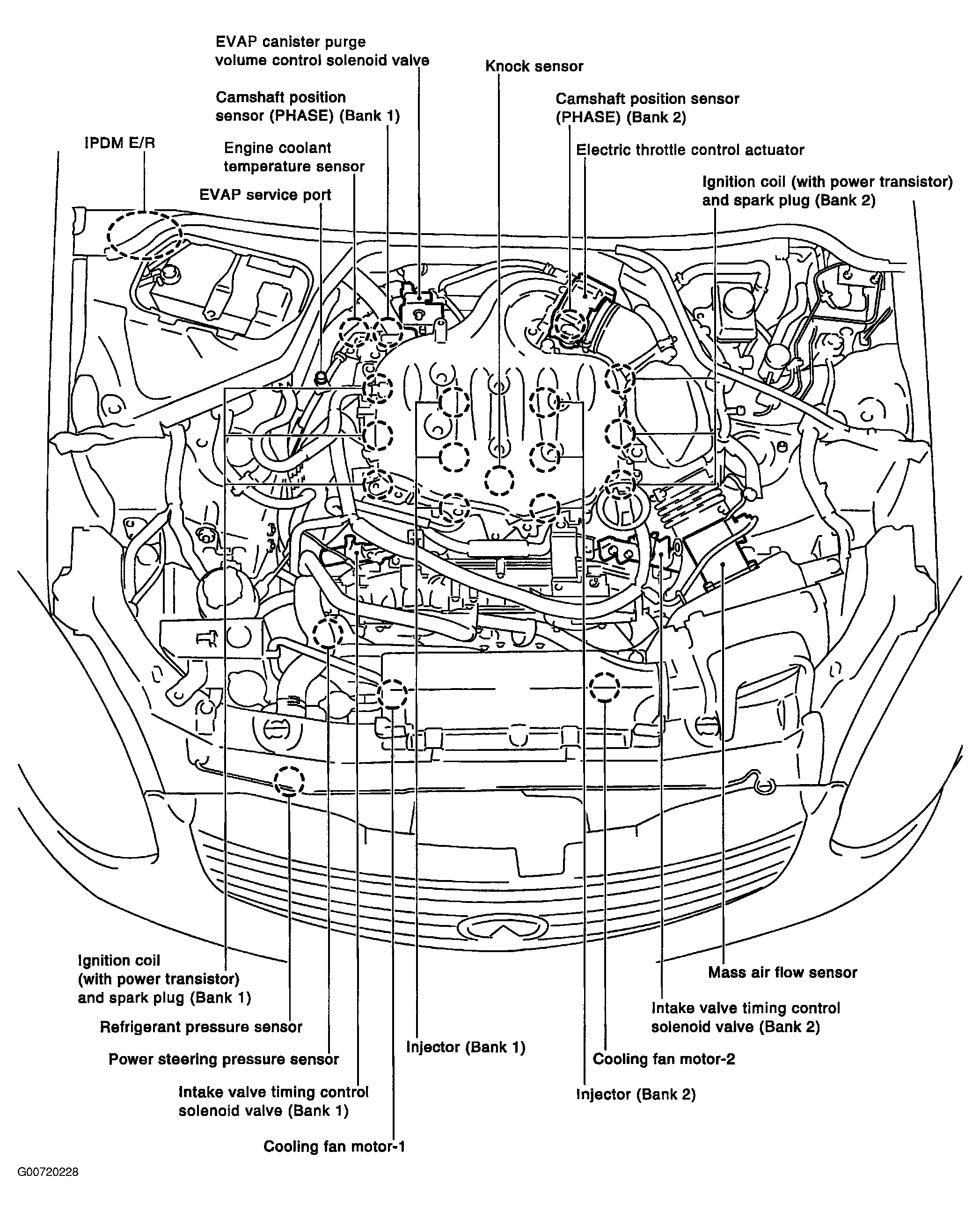

Fig 5: Engine Control Component Parts Location (5 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

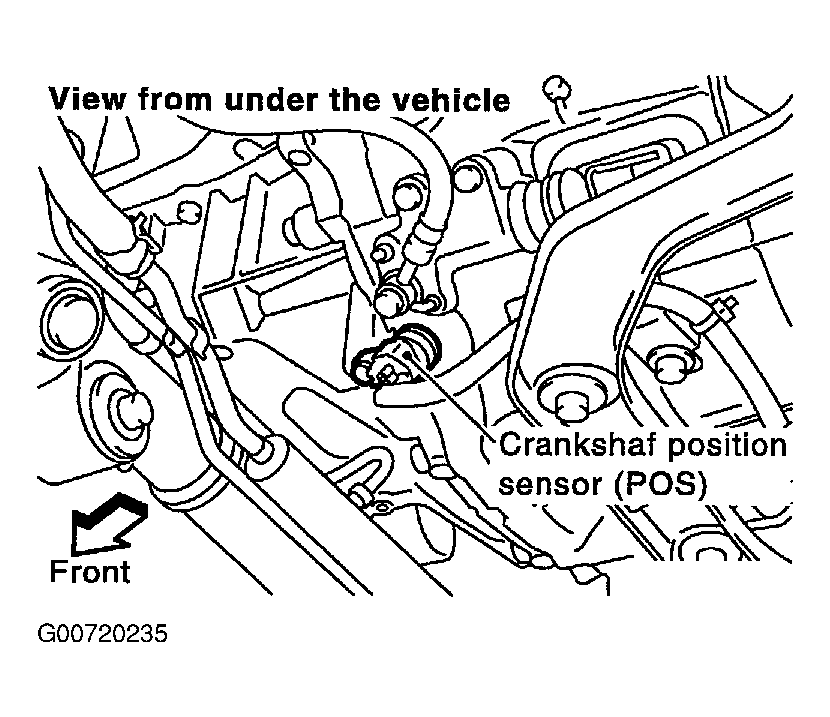

Fig 6: Engine Control Component Parts Location (6 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

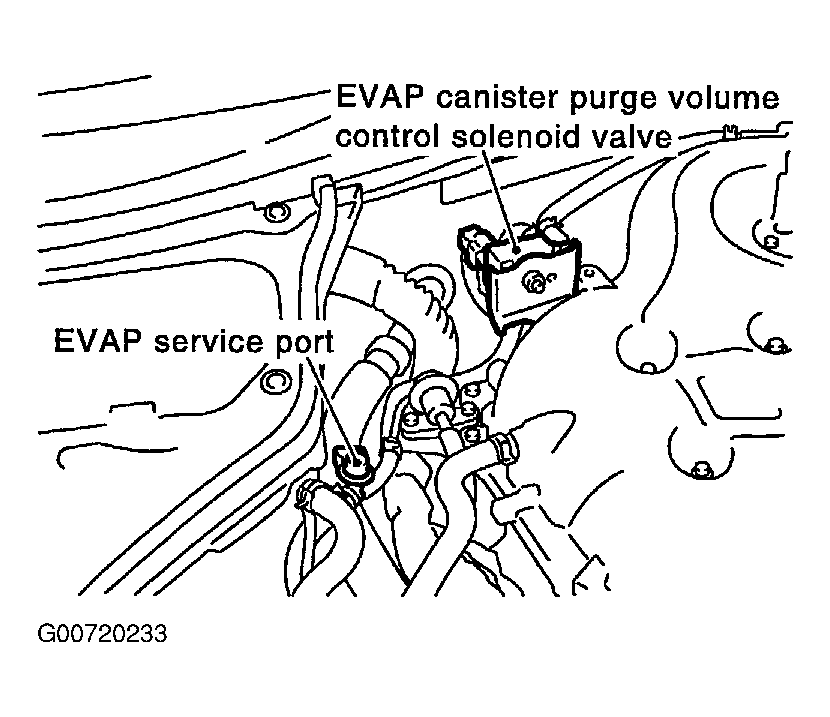

Fig 7: Engine Control Component Parts Location (7 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

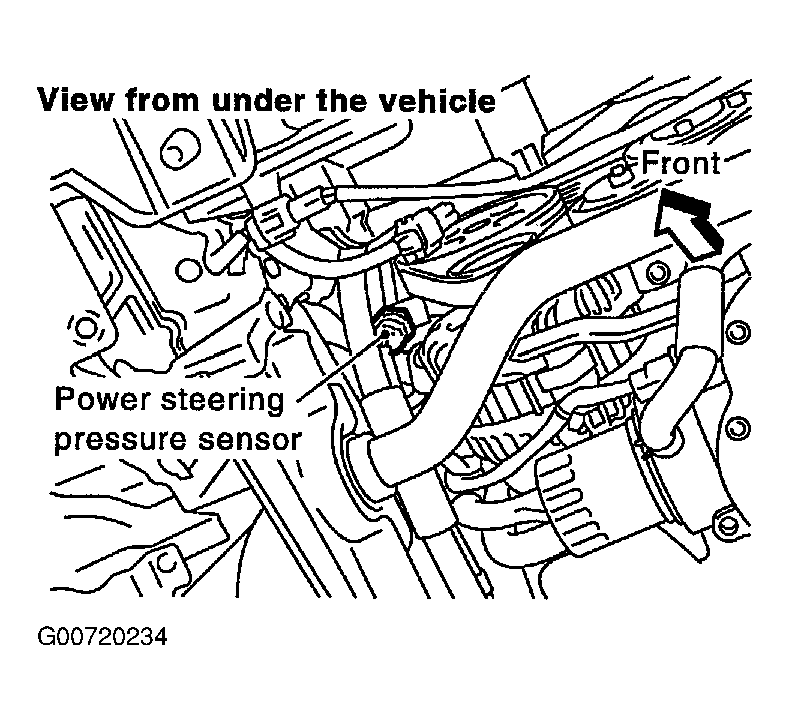

Fig 8: Engine Control Component Parts Location (8 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Engine Control Component Parts Location (9 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Engine Control Component Parts Location (10 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Engine Control Component Parts Location (11 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Engine Control Component Parts Location (12 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Engine Control Component Parts Location (13 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Engine Control Component Parts Location (14 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Engine Control Component Parts Location (15 Of 15)

Courtesy of NISSAN MOTOR CO., U.S.A.
