IPDM E/R (Intelligent Power Distribution Module Engine Room): Schematic

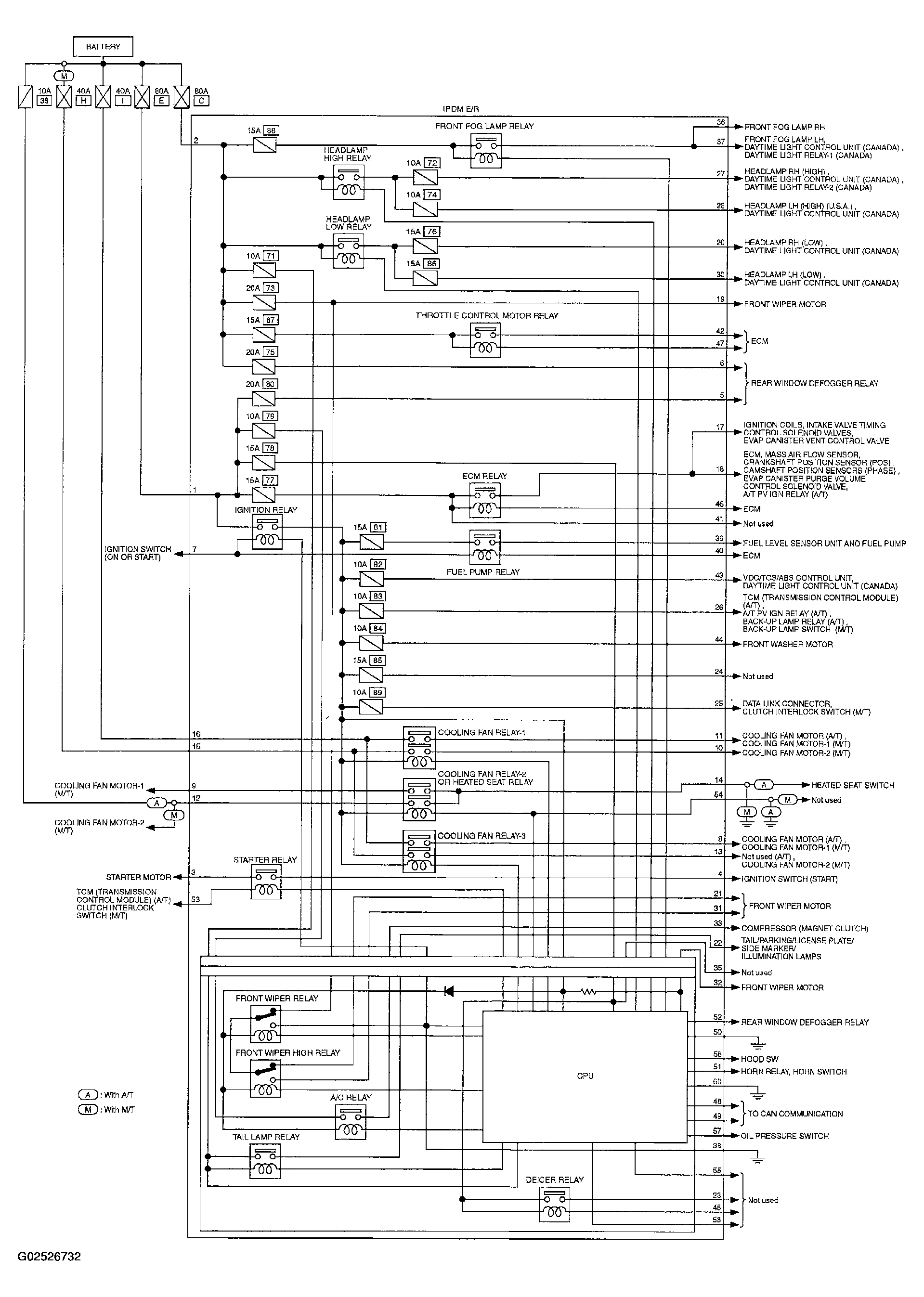

Fig 1: Schematic
G02526732Courtesy of NISSAN MOTOR CO., U.S.A.
