Terminal And Reference Value For Power Window Sub-Switch/With Front And Rear Window Anti-Pinch System

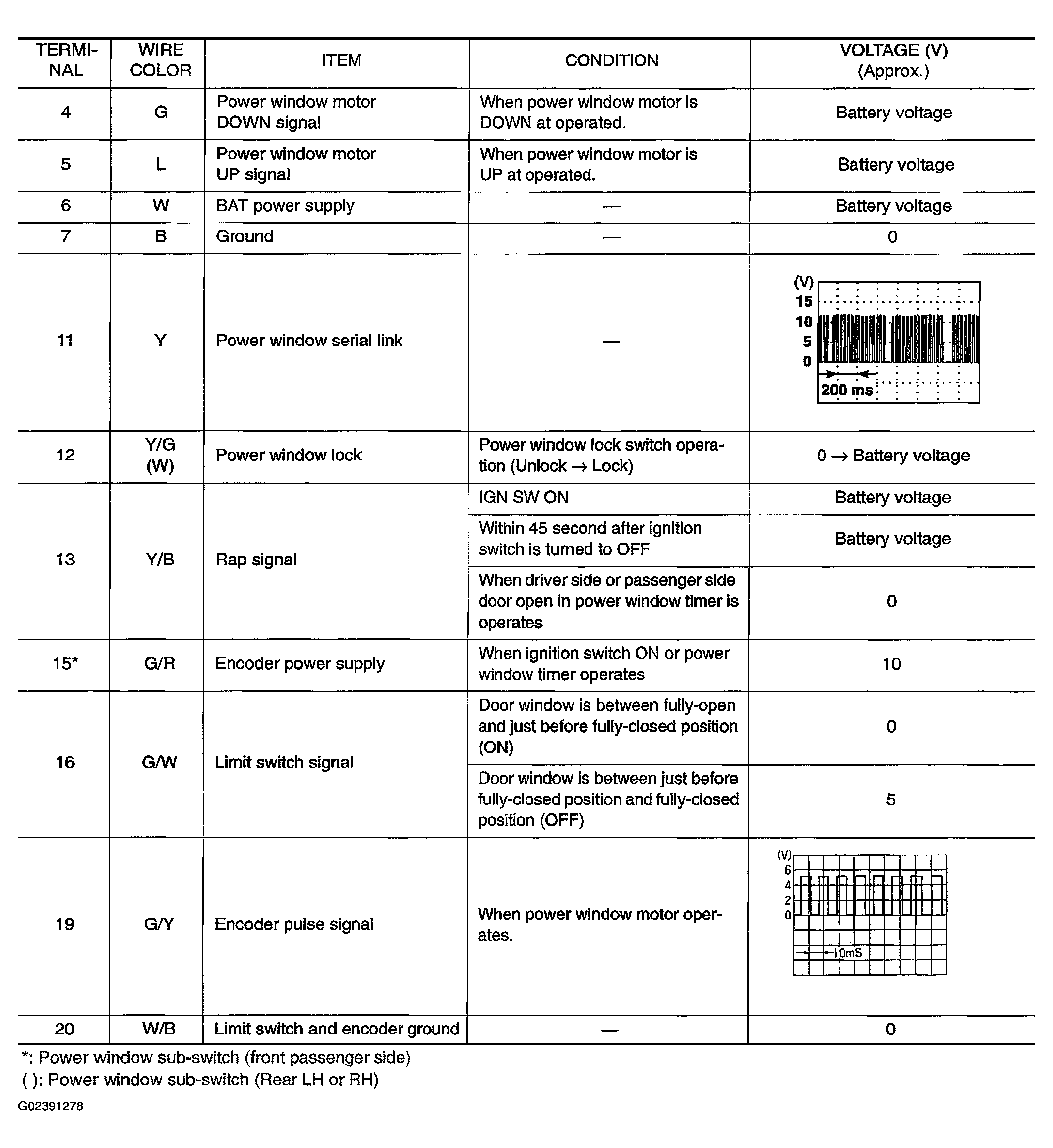

Fig 1: Power Window Sub-Switch Terminal And Reference Value Table - With Front And Rear Power Window Anti-Pinch

Courtesy of NISSAN MOTOR CO., U.S.A.
