Inspection In Auto Active Test Mode: Notes
When auto active test mode is actuated, the following eight steps are repeated three times.

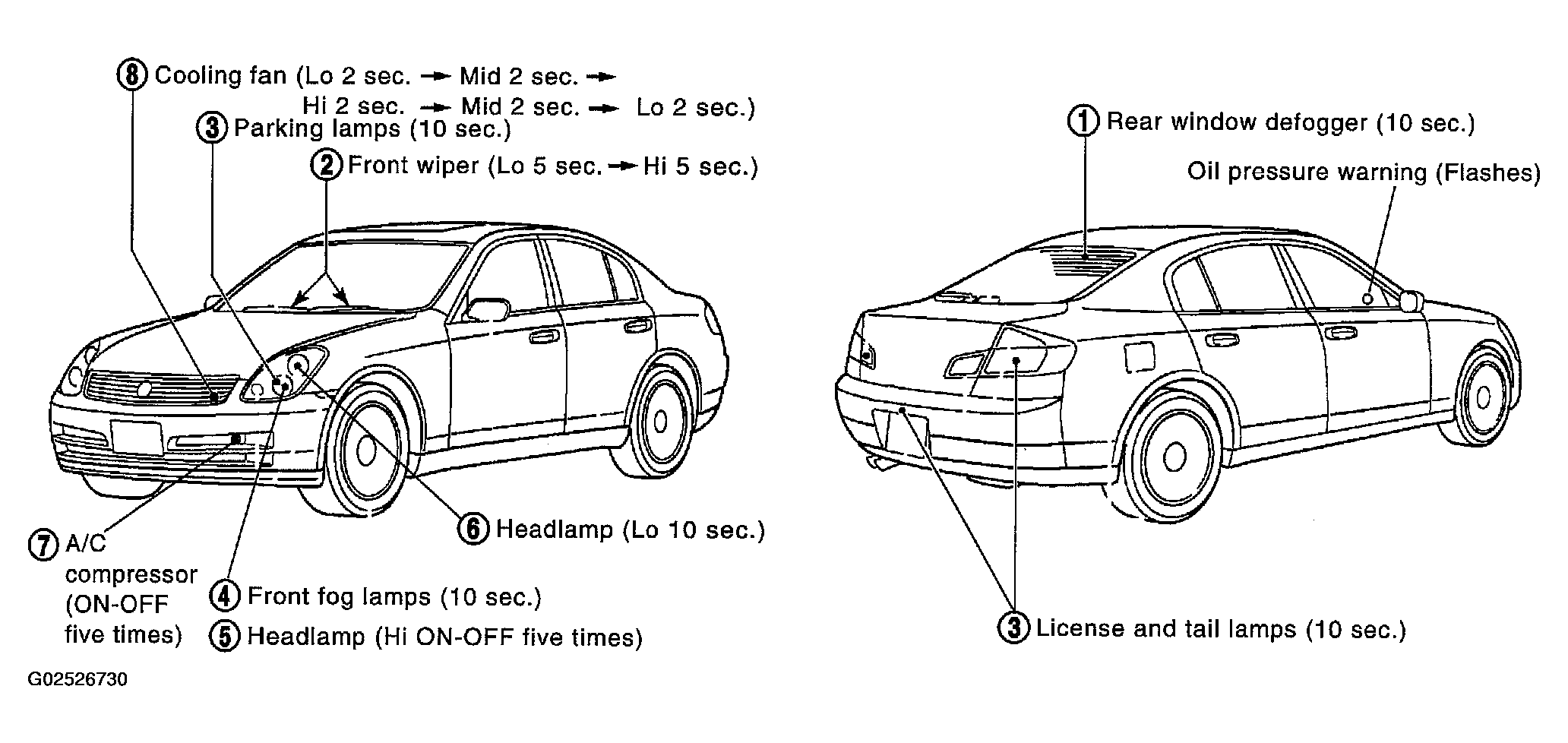

Fig 1: Inspection In Auto Active Test Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
