2004 - Automatic Transmission - R&I
>>
Shift Control System
>>
Control Device Removal And Installation
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Control Device Removal And Installation: Notes

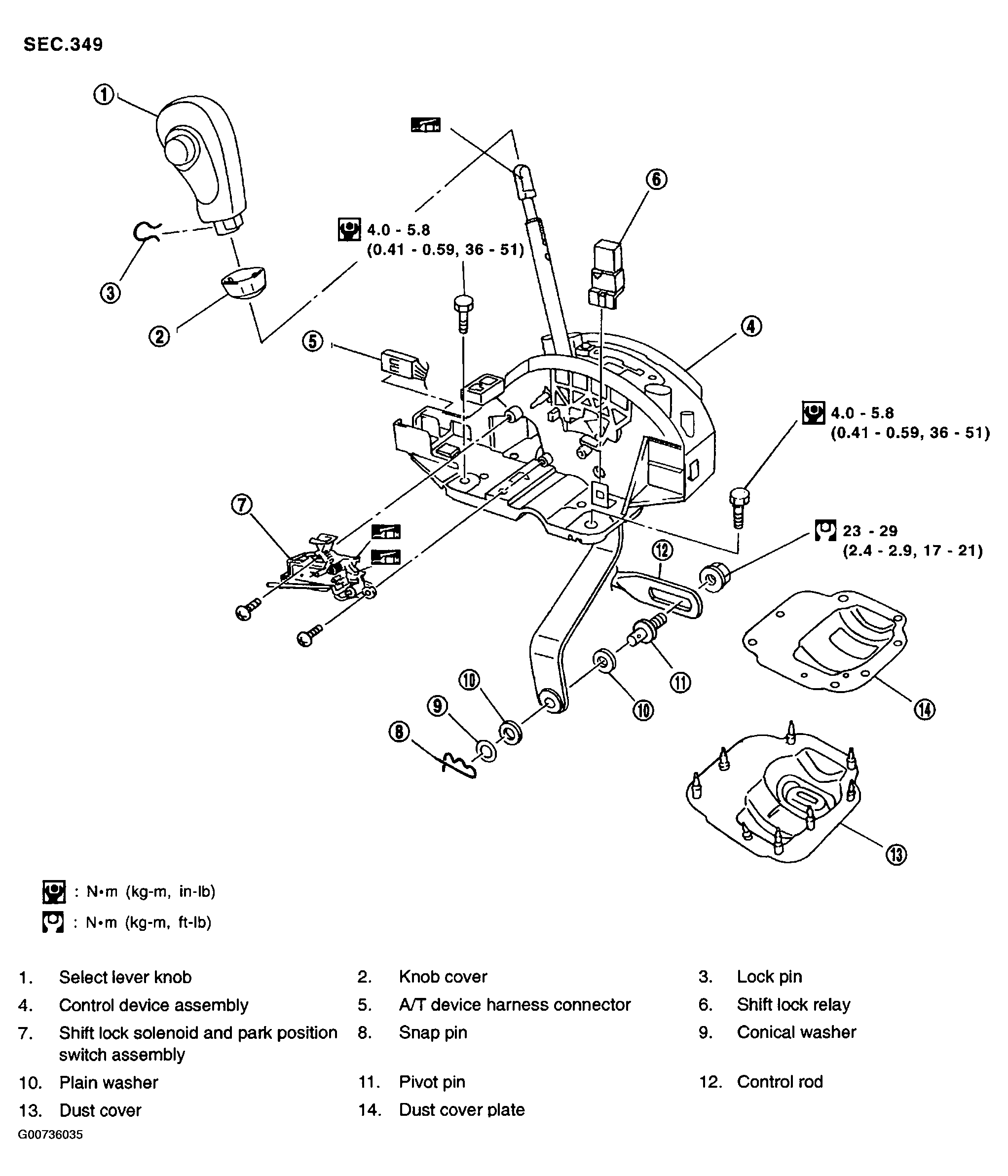

Fig 1: Control Device Removal and Installation
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
